mxr Timmy Overdrive Quick Start Manual

Download this manual

CSP027

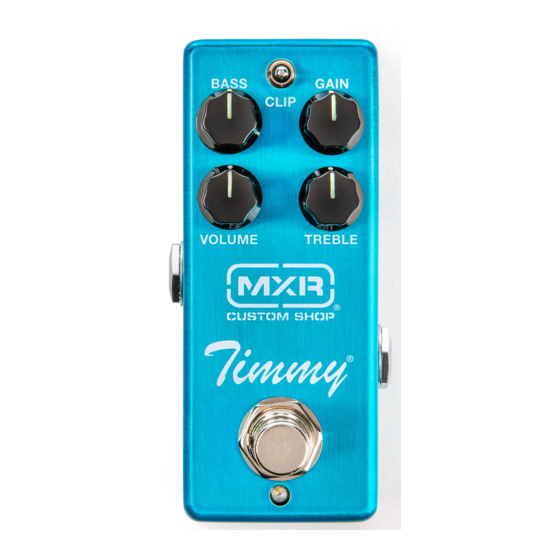

Timmy Overdrive

The Timmy Overdrive provides a versatile range

of overdrive tones that enhance the natural sound

of your guitar and amp setup. With three different

clipping options and ingeniously configured Bass

and Treble controls, this pedal offers players a ton

of options to make the most of their playing and

recording experience.

jimdunlop.com/csp027

Need help?

Do you have a question about the Timmy Overdrive and is the answer not in the manual?

Page 1 CSP027 Timmy Overdrive ® The Timmy Overdrive provides a versatile range of overdrive tones that enhance the natural sound of your guitar and amp setup. With three different clipping options and ingeniously configured Bass and Treble controls, this pedal offers players a ton of options to make the most of their playing and recording experience.
Page 2 2 VOLUME knob adjusts overall volume of effect 3 BASS knob cuts low end frequencies from pre-overdrive signal 4 CLIP switch sets clipping mode GAIN knob adjusts overdrive intensity TREBLE knob cuts high end frequencies from post-overdrive signal CSP027 | Timmy Overdrive 2...
Page 3 6. Rotate GAIN knob clockwise to increase overdrive intensity or counterclockwise to decrease it. 7. Rotate BASS knob counterclockwise to reduce bass frequencies to your taste. 8. Rotate TREBLE knob counterclockwise to reduce high frequencies to your taste. CSP027 | Timmy Overdrive 3...
Page 4 Output Impedance* Ω Noise Floor* -115 dBV Gain 3 dBV to 43 dBV Bypass True Hardwire Current Draw 2.2 mA Power Supply 9 volts DC Measurements made at 1 kHz *All control at mid-position, A-weighted CSP027 | Timmy Overdrive 4...
