- Page 1 PRECISION MULTI-SPECIES WOOD MOISTURE METER USER’S MANUAL MMD8P Please read this manual carefully and thoroughly before using this product.
-
Page 2: Table Of Contents
1) Moisture close to the surface has a greater effect on a reading than moisture deep below it; and 2) At a length of 0.2 in. (5mm), the pins at the top of the MMD8P are too short to be driven deep into a hard material. -
Page 3: What's In The Package

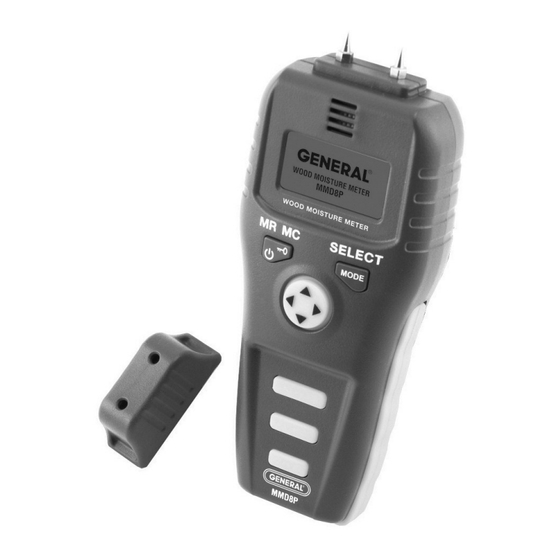

• Separate indications of remaining battery charge and low battery charge • 1 year limited warranty WHAT’S IN THE PACKAGE The MMD8P comes in a custom hard carrying case inside a white box along with a “9V” battery and this user’s manual. PRODUCT OVERVIEW The figure shows all of the controls, indicators and physical features on the front, top and back of the MMD8P. -
Page 4: Setup Instructions
Close the battery compartment by replacing its cover and snapping it shut. ADVANCED SETUP Before using the meter, General recommends that you adjust five operating and “housekeeping” parameters to your preferences. They are: 1. The Auto Power Off (APO) “time out” trigger point, and whether the function is enabled 2. -
Page 5: Operating Instructions
Following are the setting options for each of the five parameters: 1. APO: OFF, or 1 to 99 minutes of front-panel inactivity, in 1-minute increments. Be aware that by disabling the APO function, you run the risk of discharging the meter’s battery if you forget to power the meter off each time you finish using it. -
Page 6: Select A Display
• The current ambient temperature (TA.) at lower right SELECT A DISPLAY The MMD8P offers four options for displaying moisture level measurements with or without the environmental parameters (temperature and RH) that affect them. Instead of the Full Measurement Screen above, you can choose to show moisture measurements on an analog bar graph like the following. -
Page 7: Select A Species
% sign to the right of the Hygrometer Screen measured moisture value. (Display Option 4) Note: When the MMD8P is powered on following a manual or automatic (APO-triggered) shutdown, it will automatically resume operation with the last selected measurement display option. SELECT A SPECIES The MMD8P incorporates industry-standard moisture-resistance curves for 48 species of wood. -
Page 8: Making Measurements
Read the moisture level on any of the four screens described above as Display Options 1 through 4. General recommends that you check the calibration of the MMD8P prior to every measurement session. To check the calibration: 1) Select the Douglas Fir Species (Code No. 1); 2) Make sure that the Compensation Temperature is set to the default value of 70°F (see page 9);... -
Page 9: Recalling And Deleting Records
5. To exit record storage mode and advance to the View/Delete Mem screen, press the MODE button—directly under Exit. To store one or more records in automatic mode: 1. Make a measurement and view it on any of the four display screens. 2. -
Page 10: Compensating For Temperature
COMPENSATING FOR TEMPERATURE The MMD8P allows you to compensate moisture measurements for the effect of ambient temperature. This feature greatly improves the accuracy of readings. To select and set the level of temperature compensation, call up the screen shown below. To do so, press the MODE button until you see the View/Delete Mem Screen, and then press the MODE once more. -
Page 11: Operating & Maintenance Tips
Subject to certain restrictions, General will repair or replace this instrument if, after examination, the company determines it to be defective in material or workmanship. The warranty period begins on the date of purchase. -
Page 12: Return For Repair Policy
Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’ fees, expenses, or losses alleged to be a consequence of any damage due to failure of, or defect in any product including, but not limited to, any claims for loss of profits.
