- Page 1 PIN/PINLESS DEEP SENSING MOISTURE METER WITH REMOTE PROBE USER’S MANUAL MMD900 Please read this manual carefully and thoroughly before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....... . 3 – 5 Key Features ........5 What’s in the Case . -
Page 3: Introduction
2. Measuring the change in the material’s capacitance produced by the slight spreading of a local electric field generated by the meter. When the meter is powered on, two plates inside the back of the MMD900’s housing are charged with opposite polarity and pulsed at a high frequency. - Page 4 1) Moisture close to the surface has a greater effect on a reading than moisture deep below it; and 2) The pins of the MMD900 are too short to be driven deep into a hard material. The pins at the top of the meter are 15mm (0.6 in.) long and the pins on the remote probe are 10mm (0.4 in.) long.
-
Page 5: Key Features
• The 40-LED analog bar graph groups LEDs of three different colors (green, yellow and red) into low, medium and high moisture bands. Each readout (%WME or REL) can be accompanied by a beeper that can be programmed to sound in different ways in response to different moisture levels or operations. The correlations make it easy to use sight and/or sound to pinpoint areas of peak or relative wetness. -
Page 6: What's In The Case

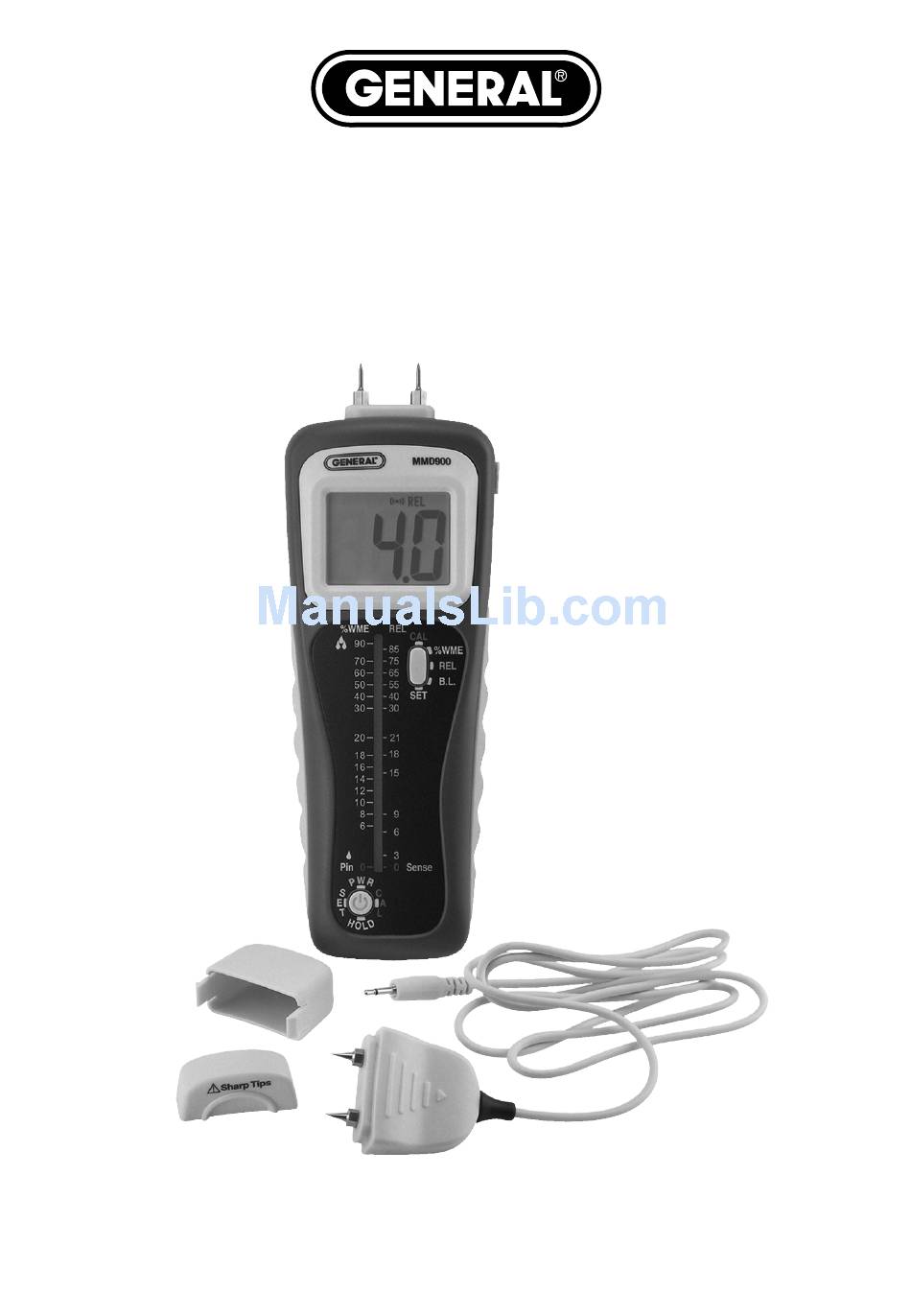

WHAT’S IN THE CASE The MMD900 comes in a custom molded plastic case along with a remote pin-type probe and cable, a 9V battery, two pairs of replacement pins and this user’s manual. PRODUCT OVERVIEW The figure shows all of the controls, indicators and physical features on the front, bottom, top, back and right side of the MMD900. -
Page 7: Setup Instructions

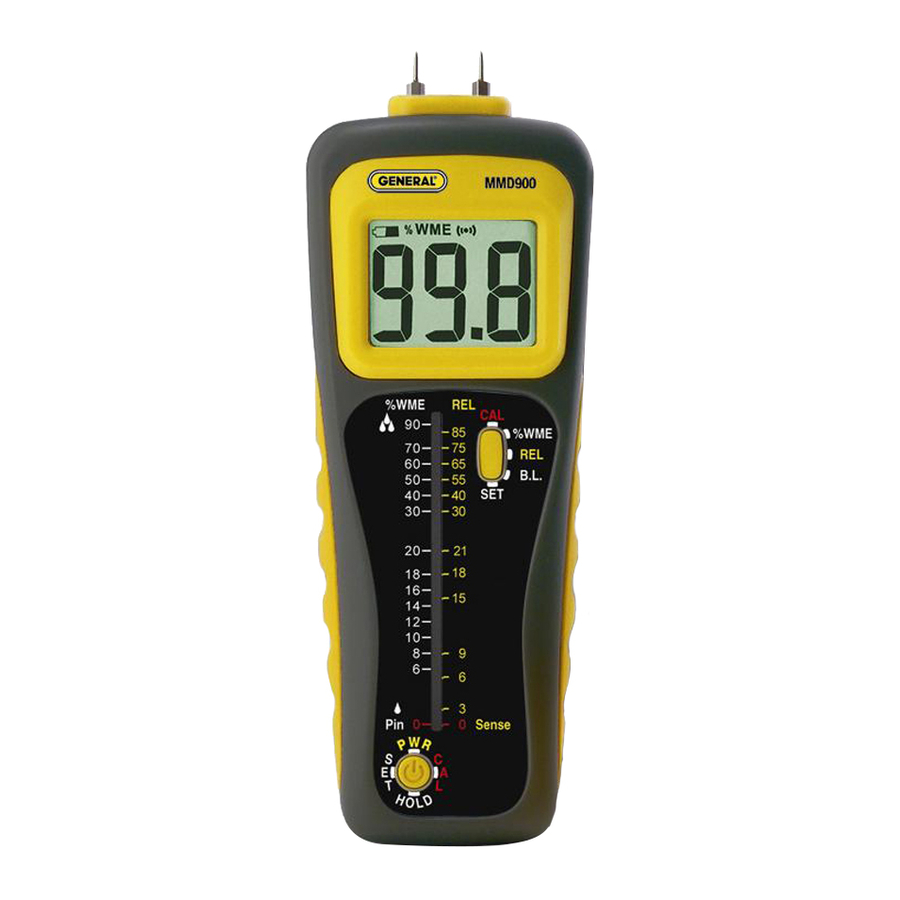

A. Calibration check holes B. Protective cover C. 15mm replaceable test pins Indicates display is locked (frozen) E. Measurement mode indicator (REL shown) Indicates beeper is enabled Indicates battery is weak H. Sensing area (on back of meter) I. Jumbo LCD display J. -
Page 8: Operating Instructions
To change the default settings for the beeper, backlight or auto power function, follow the Advanced Setup Instructions beginning on p. 10. At a minimum, General recommends changing the default for the auto power off function to “enabled”. If you leave the auto power off function disabled, you run the risk of discharging the meter’s battery if you forget to power the meter off... - Page 9 To use the remote probe, remove the small rubber yellow plug from the jack on the right side of the meter (callout P of the figure). Then insert the white plug at the end of the cable into the jack. To make a surface moisture level measurement, press the Mode button as many times as necessary until the text “%WME”...
-
Page 10: Advanced Setup Instructions
To scan a material for an area of peak wetness in either measurement mode (%WME or REL), first make sure that the beeper is enabled (indicated by icon on the top line of the LCD). If the icon is present, scan the material while paying attention to the beeper’s frequency. - Page 11 It’s important to understand that in Setup mode you have 30 seconds to confirm the setting of each Option. If you take longer than 30 seconds to confirm any setting, the MMD900 will automatically exit Setup mode and enter Measurement mode.
-
Page 12: Checking Calibration
40% ±3%. If the calibration check produces a reading higher than 43% or lower than 37%, and the meter is still under warranty, call General's Customer Service Department at 212-431-6100 to arrange to return the meter for service or... -
Page 13: Specifications
SPECIFICATIONS Measurement Ranges 0 to 99.9% WME and 0 to 99 REL Measurement Accuracy ±3% of reading + 5 digits in pin mode Length of Test Pins 15mm (0.6 in.) on top of meter; 10mm (0.4 in.) on remote probe; 10mm and 15mm (spares) Length of Remote Cable 46 in. -
Page 14: Warranty Information
This warranty does not apply to damages that General determines to be from an attempted repair by non-authorized personnel or misuse, alterations, normal wear and tear, or accidental damage. The defective unit must be returned to General Tools &... -
Page 15: Return For Repair Policy
Customer Service to obtain an RGA (Return Goods Authorization) number before forwarding the unit via prepaid freight to the attention of our Service Center at this address: General Tools & Instruments 80 White Street New York, NY 10013 212-431-6100 Remember to include a copy of your proof of purchase, your return address, and your phone number and/or e-mail address. - Page 16 New York, NY 10013-3567 PHONE (212) 431-6100 FAX (212) 431-6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com MMD900 User’s Manual Specifications subject to change without notice ©2011 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN#MMD900 7/26/2011...
