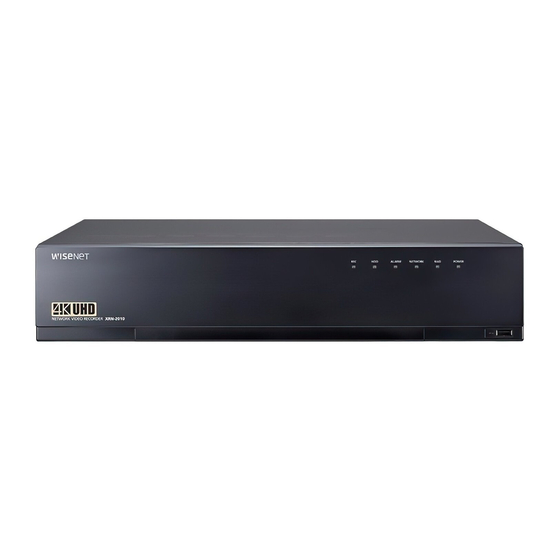

- Page 1 NETWORK VIDEO RECORDER Quick Manual XRN-1610/2010/3010/2011...
-
Page 2: Hdd Installation
HDD Installation XRN-2011 XRN-1610/2010/3010 Open a front cover and push the latch to the right After inserting one side, push and insert the other and remove side slightly Remove the screws located on the left/right side Remove the screws on the left/right side (4 screws) and on the back side first, then remove the cover. -
Page 3: Installation Wizard
[ Installation ] Wizard Set up Network • DHCP server : If the DHCP server is set to enable, an IP is automatically assigned to the camera. • Network 1 (Camera) : Connects to the camera and receives the video feed from the camera. Select the language •... -
Page 4: Package Contents
6-1. If there are *16/*32/*64 or less cameras searched, it will be automatically registered and the camera information(fps, days of recording) will be displayed. (*16 : XRN-1610, *32 : XRN-2010/2011, *64 : XRN-3010) ► choose <OK> to register automatically ► choose <Manual Setting> to adjust a framerate (go to 6-2.) - Page 5 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 http://hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free : +1.877.213.1222 Direct : +1.201.325.6920 Fax : +1.201.373.0124 www.hanwhasecurity.com Hanwha Techwin Europe...
