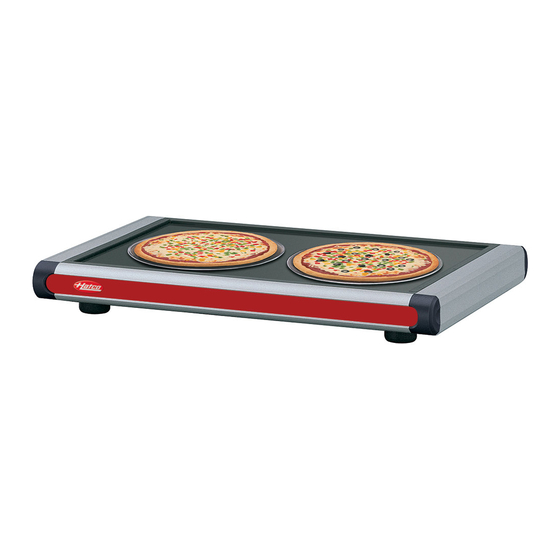

Heated Shelves and Buffet Warmers
GR2S and GR2BW Series
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.
GLO-RAy
esigner
P/N 07.04.274.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
®
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manual
contiene
manuel
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
à votre supérieur. Conservez ce manuel
pregunte
a
su
dans un endroit sûr pour pouvoir vous y
référer plus tard.
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2011 Hatco Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR2S-24 and is the answer not in the manual?

Questions and answers

Related Manuals for Hatco GR2S-24

Summary of Contents for Hatco GR2S-24

  • Page 1 à votre supérieur. Conservez ce manuel manual favor pregunte manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. référer plus tard. una localización segura para la referencia futura. © 2011 Hatco Corporation...

  • Page 2: Table Of Contents

    (specification Hours: Central Standard Time (C.S.T.) label located on the control panel on the back of the unit). (Summer Hours: June to September – Please have this information available when calling Hatco for 8:00 to 5:00 C.S.T. service assistance.

  • Page 3: Important Safety Instructions

    • Do not attempt to repair or replace a damaged power units over 36″ (914 mm) in width or weighing more than 80 cord. Cord must be replaced by Hatco, an Authorized lbs. (36 kg) either be sealed to or raised above the Hatco Service Agent, or a person with similar installation surface.

  • Page 4: Model Description

    NOTE: The specification label is located on the control panel on the back of the unit. See label for serial number and verification of unit electrical information. BS-1363 CEE 7/7 Schuko NOTE: Receptacle not supplied by Hatco. Figure 4. Plug Configurations Form No. GR2S2BWm-0511...

  • Page 5: Electrical Rating Chart - Gr2S Models

    SPECIFICATIONS Electrical Rating Chart — GR2S Models Model Voltage Watts Amps Plug Configuration Shipping Weight GR2S-24 NEma 5-15P 30 lbs. (14 kg) NEma 5-15P 30 lbs. (14 kg) CEE 7/7 Schuko 30 lbs. (14 kg) BS-1363 30 lbs. (14 kg) 220–230 (CE)

  • Page 6: Electrical Rating Chart - Gr2Bw Models

    SPECIFICATIONS Electrical Rating Chart — GR2BW Models Model Voltage Watts Amps Plug Configuration Shipping Weight GR2BW-24 NEma 5-15P 62 lbs. (28 kg) NEma 5-15P 62 lbs. (28 kg) 120/208 NEma 14-20P 62 lbs. (28 kg) 120/240 NEma 14-20P 62 lbs. (28 kg) CEE 7/7 Schuko 62 lbs.
  • Page 7 SPECIFICATIONS Electrical Rating Chart — GR2BW Models (continued) Model Voltage Watts Amps Plug Configuration Shipping Weight GR2BW-54 2290 19.1 NEma 5-20P† 99 lbs. (45 kg) 120/208 2290 10.4 NEma 14-20P 99 lbs. (45 kg) 120/240 2290 10.4 NEma 14-20P 99 lbs. (45 kg) 2250 10.2 CEE 7/7 Schuko...

  • Page 8: Dimensions - Gr2S Models

    Dimensions — GR2S Models Width Depth Height Heated Shelf Heated Shelf Footprint Footprint Model Width (D) Depth (E) Width (F) Depth (G) GR2S-24‡ 30-1/4″ 27″ 4″ 23-3/4″ 21-3/4″ 22-1/2″ 20-1/2″ (768 mm) (686 mm) (101 mm) (603 mm) (552 mm)

  • Page 9: Dimensions - Gr2Bw Models

    SPECIFICATIONS Dimensions — GR2BW Models Width Depth Height Heated Shelf Heated Shelf Footprint Footprint Model Width (D) Depth (E) Width (F) Depth (G) GR2BW-24‡ 30-1/4″ 27″ 19″ 23-3/4″ 21-3/4″ 22-1/2″ 20-1/2″ (768 mm) (686 mm) (483 mm) (603 mm) (552 mm) (572 mm) (521 mm) GR2BW-30‡...

  • Page 10: Installation

    INSTALLATION General Installing the Sneeze Guard (GR2BW only) Glo-Ray Designer Heated Shelves and Buffet Warmers are GR2BW models have sneeze guards that shield the food while ® shipped with most components pre-assembled. Care should be allowing easy access to the food product. Use the following taken when unpacking shipping carton to avoid damage to unit procedure to install a sneeze guard on each side of a unit.

  • Page 11: Operation

    OPERATION General GR2BW Models 1. move the Power ON/OFF (I/O) switch to the ON (I) position. Use the following procedures to operate Glo-Ray Designer Heated Shelves and Buffet Warmers. • The Indicator Light will light up. • The overhead heating element and display lights will WARNING energize.

  • Page 12: Maintenance

    This unit has no “user-serviceable” parts. If service is standards for food holding and display areas. For 100, required on this unit, contact an Authorized Hatco Service 120, 120/208, and 120/240 volt applications, use Hatco Agent or contact the Hatco Service Department at 800-558- P/N 02.30.43.00.

  • Page 13: Troubleshooting Guide

    Unit not hot enough. Temperature control set too low. adjust temperature control to a higher setting. Heating element(s) not working. Contact an authorized Hatco Service agent or Hatco for assistance. Temperature control not working properly. Contact an authorized Hatco Service agent or Hatco for assistance.

  • Page 14: Options And Accessories

    OPTIONS AND ACCESSORIES 4" (102 mm) Designer Legs Top Heat Control 4" (102 mm) Designer legs are available as accessories for an optional top heat control is available for models GR2BW-24 GR2S and GR2BW models. Designer legs come standard on through GR2BW-60.

  • Page 15: Limited Warranty

    Hatco’s written instructions or limiting the generality of the foregoing, SUCH WaRRaNTIES 18 months from the date of shipment from Hatco. Buyer must DO NOT COVER: Coated incandescent light bulbs, fluorescent establish the Product’s purchase date by registering the...

  • Page 16: Authorized Parts Distributors

    HATCO AuTHORIzED PARTS DISTRIBuTORS ALABAMA IOWA NEW yORK TExAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...

This manual is also suitable for:

Gr2s-30Gr2s-36Gr2s-42Gr2s-48Gr2s-54Gr2s-60 ... Show all

Table of Contents
