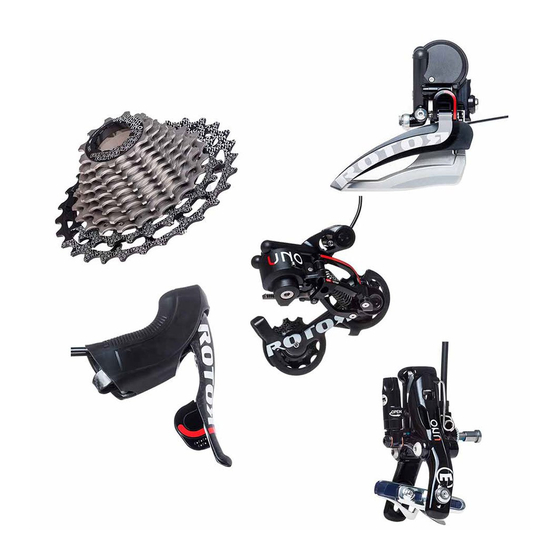

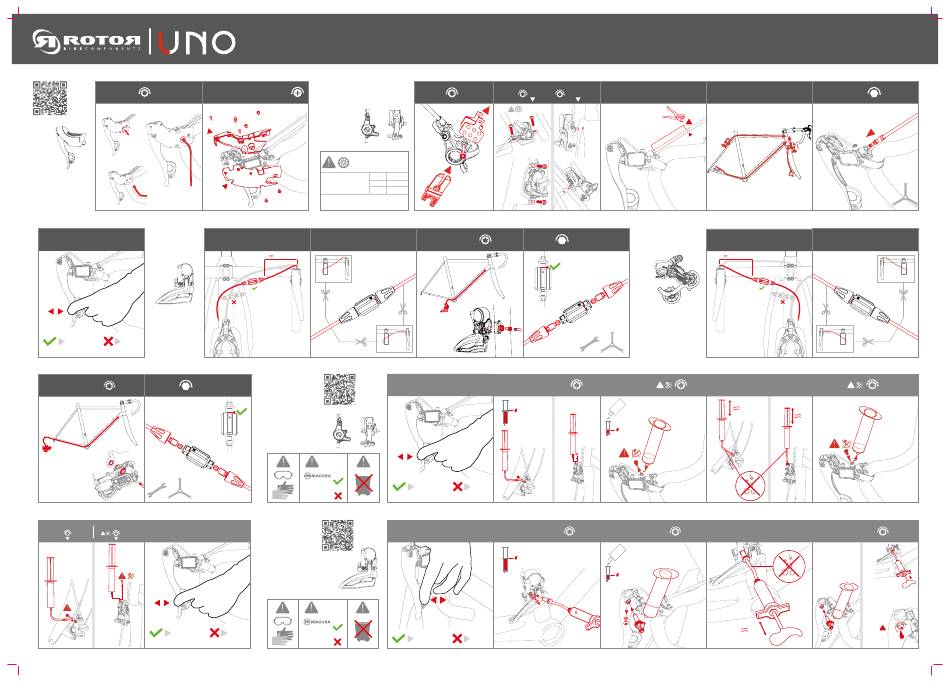

ROTOR UNO Quick Installation Manual

1.
1.1 1.2
3 mm HEX / 3 N m
1
3
Video
2
3.
2.6
3.1
10.1 5.2
4.3 4.4
T25 / 3 Nm
7 mm & 5,5 mm / 3 N m
5.6 5.7
T25 / 4 N m T25 / 0,5 N m
10.1
QUICK INSTALLATION GUIDE
2.
160 mm
Front / Rear wheel mm 160 / 160
combination inch 6" / 6"

Total weight max *

kg (lb) 105 (231)
*Maximum approved total weight=
rider + bicycle + luggage + trailer
3.2
400 mm
5.
5.1
Video
ROYAL
BLOOD
DOT
6.
6.1
Video
ROYAL
5.2
BLOOD
DOT
2.1 2.2
T25 / 2,5 N m
T25 / 6 N m 5 mm HEX / 5 N m
160 mm
3.4
3.3
T25 / 3 Nm 7 mm & 5,5 mm / 3 N m
5.2
T25
100%
10.1 5.2
6.2
TORX 10
100%
8.1 6.2
2.3 2.4
100 mm
4.
4.1
400 mm
5.3 5.4
T25
3x
25%
6.3 6.4
TORX 10
25%
3x
1/2
2.5
7 mm / 4 N m
4.2
5.5
T25 / 0,5 N m
3x
6.5
T10 / 1 N m
1 2
+
3

Rev 1.2 / Updated 03/2017
