- Page 1 UL200 FREESTANDING WOOD FIRE INSTALLATION & OPERATION INSTRUCTIONS Please leave this information with the appliance October 2014 June 2018...

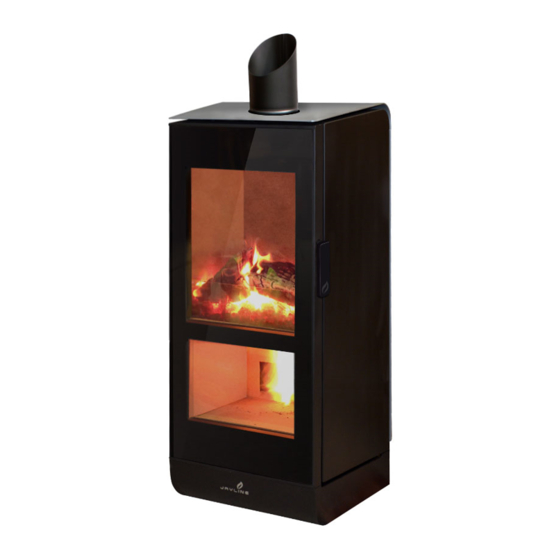

- Page 2 Congratulations on the purchase of your UL200 Ultra Low Emission Burner, by Jayline. UL200 Ultra Low Emission Burner is not a conventional wood fi re, it is a ‘wood gasifi cation stove’, developed for the optimal burning of air dried natural wood.
-
Page 3: Installation
INSTALLATION OF YOUR UL200 ULTRA LOW EMISSION BURNER Jayline recommend you use a suitably qualifi ed installation technician to install your fi re. Your dealer or heating specialist will be able to help with recommendations as well as advise on permits/consents required for the installation in your area. - Page 4 fi xed by gluing when on a concrete fl oor that may have water pipes or electrical wires present. The appliance can then be bolted to the fl oor protector with two 6mm x 50mm dynabolts or equivalent. www.jayline.co.nz page 4...
- Page 5 fl ue pipe. Example: • Side wall clearance for the Jayline FR300 is 290mm • A 12mm gapped shield on the wall with a factor of 0.40 • Calculate: 290mm x 0.40 = 116mm (This is the new sidewall minimum clearance) •...
- Page 6 CORRECT OPERATION OF YOUR UL200 WOOD FIRE Simply by burning your UL200 fi re correctly, you can improve effi ciency, reduce fuel consumption and minimise air pollution. Starting A New Fire Please note: If lighting the fi re for the fi rst time, dust the fi re, glass, trim and fl ue before fi ring to avoid particles sticking or discolouring.
-
Page 7: Lighting Instructions
(this allows for smoke to exit correctly through the fl ue). From this time forward, the UL200 can be operated much like a traditional wood fi re due to its automatic functions. -
Page 8: Important Points To Remember
It is often necessary to split some of the wood again before using it. The thickest piece size for high-effi ciency and use in the UL200 fi re should not exceed about 150mm (6 in.) across the largest dimension, or weigh no more than approximately 1.3kg. A range of smaller pieces will be needed for effective starting as described in the lighting instructions. -
Page 9: Cleaning And Maintenance
Clean all other external parts with a damp cloth. Never use alcohol or cleaning liquids. GENERAL SEASONAL INSPECTION: Jayline recommend all appliances are checked and serviced at least once every season by an NZHHA certifi ed technician. This ensures safe operation of your appliance, and the opportunity to replace any consumables should it be necessary. - Page 10 fi re. Flue pipes can deteriorate very quickly with incorrect fi ring. CONSUMABLES Some parts of your UL200 fi re are considered consumable. They are designed to be replaced as they will degrade over time. The life of the consumables will vary depending on;...
- Page 11 10-25% only. WARNINGS Below is a list of warnings to ensure effi cient and safe operation of your UL200 wood fi re: • WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHEN IT IS OPERATING.
- Page 12 fi re. We select only certain companies to act as our UL200 dealers. They must have high standards and be able to provide a total service both pre and post sale to you the customer. Therefore we have every confi dence that our dealers will be able to answer your questions or fi...
- Page 13 All claims (in the rst instance) should be directed to the store of purchase. Any repairs undertaken without the manufacturer’s authority will render the guarantee void. Water boosters must be a Jayline model speci ed with the re to be covered; this guarantee applies to the original purchaser only.
- Page 14 JAYLINE WOOD FIRE - SERVICE REGISTER Jayline recommends NZHHA registered service technicians To ensure many years of performance and safety with your Jayline Fire, we have outlined the key servicing requirements that form part of routine annual servicing. Maintenance of parts that protect your rebox will extend the life of your re, ensuring it burns clean and correctly.
