ADTRAN NetVanta Serial Network Interface Module Quick Start Manual

Quick Start Guide
SERIAL
S
PECIFICATIONS
Serial Provides V.35 or X.21 (V.11) electrical
Interface interface
Connector: 26-Pin Smart Serial (DTE)
Operating DTE Only
Mode
I I
NSTALLATION NSTRUCTIONS
1. Remove the power from the unit.
2. Slide the Network Interface Module (NIM) into the option
slot until the NIM is firmly seated against the back of the
chassis.
3. Secure the pins at both edges of the NIM.
4. Connect the cables to the associated device(s).
5. Complete installation of the base unit.
6. Restore power to the unit.
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
Quick Start Guide, 61200866L1-13B, February 2004

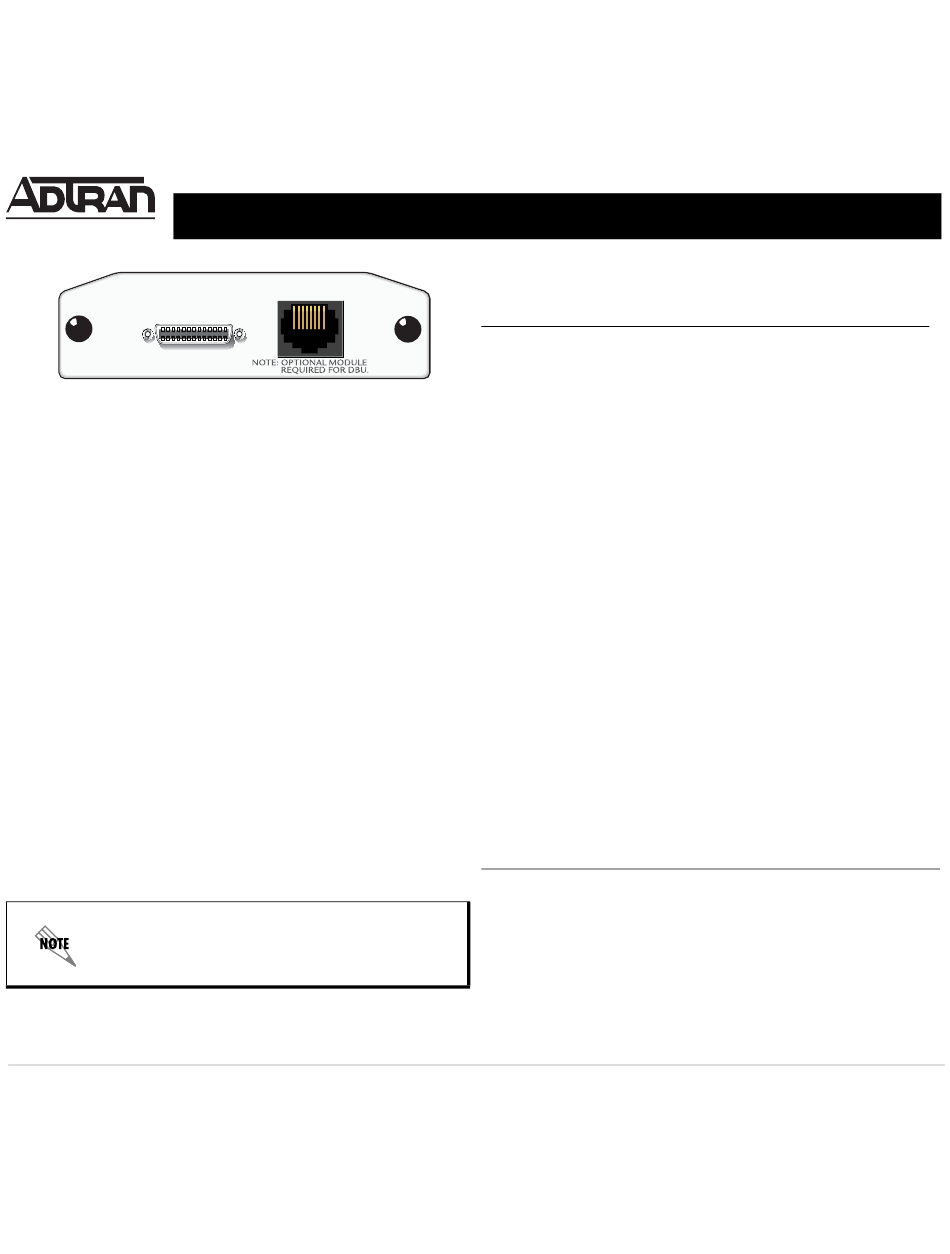

NETVANTA SERIAL NETWORK INTERFACE MODULE (NIM)
DBU
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
S N C
ERIAL ETWORK ONNECTION
Pin Name
1 TD_A
2 ETC_A
3 TCLK_A
4 RCLK_A
5 RD_A
6 DCD_A
7 DTR_A
8 RTS_A
9 RTS_B (V.11 only)
10 CTS_B (V.11 only)
11 CTS_A
12 DSR_A
13 TM_A
DBU (RJ-48C) C
ONNECTION
Pin Name
1-2 —
3 R1
4 R
5 T
6 T1
7-8 —
www.adtran.com
P/N 1200866L1
P
INOUT
Pin Name
14 TD_B
15 ETC_B
16 TCLK_B
17 RCLK_B
18 RD_B
19 Unused
20 Unused
21 Unused
22 Unused
23 Unused
24 Unused
25 Unused
26 Ground
P
INOUT
Description
Unused
Network-Ring1
Network-Ring
Network-Tip
Network-Tip1
Unused
© 2004 ADTRAN, All Rights Reserved
