7. Serial Adapter

The Serial Adapter provides the interface between the PC's RS232 serial port and the C8051F31x's in-system
debug/programming circuitry. The Serial Adapter connects to the C8051F310 C2 debug interface on the target
board using the 10-pin connector on the Serial Adapter labeled "JTAG", see Figure 3. (The Serial Adapter supports
both Silicon Laboratories JTAG and C2 debug interfaces.). All Serial Adapters may be powered from the target
board, but the EC1 and EC2 Serial Adapter units cannot provide power to the target board. Table 5 shows the pin
definitions for the Serial Adapter's JTAG connector.
Notes:
1. When powering the Serial Adapter via the JTAG connector, the input voltage to the JTAG connector's
power pin must be 3.0 to 3.6 VDC. Otherwise, the Serial Adapter must be powered directly by connecting
the AC/DC adapter to the Serial Adapter's DC power jack.
2. The Serial Adapter requires a target system clock of 32 Khz or greater.
Pin #
1 3.0 to 3.6 VDC Input
2
4
5
6
7
3,8,9,10
Table 5. JTAG/DEBUG Connector Pin Descriptions
Pin 2

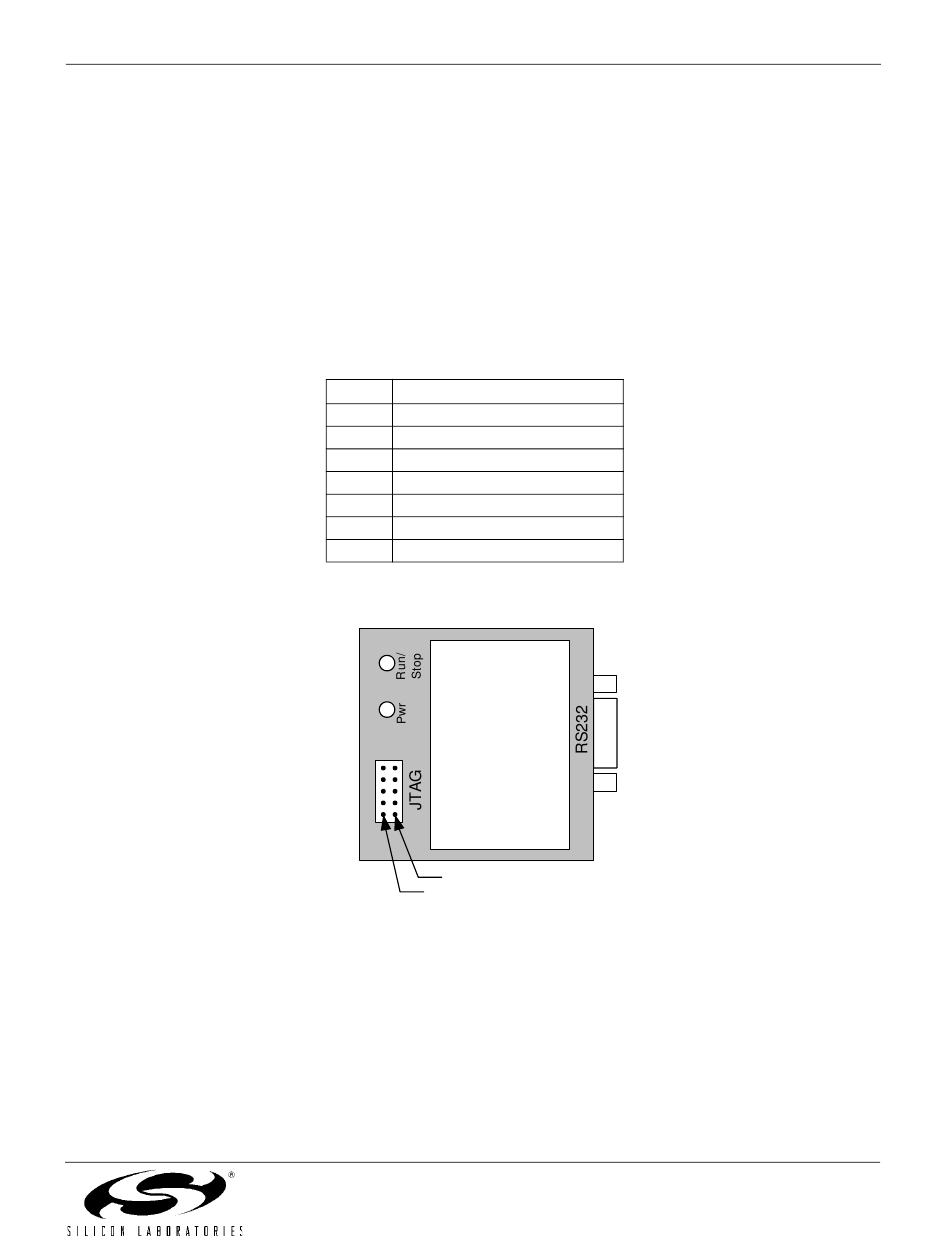

Figure 3. Serial Adapter JTAG/DEBUG Connector
Description
GND (Ground)
TCK (C2DAT)
TMS
TDO
TDI (C2CLK)
Not Connected
Serial
Adapter
Pin 1
