Pyronix MATRIX Installation Instruction page 2

MATRIX

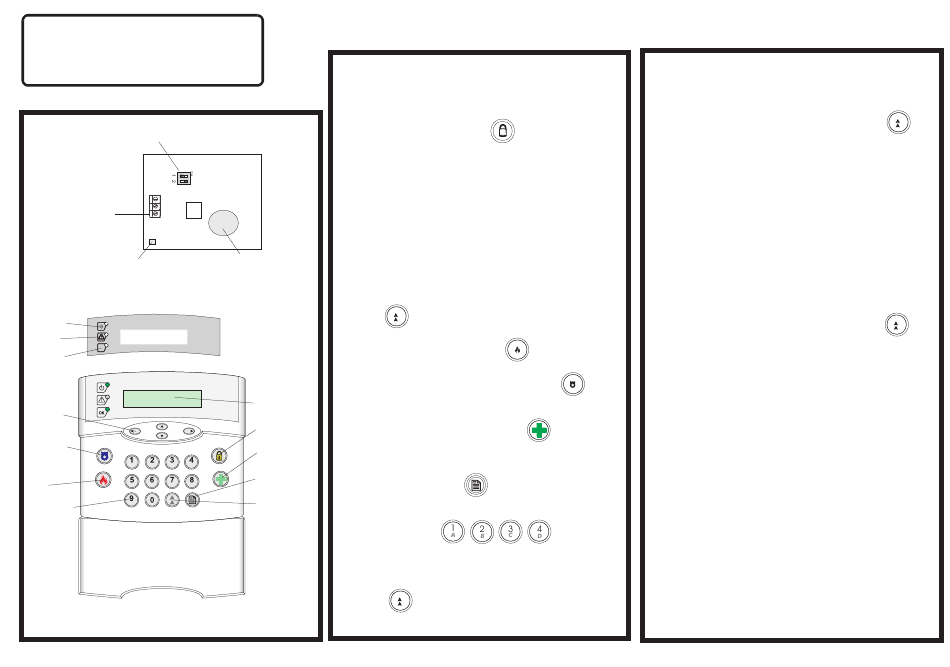

PCB LAYOUT
Keypad switch
Terminal
K+
connections
KD
to panel
K-
Tamper switch
KEYPAD LAYOUT
Supply
User menu
Fault
Edit user
OK MATRIX
Ready
Directional
Keys
Personal
Attack
A B C D
A C D F G I H J L
B E K
Fire
M O N P R Q S U T V X W
YZ
Numerical
Keypad
USER OPTIONS (QUICK REFERENCE)
®
DISARMED MODE
Arming the Panel
Enter the User code (XXXX,X,X)
Panel will start arming in mode A
For different Armed mode press
mode (A,B,C or D)
Disarming the Panel
Enter User code (XXXX,X,X)
Panel is now disarmed
Duress Arming / Disarming the Panel
There are two methods of duress code entry.
1. Reverse the third and fourth digits of your user code
2. Enter the Duress code allocated by the Master user or
Engineer.
Sounder
Fault Tones
To silence fault tones, which occur while a fault is present,
press the
Fire
To activate the fire alarm hold down
Personal Attack
To activate the personal attack alarm hold down
for 2 secs
LCD Display
MATRIX
Medical key
To activate the Medical alarm hold down
Arm Key
Medical Key ENTERING USER MODE
Menu Key
To enter User mode Press
Function Key
code XXXX(X,X)
Default Master User
An acceptance tone will be heard
To exit user mode scroll to the end on the limited user menu
and press
for 2 seconds
followed by desired
key.
for 2 secs
for 2 secs
once and enter a valid user
to exit or press and hold the menu key
LIMITED USER MODE
The following options are available from the limited user
menu by scrolling through the menu and entering
to select each option.
1. Omitting zones
2. Display the log
3. Set the volume
4. Set the backlight
5. View the time and date
MASTER USER MODE
The following options are available from the limited user
menu by scrolling through the menu and entering
to select each option.
1. Change time
2. Change date
3. Edit user
4. Change user codes
5. Edit user name
6. Proximity volume
7. Proximity cards
8. Pulse PGM 1
9. One hour window
10. System Test
RINS373-3
