110-732E
7/18/01
3:04 PM
I N T E G R A T E D C O M F O R T S O L U T I O N S
110-732E
As an E
S
®
partner, Maple Chase has
NERGY
TAR
determined that this thermostat product meets
the E
S
®
guidelines for energy efficiency.
NERGY
TAR
!
Important Safety Information
WARNING:
•
Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning, or servicing thermostat.
•
Read all of the information in this manual before installing or
programming this thermostat.
•
This is a 24V AC low voltage thermostat. Do not install on voltages
higher than 30V AC.
•
All wiring must conform to local and national building and electrical
codes and ordinances.
•
Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty.
Page 1

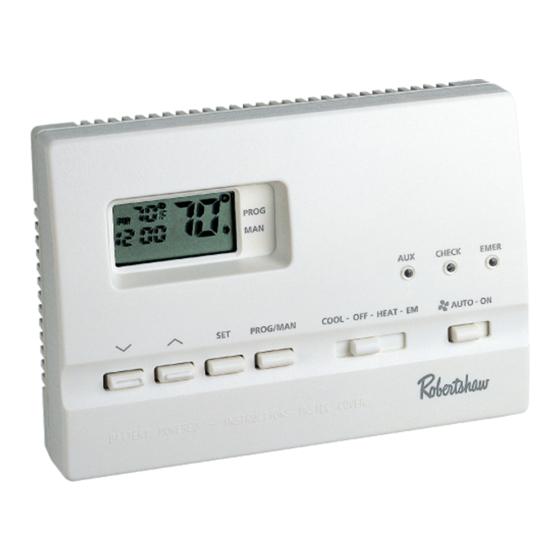

9620
®
H
™
HEAT PUMP
7 Day Programmable
2 Heat / 2 Cool
User's Manual

Quick Start

Installation and
Programming
©2001 Maple Chase Company
1
DIGITAL
PROGRAMMABLE
THERMOSTAT
