DEMA
Olympian
Probeless Warewash Control
O-PDV
(White)
Power Specifications
Model
Voltage
O-PDV*
115/230V 50/60 HZ
*Factory set at 230V.
I-918
Rev. F-41675 5/10/16
Please read all instructions before proceeding with
the Olympian installation.
PURPOSE:

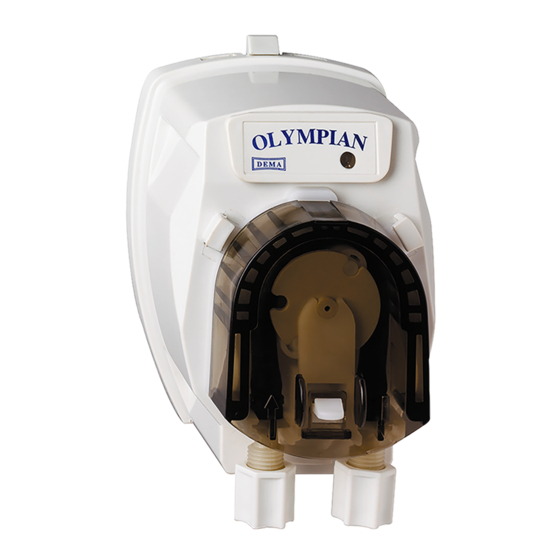

The Olympian probeless warewash system
controls chemical delivery functions for door-type
dish machines and similar warewash applications.
They require an 81-245-1 Two Button Programmer
(see below) to set up the initial programming. Only
one Two Button Programmer is required as it can
be used to program as many Olympian models as
desired.
This detergent control can be powered from a wash
motor signal or a rinse valve signal.
Current
0.5 A
Shipping Weight: 2.75 lb (1.25 kg)
81-245-1 TWO BUTTON PROGRAMMER
(Optional; not included.)
Page 1 of 4
Advertisement
Table of Contents
Related Manuals for DEMA Olympian O-PDV
Summary of Contents for DEMA Olympian O-PDV
- Page 1 DEMA Olympian Probeless Warewash Control O-PDV (White) Please read all instructions before proceeding with the Olympian installation. PURPOSE: The Olympian probeless warewash system controls chemical delivery functions for door-type dish machines and similar warewash applications. They require an 81-245-1 Two Button Programmer (see below) to set up the initial programming.
- Page 2 PARTS CHECKLIST BY OLYMPIAN MODEL White ITEM PART NO. DESCRIPTION O-PDV Model 81-234-2 Olympian 81-260-1 Detergent Bulkhead Fitting 61-107-2 Ceramic Weight 24-10-11 Tubing Vinyl ¼”OD x 1/8”ID 30-37 Screw 66-121 Wall Anchor 81-248-1 Weight Retainer ELECTRICAL INSTALLATION: All installations must be in accordance with city, county, parish, state, or provincial electrical codes and be performed by a certified electrician.
- Page 3 PROGRAMMING: NOTE: Due to the short wash and rinse cycles, the programming of the unit may require several wash cycles. Step 1: Apply power. Step 2: Remove the cover and connect the Two Button Programmer as Figure 4. Programmer Installation shown in Figure 4.
- Page 4 Defective units or parts should be returned to the factory with transportation prepaid. If inspection shows them to be defective, they will be repaired or replaced without charge. F.O.B. factory DEMA assumes no liability for damages. Return merchandise authorization number to return units for repair or replacement must be granted in advance of return.
