Jenn-Air JDS9860BD Installation Instructions

PRODUCT MODEL NUMBERS
JDS9860BD
Gas supply: Natural gas supply line must have
a natural gas service regulator. Inlet pressure to
this appliance should be reduced to a maximum
of 14" water column (0.5 pounds per square inch
(p.s.i.) liquefied petroleum propane gas supply
line must have a L.P. gas pressure regulator. Inlet
pressure to this appliance should be reduced to a
maximum of 14" water column (0.5 p.s.i.). Inlet
pressures in excess of 0.5 p.s.i. can damage the
appliance pressure regulator and other gas
components in this appliance and can result in a
gas leak.
Gas supply pressure for testing regulator must
be at least 1" water column pressure above
manifold pressure shown on serial plate.
CLEARANCE DIMENSIONS
C o m
b u s
W a
t i b l
l l C
a b i
n e t
1 3
"
( 3 3
13" (33 cm) max.
c m
depth of cabinets
above cooktop
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

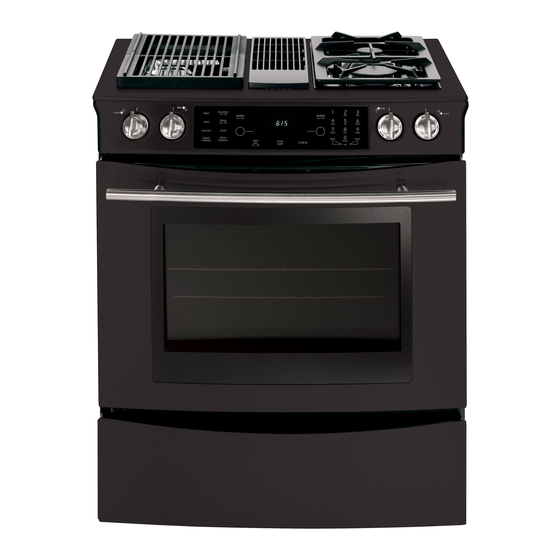

Dual Fuel Downdraft Slide-in Range
NOTE: It is recommended to use a CSA certified
flexible connector no longer than 36" (91.4 cm)
with a minimum BTU/HR rating of 60,000.
A gas shut-off valve should be put in an
accessible location in the supply line ahead of the
range, for turning on and turning off gas supply.
Range is to be connected to house piping with
flexible metal connectors for gas appliances.
Connector nuts must not be connected directly to
pipe threads. The connectors must be installed
with adaptors provided with the connector.
e
s
)
1 8 3 0 3 0
"
( 4 5 ( 7 6 ( 7 6
1 8
m )
. 7 c
( 4 5
2 5
( 6 3
. 5 c
" " "
3 0 3 0 3 0
m ) m ) m )
. 2 c . 2 c . 2 c
( 7 6 ( 7 6 ( 7 6
" " "
m ) m ) m )
. 2 c . 7 c . 2 c
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Electrical: This range requires a single-phase
three-wire 120/240- or a 120/208-volt, 60-Hz,
AC-circuit. Wiring codes require a separate circuit
be run from the main entrance panel to the range
and that it be equipped with separate disconnect
switch and fuses, either in the main entrance
panel or in a separate switch and fuse box.
Range may be installed with 0"
(0 cm) clearance adjacent to
(against) combustible construction
at the rear and on the sides below
the cooktop.
C o m
NOTE: 30" (76.2 cm) dimension
b u s
B u
t i b l
between cooking top and wall
i l d i
e
n g
W a cabinet shown on illustration does
l l s
not apply to ranges with an elevated
oven or microwave. The installation
instructions of the elevated oven will
"
specify the minimum acceptable
m )
dimension between the cooktop and
elevated oven. The 30" (76.2 cm)
dimension may be reduced to not
less than 24" (61 cm) when the wall
cabinets in a domestic home are
protected with fireproof materials in
accordance with American National
Standards - National Fuel Gas Code
or in mobile homes when they are
protected with fireproof materials in
accordance with the Federal
Standard for Mobile Home
Construction and Safety.
Page 1 of 2
Ref. 8101P702-60
09-20-08
