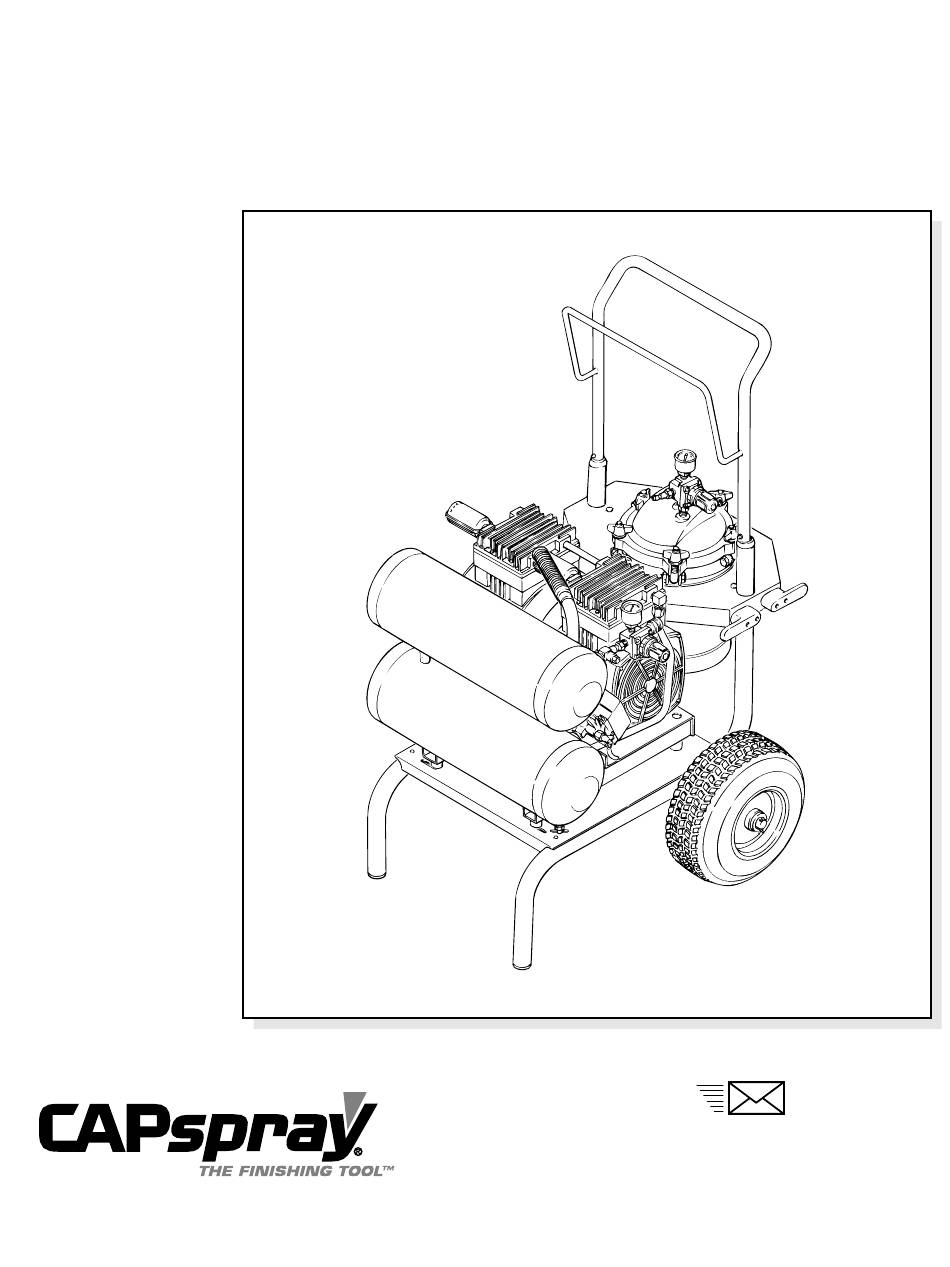

- Page 1 CS10000 HVLP Spray System Owner’s Manual Model No. 0295636 CAPSpray 1770 Fernbrook Lane Minneapolis, MN 55447 Technical Assistance: 1-800-292-4637 Order Entry: 1-800-443-4500 Fax: 1-800-525-9501 w ww.s p r ay t e ch i n c . c o m 0201 © 2001 CAPSpray. All rights reserved. Form No. 0295640D Printed in the U.
- Page 2 Table of Contents HAZARD: HAZARDOUS VAPORS — Paints, solvents, insecticides, and other materials may be Safety ......... 2 harmful if inhaled causing severe nausea, Introduction.
- Page 3 Setup Grounded Outlet Connecting the Spray System 1. Make sure the ON/OFF lever on the pressure switch is on the OFF position. 2. Connect the compressor hose from the lower storage tank to the pressure pot air inlet. Grounding Pin NOTE: The hose features quick-disconnect fittings.
- Page 4 Operation Shutdown 1. Move the ON/OFF lever on the pressure switch to the Startup OFF position. 2. Allow the compressor to cool. 1. Place the unit in a clean, dry and well-ventilated area. 3. Drain the storage tanks (refer to compressor manual for The compressor should be located at least 12”...
- Page 5 Français Español ADVERTENCIA AVERTISSEMENT PELIGRO: GENERAL — Puede causar daños en la propiedad o DANGER: GÉNÉRAUX — Risques de dommages matériels et de lesiones severas. blessures graves. PREVENCIÓN: PRÉVENTION: • Lea todas las instrucciones y advertencias de seguridad antes de •...
-
Page 6: Parts List
Parts List Main Assembly NOTE: Refer to the air compressor manual included with this unit for air compressor replacement parts. Item Part # Description Quantity Item Part # Description Quantity 0295689 Air hose.............1 0277348 Hose, material (connects to gun)....1 0275696 Fitting, air, 1/4"... -
Page 7: Cart Assembly
Cart Assembly Item Part # Description Quantity Item Part # Description Quantity 0295611 Hole trim ..........1 0295608 Screw............4 0295725 Cart weldment, CS10000 .....1 0509386 Washer..........4 9885571 Plug............2 0293357 Screw............4 0508144 Handle ..........1 0279437 Cord wrap ..........2 0295610 Roll pin..........2 0294534 Spacer washer........4 9841504 Snap button ..........2... - Page 8 SprayTECH 30-Day Satisfaction Guarantee If, within a 30-day period from the date of purchase, you are not totally satisfied with a SprayTECH/CAPSpray unit, you may return it for full credit toward another SprayTECH or CAPSpray product of equal or greater value.
