OEM – INSTALLATION – FLUSH MOUNT CONTROL
UNIT
WARNING: This appliance is intended to be installed, operated and
maintained by qualified/trained personnel without reduced physical, sensory and
mental capabilities.
Install the Bezel
1) WARNING: Disconnect all AC power
when installing this system. Follow all state,
local, and National Electrical Code(s)
(provincial and Canadian Electrical Code(s)
if applicable).
2) Remove spa side skirts and identify a
suitable mounting location on the skirt for the bezel.
Before cutting out the skirt:
a) Ensure there will be adequate clearance behind
the skirt for the bezel and the SpaPilot
Unit.
b) Ensure that cell and power cables will reach
their termination locations

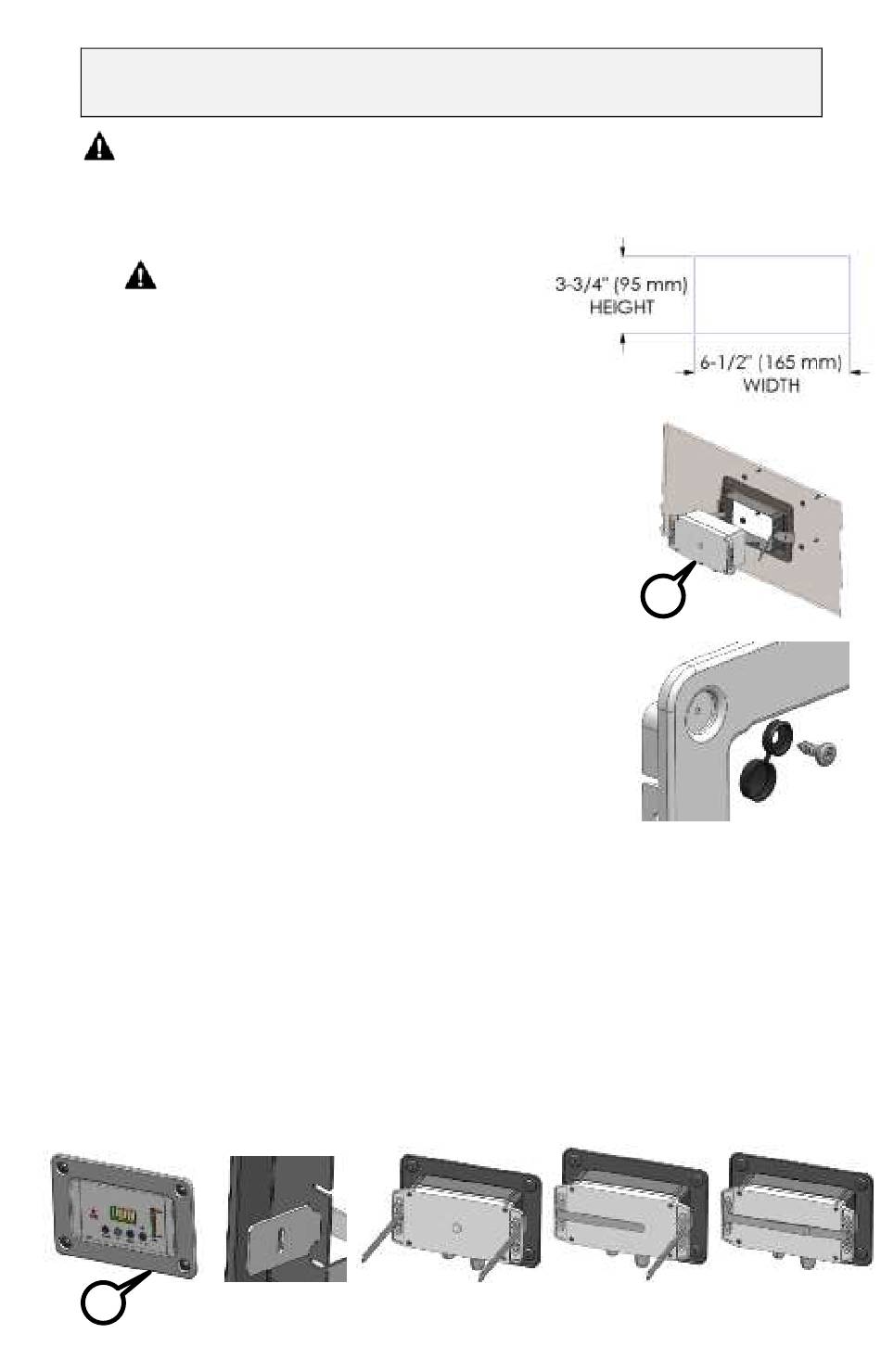

Cut out the skirt as shown in the diagram 3.75" high x
3)
6.5" wide (95 x 165 mm).
4) Slide in the bezel as shown in the diagram below
with the 2 half circles face down. Seal gaps on edge
with silicone sealant if needed.
Drill a small pilot-hole 3/32" (2 mm) through the four
5)
circular dimples on the bezel and through the skirt.
6) With the snap cap open, install one of the self-
tapping #8-11 x ½" (13 mm) self-tapping screws
through the snap cap into the bezel/skirt pilot hole.
7) Close and press the snap cap cover firmly until it
snaps into place.
8) Repeat step numbers 6 & 7 for the remaining three holes to complete
installation of the bezel.
Install the Control Unit
9) From the back of the panel/skirt, slide the SpaPilot
bezel until the unit is flush with the front of the bezel. Install the unit so that
the cell and power cords are on the bottom. See the diagram below.
10) Using the provided Velcro and with the unit held firmly in place, pull one
strap tight and attach to the circular Velcro dot. Pull the second Velcro strap
tight and overlap the first strap, as shown. The Velcro must go through the
slots on the bezel and lid as shown in the diagram.
10
®
Control
®
Control Unit into the
29
9
