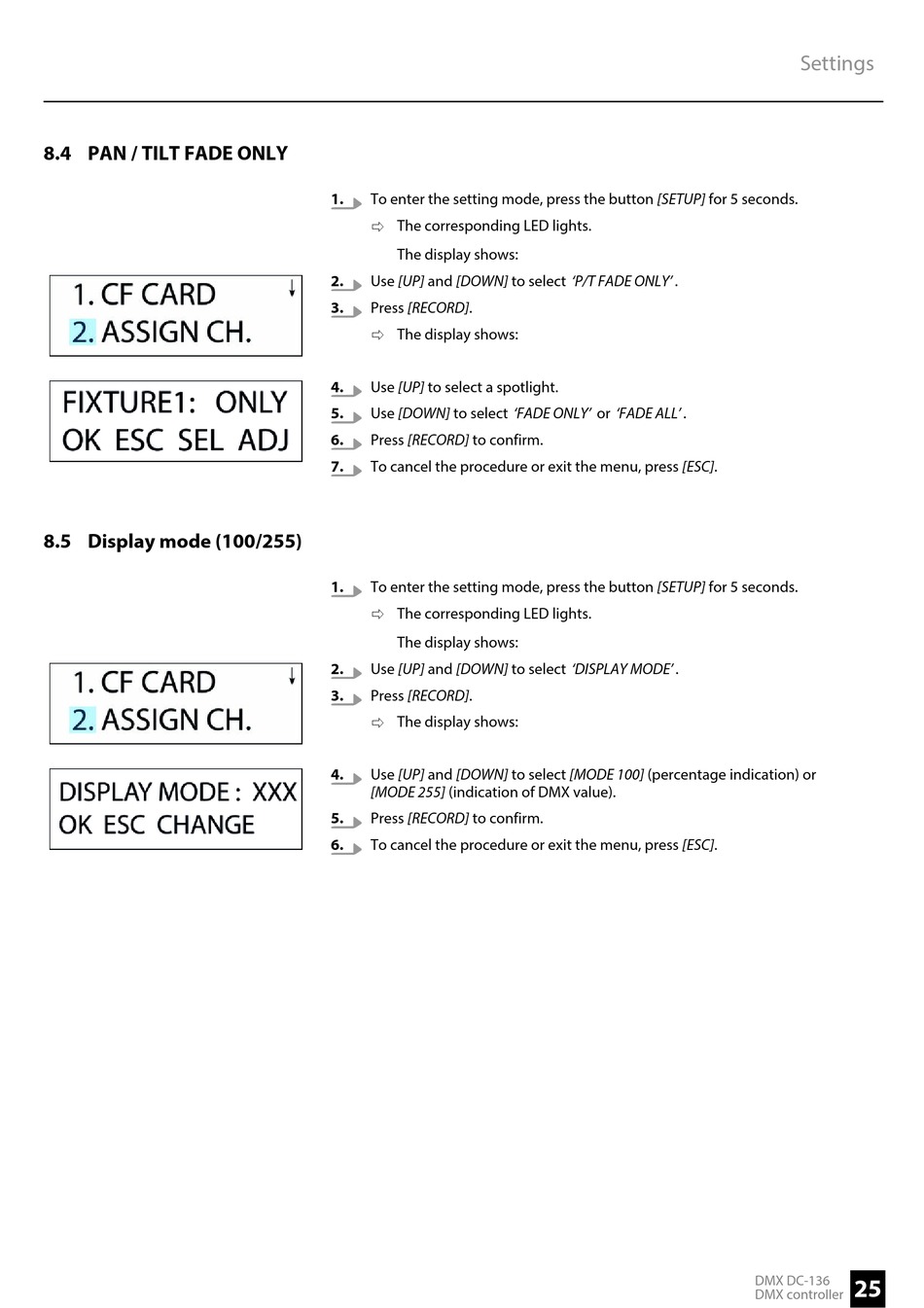

8.4 PAN / TILT FADE ONLY

8.5 Display mode (100/255)

1.
To enter the setting mode, press the button [SETUP] for 5 seconds.
ð The corresponding LED lights.
The display shows:
2.
Use [UP] and [DOWN] to select 'P/T FADE ONLY' .
3.
Press [RECORD].
ð The display shows:
4.
Use [UP] to select a spotlight.
5.
Use [DOWN] to select 'FADE ONLY' or 'FADE ALL' .
6.
Press [RECORD] to confirm.
7. To cancel the procedure or exit the menu, press [ESC].
1.
To enter the setting mode, press the button [SETUP] for 5 seconds.
ð The corresponding LED lights.
The display shows:
2. Use [UP] and [DOWN] to select 'DISPLAY MODE' .
3.
Press [RECORD].
ð The display shows:
4.
Use [UP] and [DOWN] to select [MODE 100] (percentage indication) or
[MODE 255] (indication of DMX value).
5. Press [RECORD] to confirm.
6. To cancel the procedure or exit the menu, press [ESC].
