HoldPeak 870CR Operation Manual

HOLDPEAK
OPERATION MANUAL

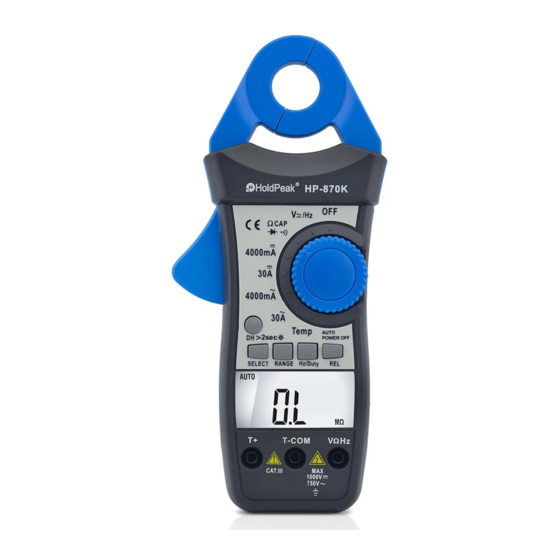

This LCD Auto Range & Auto Power off Digital AC/DC clamp
multimeter is a portable, 3 3/4-digit multimeter. It is ideally suited
for field, laboratory, shop and home applications.

1. SAFETY INFORMATION

The following safety information must be observed to insure
maximum personal safety during the operation at this meter.
1) When measuring voltage ensure that instrument is not
switched to the current range, resistance range, diode and
continuity range, capacitance range or temperature range.
2) Use extreme care when measuring voltage above 50V.
especially from sources where high energy is existed.
3) Avoid making connections to "live" circuits whenever possible.
4) Before making resistance measurements, diode or continuity
test, capacitance test or temperature test, ensure that the circuit
under test isde-energized.
5) Always ensure that the correct function and range is selected.
6) Extreme care should be taken when using the instrument to
conjunction with a current transformer connected to the terminals
if an open circuit occurs.
7) Ensure that the test leads and probes are in good condition
with no damage to the insulation.
8) Take care not to exceed the over-load limits as given in the
specifications.
9) Before opening the cover of the battery cabinet to replace
batteries. disconnect the test leads from any external circuit, set
the selector switch to "OFF" position.
10) Keep the fingers after the protection ring when measuring
through the instrument lead.
1) Change the battery when the symbol "
1
incorrect data.

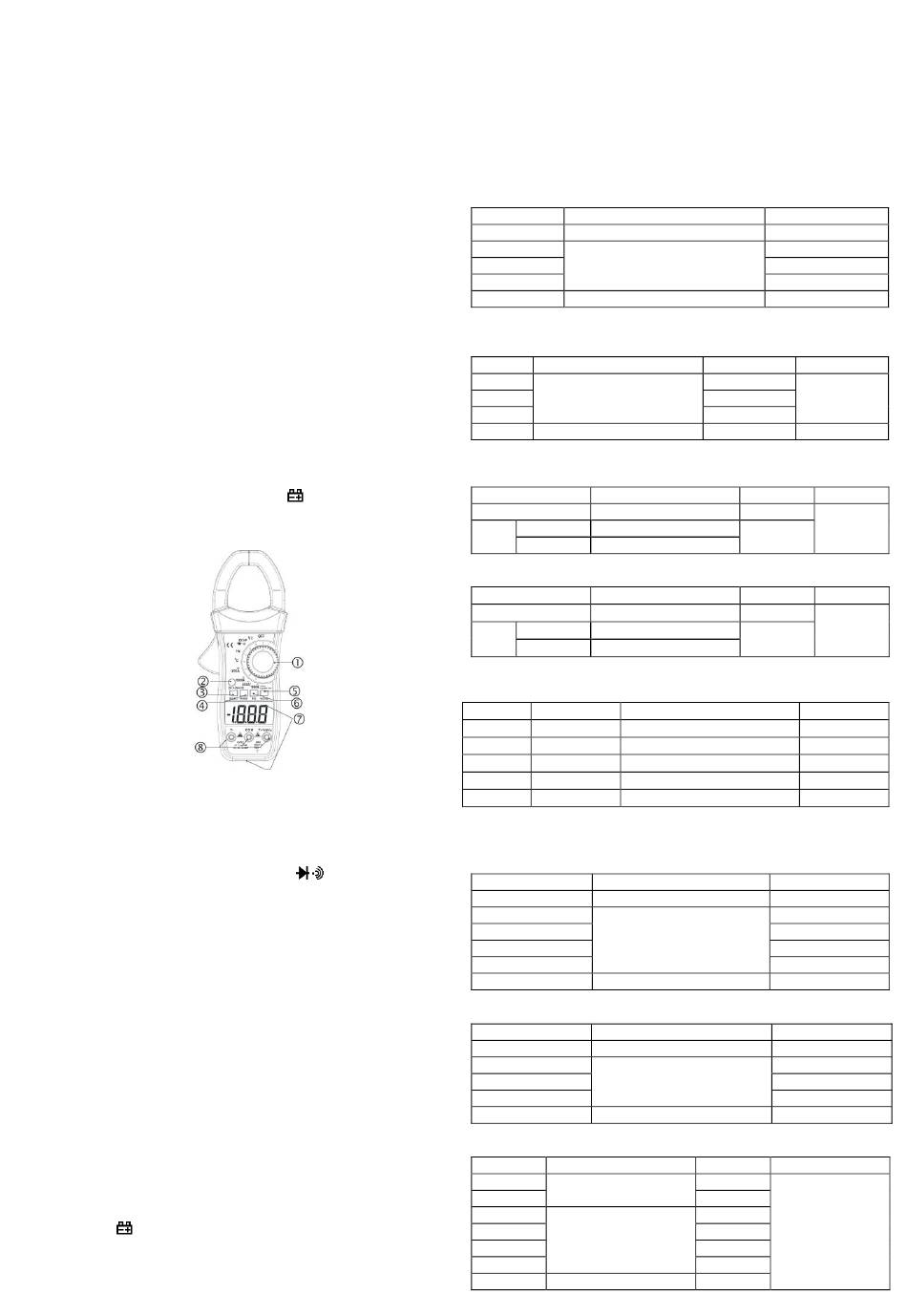

2. Panel Layout
1) Rotary Switch: use this switch to select functions and ranges.
2) D.HOLD/ Back Light key：In any range, push the key, the
present display value will be locked and the " H " symbol will
appear, push it again to exit HOL and the " H" symbol disappear.
Press "D.HOLD" button more than 2 seconds, the back light will light,
press it more than 2 seconds again, the back light will light off.
3) SELECT key: This key work on the "CAP
Push the key to choose resistance, diode or continuity test.
4) RANGE key：Push the key to select manual mode, push it
again to change the range, press the key for more than 2
seconds to go back auto range mode. But in Hz/Duty and
Capacitance measurement, it can not select manual range mode.
5) Hz/DUTY key： In Hz range, push the key, you can measure the
duty, push again, go back to Hz measurement. In voltage
range, push it, you can measure Hz and duty, but the
measurement range will be smaller, and the auto range mode
will be changed to manual range mode.
6） REL key： Push the key, the present display value will be stored in
memory, then the new display value is the difference between input
value and stored data. In Hz/Duty measurement, it can not work.
7) LCD Display：LCD Dual Display, facilitates reads the data.
8)T+V Ω Input Jack 、COM Input Jack、T- Input Jack

2. SPECIFICATIONS

2.1 GENERAL SPECIFICATIONS

Display: 3 3/4 digit LCD with a max. reading of 3999.
Range control: Auto range control.
Polarity: Automatic negative polarity indication.
Zero adjustment: Automatic.
Over range indication: Only the "OL" display.
Low battery: The " " is display when the battery voltage is below 7.2V.
Auto Power Off: 30 minutes after stopping the switch or no push
button, the meter automatically enter to power off mode. Push
button or run switch, auto power off disable.
Safety Standards: The meter is up to the standards of IEC1010
870CR
" appears to avoid
Ω" range only.
Double Insulation, Pollution Degree 2, Overvoltage Category Ⅲ.
Clamp opening size: 45mm.
Operating Environment: Temperature 32～104°F(0～40℃),
humidity＜80%RH.
Storage Environment: Temperature -4～140°F(-20～
60℃),humidity＜90%RH.
Power supply: 9V Zinc-carbon battery.
Dimension: 225(H)×77(W)×45(D)mm.
Weight: Approx. 330g (including batteries).

2.2 ELECTRICAL SPECIFICATIONS

Accuracies are ±(% of reading +number in last digit) at 23±5℃,
≤70%RH.

2.2.1 DC Voltage

Range Accuracy
400mV 0.8% of rdg+5digits
4V
40V 1.0% of rdg+5digits
400V
1000V 1.5% of rdg+5 digits
Overload protection: 1000V DC/750Vrms AC
Impedance: 10MΩ，More than 100MΩ on 400mV scale

2.2.2 AC Voltage

Range Accuracy
4V
40V 1.5% of rdg+5 digits
400V
750V 2.5% of rdg+5 digits
Average sensing, calibrated to rms of sine wave
Overload protection: 1000V DC/750Vrms AC;Impedance: 10MΩ.

2.2.3 DC Current

Range Accuracy
200A 3.0% of rdg+10 digits
3.5% of rdg+10 digits
0～800
1000A
6.5% of rdg+10 digits
800～1000
Overload protection: 1000Arms within 60 seconds

2.2.4 AC Current

Range Accuracy
400A 3.0% of rdg+10 digits
3.5% of rdg+10 digits
0～800
1000A
6.5% of rdg+10 digits
800～1000
Average sensing, calibrated to rms of sine wave
Overload protection: 1000Arms within 60 seconds
2.2.5
AC Voltage(True RMS)
Range Resolution
±2.0% of rdg+15 digits
400mV 0.1mV
±1.2% of rdg+10 digits
4V 1mV
±1.2% of rdg+10 digits
40V 10mV
±1.0% of rdg+10 digits
400V 100mV
±1.0% of rdg+10 digits
750V 1V
1. Input impedance : > 10MΩ Ohm ACV True RMS.
2. Overload protect : 1000V DCV or ACV peak value
3. Press "Range" button for select ACV 400mV range.

2.2.6 Resistance

Range
400Ω
1.5% of rdg+15 digits
4kΩ
40kΩ
1.2% of rdg+15 digits
400kΩ
4MΩ
40MΩ
2.5% of rdg+15 digits
Overload protection: 250V DC/250Vrms AC

2.2.7 Capacitance

Range
40nF 6.0% of rdg+10 digits
400nF
4μF 3.5% of rdg+5 digits
40μF
100μF 6.0% of rdg+10 digits
Overload protection: 250V DC/250Vrms AC

2.2.8 Frequency

Range Accuracy
10Hz
1.2% of rdg+10 digits
100Hz
1000Hz
10kHz
0.8% of rdg+5 digits
100kHz
1000kHz
10MHz 2.0% of rdg+10 digits
Overload protection: 250V DC/250Vrms AC
Resolution
0.1mV
1mV
10mV
100mV
1V
Resolution Frequency
1mV
10mV 50～400Hz
100mV
1V 50～100Hz
Resolution Frequency
0.1A
1A
Resolution Frequency
0.1A
1A
Accuracy Sensitivity
40Hz-1kHz
40Hz-1kHz
40Hz-10kHz
40Hz-400Hz
40Hz-400Hz
.
Accuracy Resolution
0.1Ω
1Ω
10Ω
100Ω
1kΩ
10kΩ
Accuracy Resolution
10PF
100PF
1nF
10nF
100nF
Resolution Sensitivity
0.01Hz
Range of input
0.1Hz
voltage:1.5V~1
1Hz
0V, If input
10Hz
voltage over
100Hz
range, need
1kHz
adjust
10kHz
-
50～
400Hz
