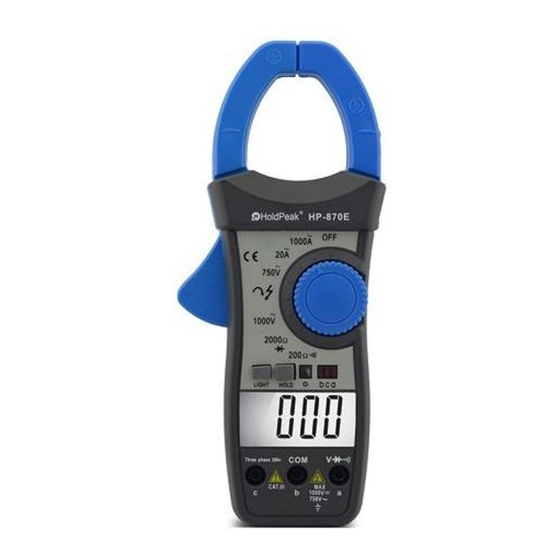

HoldPeak 870E Operation Manuals

870E
3 1/2 DIGITAL DUAL DISPLAY
AC CLAMP MULTIMETER
OPERATION MANUAL

1. SAFETY INFORMATION

The following safety information must be observed to insure
maximum personal safety during the operation at this meter.
1.1 Do not operate the meter if the body of meter or the test lead
look broken.
1.2 Check the main function dial and make sure it is at the correct
position before each measurement.
1.3 Do not perform resistance, temperature, diode and continuity
test on a live power system.
1.4 Do not apply voltage between the test terminals and test
terminal to ground that exceed the maximum limit
this manual.
1.5 Exercise extreme caution when measuring live system with
voltage greater than 60V DC or 30V AC.
1.6 Keep the fingers after the protection ring when measuring
through the test lead.
1.7 Change the battery when the symbol appears to avoid incorrect
data.

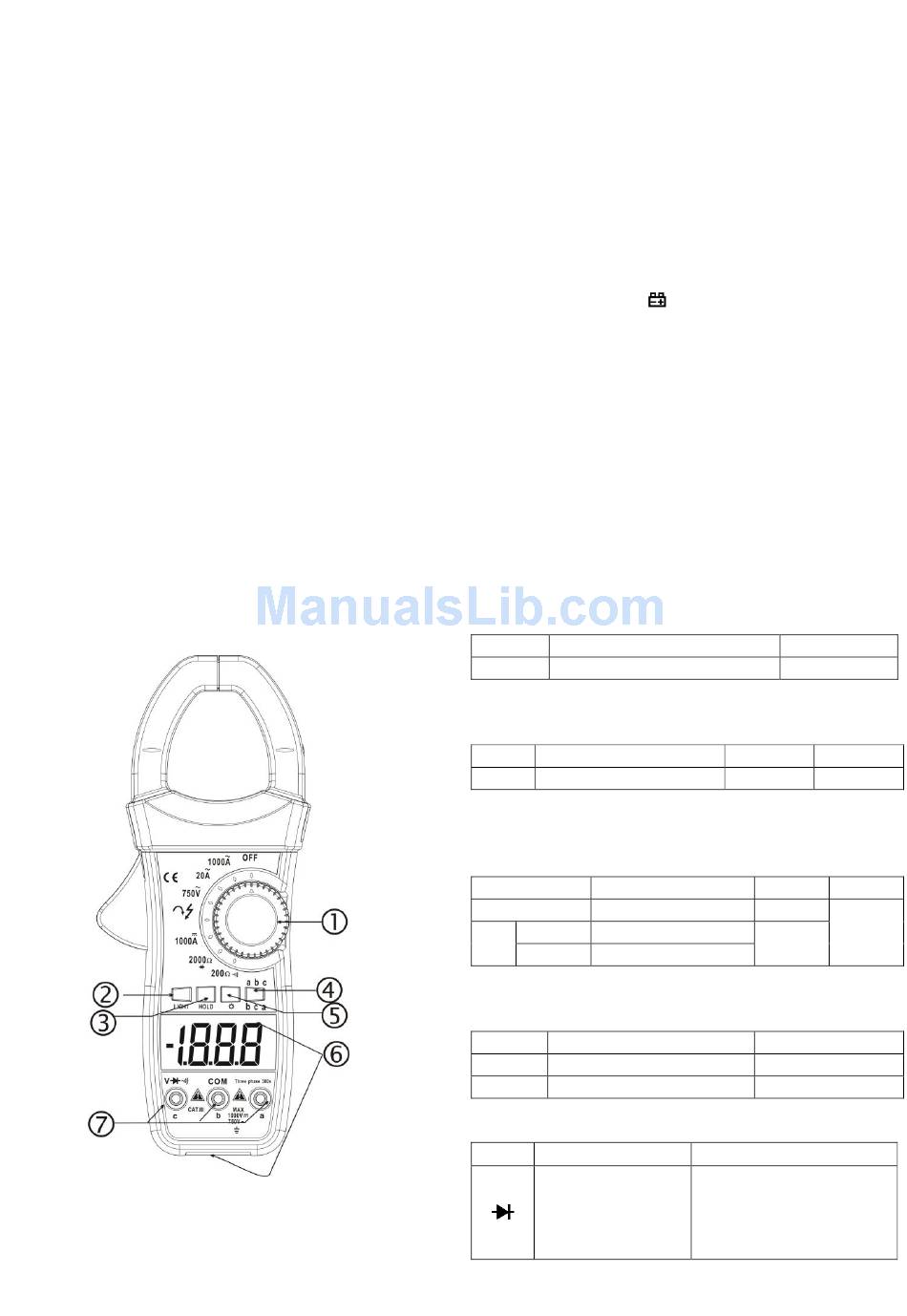

2. Panel Layout

1) Rotary Switch: use this switch to select functions and
ranges on the display.
2) Back light: Push the LIGHT button to light the backlight then it
will auto light off after approx. 5 seconds.
3）Data hold: Push the HOLD button and "DH" sign will appear
4) Phase lamp
5) lack Phase LED light
6) LCD Display
7) a b c Input Jack

3. SPECIFICATIONS

3.1 GENERAL SPECIFICATIONS

Display: 3 1/2 digit LCD with a max. reading of 1999.
Polarity: Automatic negative polarity indication.
Zero adjustment: Automatic.
Over range indication: Only the "1" or "-1" display.
Sample rate : 2 times/sec
Low battery indication: "
Safety Standards: The meter is up to the standards of IEC1010
Double Insulation, Pollution Degree 2, Over voltage Category
Ⅲ.
Clamp opening size: 45mm.
Operating Environment: Temperature 32～104°F(0～40℃),
humidity＜75%RH.
record in
Storage Environment: Temperature -4～140°F(-20～60℃),
humidity＜90%RH.
Power supply: 9V Zinc-carbon battery.
Dimension: 225(H)× 77(W)× 45(D)mm.
Weight: Approx. 330g (including battery).

3.2 ELECTRICAL SPECIFICATIONS

Accuracies are ± (% of reading + number in last digit) at 23±5℃,
≤70%RH.

3.2.1 DC Voltage

Range
1000V
Overload protection: 1000V DC/750Vrms AC
Impedance: 10MΩ

3.2.2 AC Voltage

Range
750V
Average sensing, calibrated to rms of sine wave
Overload protection: 1000V DC/750Vrms AC
Impedance: 10MΩ

3.2.3 AC Current

Range
20A
0~800
1000A
800~1000
Average sensing, calibrated to rms of sine wave
Overload protection: 1000A rms within 60 seconds

3.2.4 Resistance

Range
Ω
200
Ω
2000
Overload protection: 250V DC/250Vrms AC

3.2.5 Diode test

Range
approximately forward
Overload protection: 250V DC/250Vrms AC
"
Accuracy
±(1.5% of rdg+5digits)
Accuracy
±(
1.8% of rdg+10digits)
Accuracy
±(3.0% of rdg+10digits)
±(3.5% of rdg+10digits)
±(6.5% of rdg+10digits)
Accuracy
±(
1.0% of rdg+15digits)
±(
1.5% of rdg+15digits)
Description
Forward DC current approx
Display read
Voltage of diode.
Resolution
1V
Resolution
Frequency
1V 50~100Hz
Resolution Frequency
10mA
50~60Hz
1A
Resolution
Ω
0.1
Ω
1
Test condition
1.5mA
.Reversed DC voltage
approximately 3V
