RC2000 SERIES
AIR ACTUATED SPA CONTROLS
ONE CIRCUIT AIR SWITCH

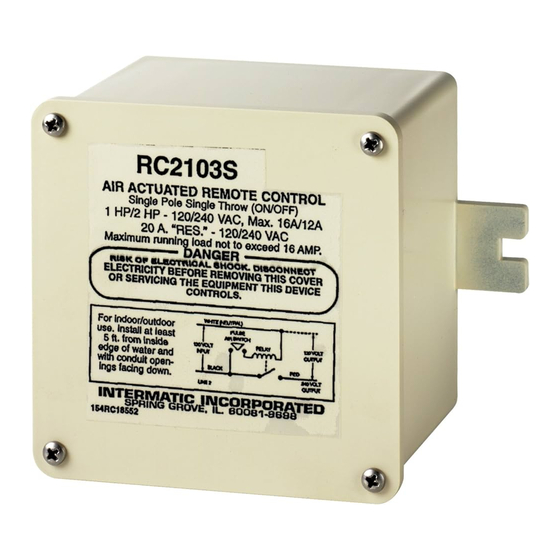

Model: RC2103S - Plastic Outdoor Enclosure
CIRCUIT: Single Pole Single Throw (ON/OFF)
RATINGS: 20 AMP. (R), 1500 Watt Tungsten, 1 HP. - 120 Volt 50/60 HZ.;
20 AMP. (R), 2 HP. - 240 Volt 50/60 HZ.
READ AND FOLLOW ALL INSTRUCTIONS.
This Air Switch is designed for CONTROLLING the connected equipment only. ALL power must be disconnected at
the main panel before servicing this unit or the equipment it controls. THIS SWITCH IS NOT TO BE USED AS A
POWER DISCONNECT. Must be installed by licensed electrician in accordance with the NATIONAL ELECTRICAL
CODE and in accordance with all local codes and at least 5 ft. from edge or spa. Do not permit children to operate this
control or use the pool/spa unless they are closely supervised at all times.

SAVE THESE INSTRUCTIONS.

This Air Switch is designed to control one piece of equipment with one air button. It can control safely, without electricity at the
spa side, for example, a pump or light. Each time pressure is applied to the remote air button, the connected equipment will
alternately turn (ON/OFF).

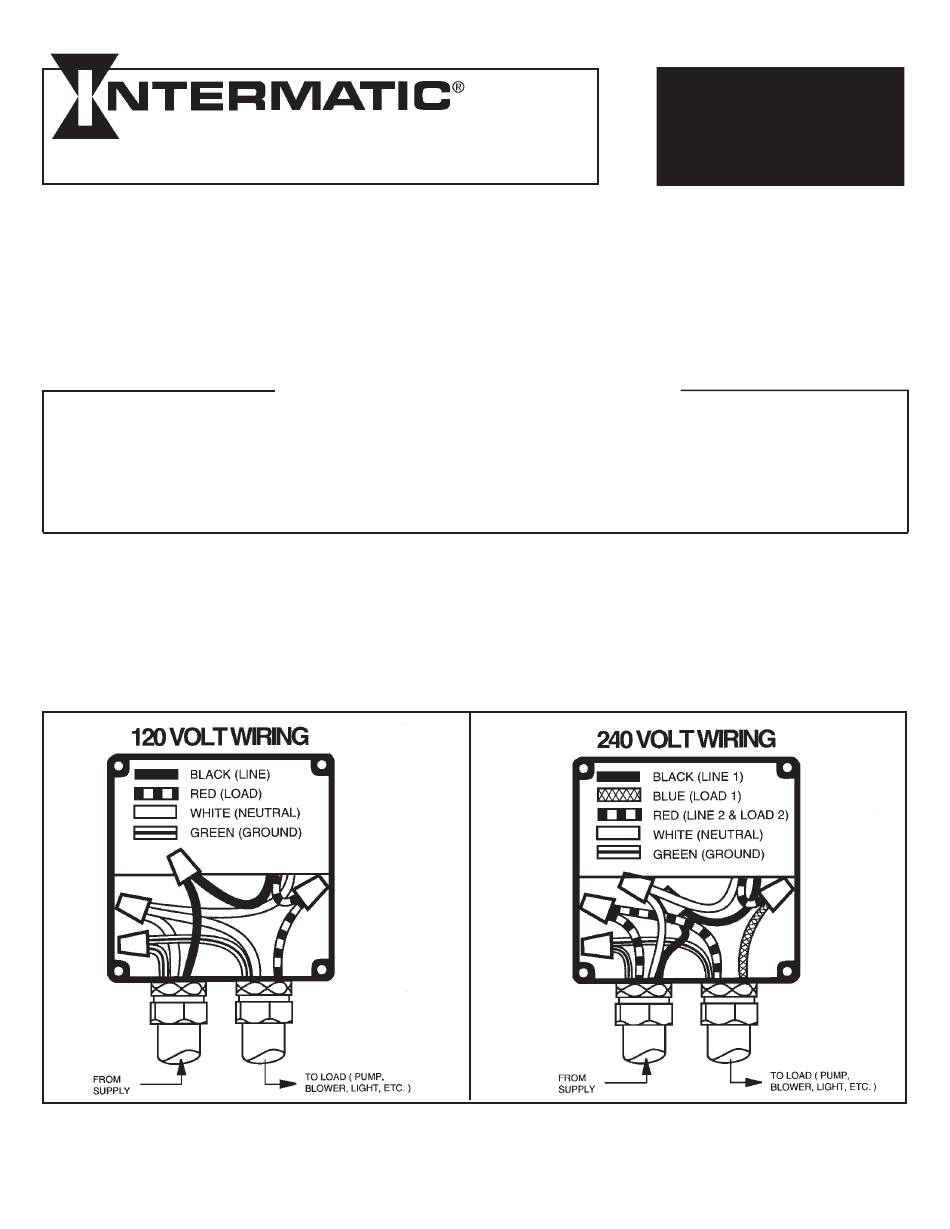

TO INSTALL - Follow appropriate wiring diagram below. Use solid or stranded COPPER wire (only) to suit installation.
The equipment must have its own separate circuit with breaker suitable for power disconnect. Properly ground installation
as required by NEC and other codes. IMPORTANT: NEUTRAL WIRE MUST ALWAYS BE USED. Make Air Hose
connection. Use only non-conductive tubing to connect the air actuator. PLEASE NOTE: The maximum range of this
Air Switch is 100 ft. However, factors beyond the control of the manufacturer (such as the size of the air button, the I.D.
of the air hose etc.) will determine the actual distance between the mechanism and the air button.
Because of our commitment to continuing research and improvements, Intermatic Incorporated reserves the right to make
changes, without notice, in the specifications and material contained herein and shall not be responsible for any damages,
direct or consequential, caused by reliance on the material presented.
PISCATAWAY: 242 Old New Brunswick Road, Suite 100, Piscataway, NJ 08845/Los Angeles: 101 Rickenbacker Road, Los Angeles CA 90040
NORTHERN CA: 2350 S. Watney Way, Unit B, Fairfield, CA 94533/FORT LAUDERDALE: 3007 N. W. 60th Street Fort Lauderdale, FL 33309
158--00625

IMPORTANT SAFETY INSTRUCTIONS

INTERMATIC INCORPORATED,
EFFECTIVE APRIL 1992
SPRING GROVE, IL 60081-9698
OWNER
INSTALLER
INSTRUCTION
MANUAL
