Escort PASSPORT S55 Manual

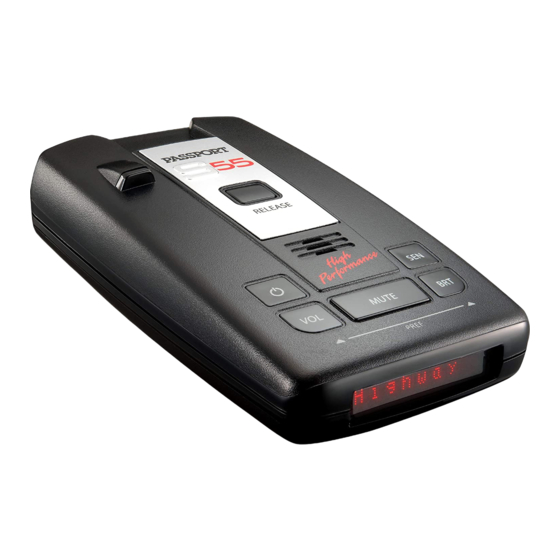

Controls & Features
Mount Release
Press to remove device
from mounting
bracket
Power Sensitivity (SEN)
Press to turn Press to adjust detector
PASSPORT S55 on or off sensitivity (Highway,
Auto, Auto NoX)
Volume (VOL) Brightness (BRT)
Press and hold Press to adjust display
to adjust volume brightness (Min, Med,
Max, Dark)
MUTE
Press to mute an alert
Display
Alert area
6
Settings & Preferences
Press the REVIEW button Press the CHANGE button
to go from one category to change your setting
to the next within a category
*
Pilot Light
Pilot HWY Full word: Highway or Auto or Auto NoX
(Power-on indication) Pilot H Letter: H or A or Anx
Pilot H.>
Letter, with scanning dot
Pilot V Vehicle voltage
*
Power-On Sequence
PwrOn FST Fast power-on sequence
PwrOn STD Standard power-on sequence
Signal Strength Meter *
Meter STD Standard signal strength meter
Meter EXP
Expert Meter
Meter SPC SpecDisplay
*
AutoMute aMute ON
AutoMute on
aMute OFF AutoMute off
*
Language
ENGLISH English language text
ESPANOL Spanish language text
AudioTones *
Tone STD Standard tones
Tone LOUD Loud tones
*
Dark Mode DARK STD Standard Dark: shows HD, AD, AnxD
DARK ALL
All Dark, no display
*
Bands Bands DFT Factory default settings
Bands MOD Factory default settings modified
Turn bands "ON" or "OFF" by
pressing the Mute button
X ON or OFF (default is ON)
K ON or OFF (default is ON)
Ka ON OFF
or (default is ON)
POP ON or OFF (default is OFF)
LSR ON or OFF (default is ON)
TSR ON OFF
or (default is ON)
7
Contact Us
Notes for Settings & Preferences
For descriptions of features and functions visit
EscortRadar.com and download the PASSPORT
S55 Owner's Manual.
Accessories
Restoring the Factory Default Settings:
800.433.3487
To restore PASSPORT S55 to its original factory
settings, press and hold BRT and VOL while
EscortRadar.com
powering on detector. RESET message will
display, acknowledging the reset.
Service Procedure
Designed in the USA
If your S55 ever needs service, call us at 1-800-
ESCORT Inc.
543-1608. We may be able to solve your problem
5440 West Chester Road
over the phone. If the problem requires that you
West Chester OH 45069
send your S55 to the factory for repair, we will
provide you with a Service Order Number, which Sales / Service 800.433.3487
must be included on the outside of your shipping www.EscortRadar.com
box.
©2015 ESCORT Inc. Escort®, Passport®, S55, Escort Live!™, AFR®, TrueLock™,
Enclose the following information with your
SmartShield®, SpecDisplay™, AutoSensitivity™, ExpertMeter™ and
Cincinnati Microwave are trademarks of ESCORT Inc. Manufactured in
S55 and power cord:
Canada. Features, specifications and prices subject to change without
• Your Service Order Number
notice.
FCC NOTE: Modifications not expressly approved by the manufacturer
• Your name and return address
could void the user's FCC granted authority to operate the equipment.
• Your daytime telephone number
FCC ID: QKLL4
This device complies with part 15 of the FCC rules. Operation is subject
• A description of the problem you are
to the following two conditions: (1) This device may not cause harmful
experiencing
interference, and (2) This device must accept any interference received
including interference that may cause undesired operation.
8
