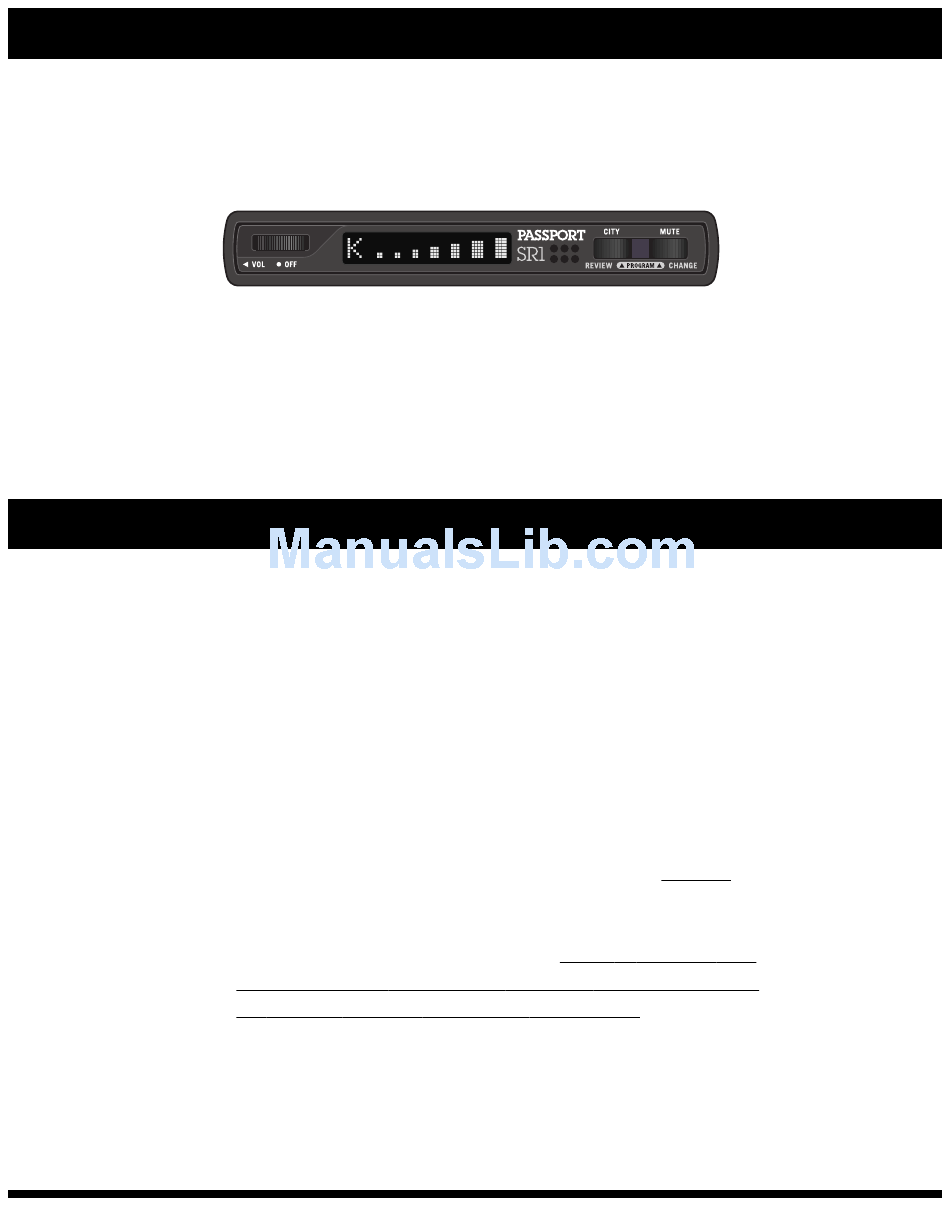

Installation Instructions for Passport SR1

This product must be installed by a professional.

Please read the installation warnings inside.

Please read this entire installation sheet before

beginning your installation.

To ensure the high-performance radar and laser

detection that Escort detectors are known for, the

mounting location of the front receiver is critical.

Although Radar signals will go through some types

of plastic, Laser signals will not. It is very important

to mount the Front Receiver in a level position that

gives it a clear "view" of the road ahead.

The metal mounting brackets provided have several

different mounting holes, and can be used for most

vehicles. However, additional mounting hardware

may be required for some installations.

For Professional Installation Only

Important Note

Need help?

Do you have a question about the Passport SR1 and is the answer not in the manual?

Page 1 Please read this entire installation sheet before beginning your installation. To ensure the high-performance radar and laser detection that Escort detectors are known for, the mounting location of the front receiver is critical. Although Radar signals will go through some types of plastic, Laser signals will not.
Page 2 IMPORTANT INSTALLATION WARNINGS Your new Passport SR1 must be installed by a professional installer. Installation of this product requires experience and expertise in automo- tive electronics. Car Audio specialists and many car dealers can install Pass- port for you.
Page 3 Instructions for Passport SR1 Interior of Vehicle Connect to switched 12 volts and ground EZ-Interface mounts under dash, connects to ground and switched 12 volt power Installation Mount inside vehicle under dashboard with zip-ties. (Do not mount under hood.) Connect black wire to ground, connect red-striped wire to switched 12 volt power.
Page 4 Passport SR1 comes complete Front Radar and Laser Receiver • Waterproof housing with attached metal mounting brackets. • Two universal metal mounting brackets • Stainless steel mounting screws with lockwashers for attaching brackets • Stainless steel sheetmetal screws with lockwashers for attachment to vehicle •...
