Summary of Contents for Escort SmartRadar

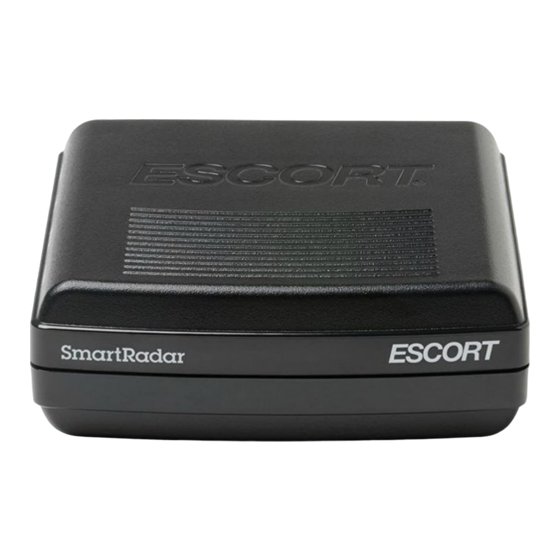

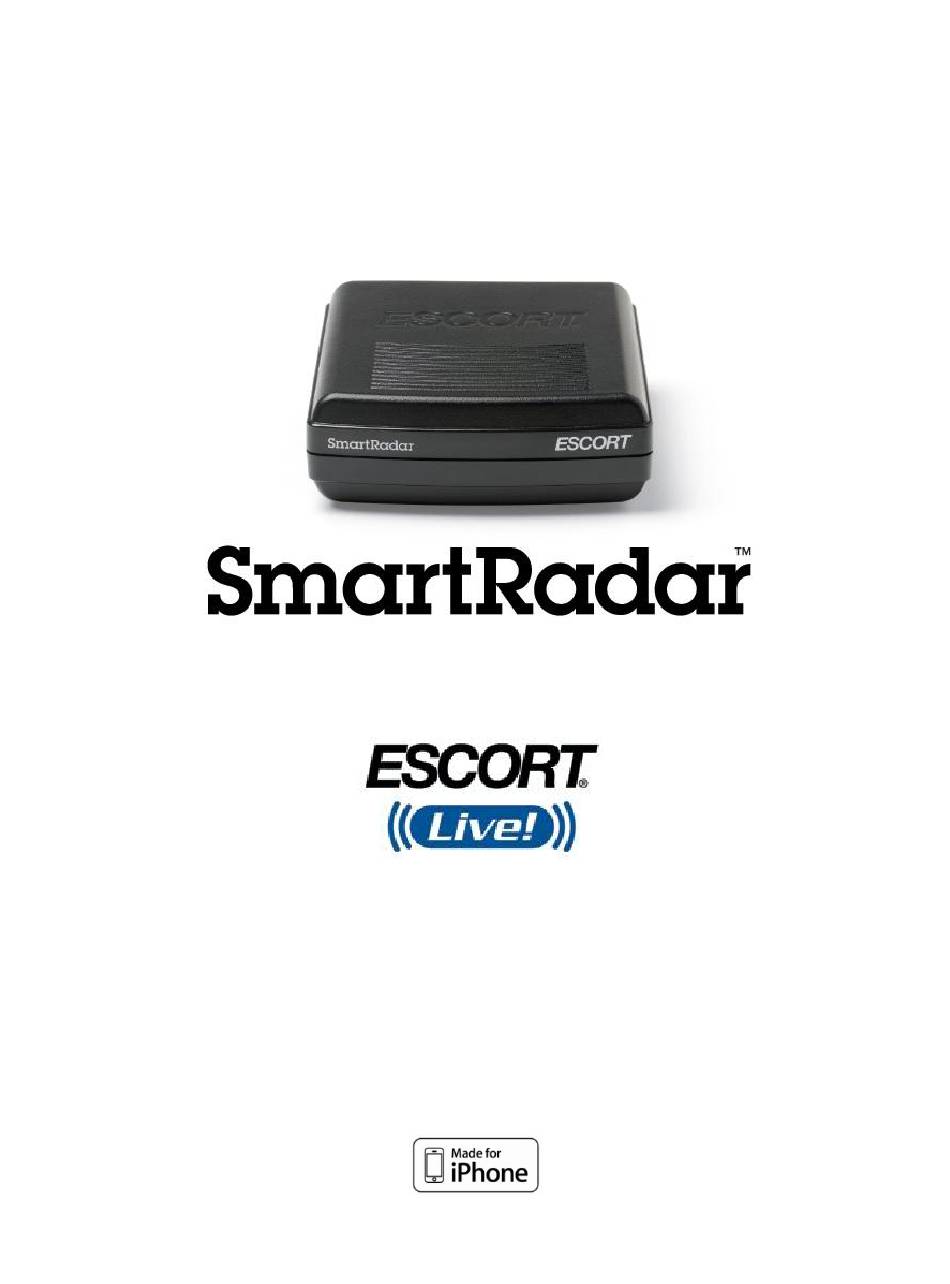

- Page 1 With Made for iPhone 4S, iPhone 4, iPhone 3GS...
- Page 2 Bluetooth® wireless technology for connection to mobile phones and other Bluetooth devices. SmartRadar includes full X, K, and SuperWide Ka radar capability, digital signal processing for superior range and reduced false alarms, our patented Mute and AutoMute, audible and visual band alerts, plus all the state-of-the-art performance and features you’d expect from ESCORT®:...
-
Page 3: Table Of Contents
Table of Contents Setting Up SmartRadar Connections and Controls Features Settings and Preferences Specifications Understanding Your Detector Troubleshooting FCC Compliance Notice Software Updates Parts and Accessories Warranty Service... -
Page 4: Setting Up Smartradar
Registration and Installation For detailed registration and installation information, see your SmartRadar Quick Reference Guide. ESCORT Live! For details on pairing SmartRadar to your iPhone and downloading ESCORT Live, see your SmartRadar Quick Reference Guide. Connections and Controls Receiver Unit For an overview of receiver unit connections and controls, see your SmartRadar Quick Reference Guide. -
Page 5: Features
SmartMute If AutoMute has already reduced the volume for one alert and a higher-priority band is detected, SmartRadar will sound an alert at your set volume for the second band before adjusting the volume back down to the AutoMute level. - Page 6 SmartRadar alerts you to all laser signals with a full laser alert.) If you prefer, you can change your alert tone settings to the ESCORT Classic mode, in which SmartRadar uses a Geiger counter-type sound to indicate the signal strength and type of radar signal being encountered.
- Page 7 KA|| K|| X|||| Above is the ExpertMeter display if SmartRadar was detecting two strong Ka-band, two strong K-band, and four strong X-band signals. As you can see, there are vertical lines after each band designator. Each line shows a signal being detected.
- Page 8 To turn the laser shifters off, or to switch to Receive Only mode, simply select the option in your SmartRadar Preferences. ESCORT Live iPhone Application SmartRadar is fully compatible with the new ESCORT Live iPhone application. For comprehensive information on ESCORT Live’s features and functions, visit www.escortinc.com and download the ESCORT Live for iPhone User Manual.
-
Page 9: Settings And Preferences
1. Enter Preferences by pressing and holding both the BRT and SENS buttons for two seconds. SmartRadar will beep and display “Prefs.” 2. Press and hold the BRT button. SmartRadar will scroll through the categories, starting with Pilot Light (Pilot), then Power-On Sequence (PwrOn), Signal-Strength Meter (Meter), and AutoMute (aMute). - Page 10 OVERVIEW OF PREFERENCES * = Factory default To reset SmartRadar to its original factory settings, press and hold the BRT and SENS buttons on the mini display controller while turning the power on. The display will provide a “Reset” message, accompanied by an audible tone, acknowledging the reset.
- Page 11 SmartRadar displays “H” for Highway, “A” for Auto, and “ANX” for Auto No X. Pilot H.> SmartRadar displays “H” for Highway, “A” for Auto, and “ANX” for Auto No X. In addition, a single dot continuously scrolls across the display.
- Page 12 SmartRadar device in this mode. Bands MOD If the bands are changed from the factory default settings, SmartRadar will warn you with an audible alert and associated text message that one or more bands have been turned off (e.g., “X-band...
- Page 13 Caution: Only modify bands if you are absolutely certain that there are no traffic radar guns using that specific band in your area. SHIFTER ZR4 Laser-Shifting System (optional, sold separately) *LSR SHFT Laser transceivers detect laser signals and transmit back a pulsed signal to “shift” or confuse the targeting laser gun.
-
Page 14: Specifications
Specifications Operating Bands X-Band: 10.525 GHz ± 25 MHz K-Band: 24.150 GHz ± 100 MHz Ka-Band: 34.700 GHz ± 1300 MHz Laser: 900nm, 33 MHz Bandwidth Radar Receiver/Detector Type Superheterodyne, GaAs FET VCO Scanning Frequency Discriminator Digital Signal Processing 4-Bit High-Resolution A-to-D Converter Laser Detection Quantum Limited Video Receiver Multiple Laser Sensor Diodes (2F) -
Page 15: Understanding Your Detector
Understanding Your Detector Interpreting Alerts Although SmartRadar has a comprehensive warning system, only experience will teach you what to expect from your detector and how to interpret what it tells you. The specific type of radar being used, the type of transmission (continuous or instant-on), and the location of the radar source affect the alerts you receive. - Page 16 Caution: Overconfidence in an unfamiliar area can be dangerous. Likewise, if an alert in a commonly traveled area is suddenly stronger or on a different band than usual, speed radar may be set up nearby. How Radar Works Traffic radar, which consists of microwaves, travels in straight lines and is easily reflected by objects such as cars, trucks, and even guardrails and overpasses.
- Page 17 LIDAR can be used day or night. How TSR Works SmartRadar includes a new boost in anti-falsing software to eliminate excessive alerts from erroneous X- and K-band sources, such as traffic flow-monitoring systems. These systems, which are becoming more widely used in several countries, generate K-band signals to measure the flow of traffic on a given road.
-
Page 18: Troubleshooting
Detector is in AutoMute mode. See “AutoMute” in the Settings softer after the first few alerts. and Preferences section for details. The power-on sequence reoccurs A loose power connection can cause SmartRadar to be briefly while you are driving. disconnected and will retrigger the power-on sequence. Check all connections. - Page 19 Turn off your detector, wait 30 seconds, then turn it back on. On your iPhone, turn Bluetooth off and then on again. In the Bluetooth Settings menu of your iPhone, tap the arrow icon next to SmartRadar, then tap Forget this Device. Unplug the power cord from SmartRadar, wait 10 seconds, and plug it back in.
-
Page 20: Fcc Compliance Notice
To update your software, follow these simple steps: 1. Connect the mini USB end of a USB data cable to the SmartRadar receiver. 2. Plug the standard USB connector end of the cable into your computer. -
Page 21: Parts And Accessories
Parts and Accessories Replacement parts are available through your dealer. The following optional accessories are available for use with SmartRadar: Mini Display Controller with 12-ft Cord….…$XX.XX Standard Coiled SmartCord………………………$29.95 Available in red or blue Direct-Wire SmartCord……………………………..$29.95 Zippered Travel Case………………………………..$14.95 SHIFTER ZR4™…………………………………………$249.95... -
Page 22: Warranty
This warranty gives you specific rights. You may have other legal rights, which vary from state to state. This warranty does not apply if the serial number on the SmartRadar housing has been removed or if your SmartRadar device has been subjected to physical abuse, improper installation, or modification. - Page 23 ® ©2012 ESCORT Inc. ESCORT , ESCORT Live!™, SmartRadar™, SpecDisplay™, and TrueLock™ are trademarks of ESCORT Inc. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
