Escort PASSPORT S75G Quick Reference

How To Use Preferences
An example
PASSPORT is ready to go, just plug it in and turn
it on, but you can also easily change features for Here is how you would turn PASSPORT's AutoMute
feature off.
your preferences. There are 10 user-selectable
Preferences so you can customize your S75G for
your specific driving needs. 1 Enter Preferences by holding both the MRK and
BRT buttons down for 2 seconds. PASSPORT will

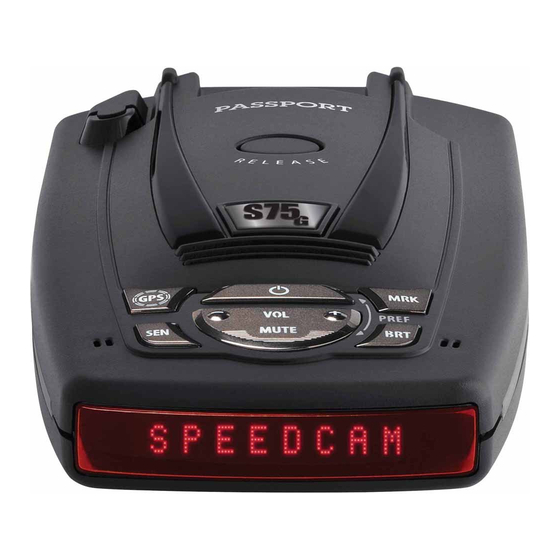

The buttons labeled "MRK" and "BRT" are used to
beep twice and display .
Prefs
enter Preferences, REVIEW your current settings,
and to CHANGE any settings as desired. The word
2 Then hold the "BRT" button down. PASSPORT will
PREF is located on the top of the detector, and is
scroll through the categories, starting with Pilot
highlighted in colored graphics.
Light ( Pilot ), then SpeedAlert ( sAlrt
sequence ( PwrOn ), then Signal strength meter
How to use Preferences
( ), and then AutoMute (
Meter aMute
1 To enter Preferences, press and hold
the "MRK" and "BRT" buttons down for 2
3 Release the "BRT" button when PASSPORT
seconds. The unit will beep twice, and will
shows the AutoMute item. Since the factory
display the word Prefs .
setting is for AutoMute to be on, PASSPORT will
display aMute ON .
2 Then press the "BRT" button to review the
If you accidentally don't release the "BRT" button
current settings. You can either tap the button
in time, and PASSPORT goes to the next category,
to change from item to item, or hold the button
simply hold the "BRT" button down again, and
to scroll through the items.
after PASSPORT scrolls through all categories, it will
begin again at the top of the list.
3 Press the + or - button to change any setting.
You can either tap the button to change from
4 Press the + or – button to change from
setting to setting, or hold the button to scroll
to .
aMute ON aMute OFF
through all the options.
5 To complete choosing your Preferences, simply
4 To exit Preferences, simply wait 8 seconds
wait 8 seconds without pressing any buttons, or
without pressing any button, or press the
press the power button . PASSPORT will display
power button . The unit will display
Complete , beep 4 times, and return to normal
, beep 4 times, and return to normal
Complete
operation.
operation.
6
1220057-1_S75G_QRG.indd 1-4
Settings & Preferences
Press the BRT button to go from
one category to the next
Pilot Light
Pilot HWY
(Power-on indication) Pilot H
Pilot H.>
Pilot V
Pilot SPD
SpeedAlert
sAlrt ON
sAlrt OFF
AutoLearn
aLrn ON
aLrn OFF
), Power-on
Signal Strength Meter
Meter STD
Meter EXP
).
Meter SPC
AutoMute aMute ON
aMute OFF
AutoPower aPwr ON
aPwr OFF
Units Units ENG
Units MET
Press and hold the MRK
Voice Voice ON
and BRT buttons to access
Voice OFF
Preferences. To exit
Bands Bands DFT
Preferences, simply wait
Bands MOD
a few seconds without
pressing a button. The unit
Press MRK to modify
will display Completed to band preferences and
go from one category
confirm your selections.
to the next X
K
Ka
POP
LSR
TSR
Markers
Marks
Marks
rCam
sCam
sTrap
Othr
*Default Setting
7
Press the + or – button to change Notes for Settings & Preferences
your setting within a category
For descriptions of features and functions available
when connected to SmartCord Live with ESCORT
* Full word: Highway or Auto or City
Live visit EscortRadar.com and download the
Letter: H or A or C
SmartCord Live user manual for your iOS or Android
Letter, with scanning dot
Vehicle voltage
OS smartphone. To view serial number and
Vehicle speed
software revision press MRK and MUTE while
* Displays current speed during alert
powering on detector.
SpeedAlert feature off
* Automatically locks out false alarms
AutoLearn is off Restoring the Factory Default Settings:
* Standard signal strength meter To restore your PASSPORT to its original factory
ExpertMeter mode
settings, press and hold the "SEN" and "BRT"
SpecDisplay mode
buttons while turning the power on. A Reset
* Audio alerts increase automatically
message will be displayed, accompanied by an
Audio alerts are controlled manually
audible alert acknowledging the reset.
* Turns detector off after 4 hours
AutoPower feature is off
Software Updates
* Speed/distance in English units
PASSPORT's red light and speed camera database
Speed/distance in Metric units
is easily updated using our exclusive detector
* Voice announcements on
software tools found on our web site. Firmware, or
Voice announcements off
the operating software for the detector, can also
* Default settings
be updated using these tools.
Bands have been modified
In order to have access to these updates, you must
Press + or – to change your
register your PASSPORT at www.EscortRadar.com.
setting within a catagory
Once registered, you will receive email
ON or OFF (default is on)
notifications that updates are now available for
ON or OFF (default is on)
your database or firmware.
ON or OFF (default is on)
ON or OFF (default is off)
To install your software and DEFENDER updates,
or (default is on)
ON OFF
connect your PASSPORT to a computer via USB/
ON or OFF (default is on)
USB Mini B cable to use the software tools.
DFT
MOD
ON or OFF (default is on)
ON or OFF (default is on)
ON or OFF (default is on)
ON or OFF (default is on)
S75G QRG artwork: AW-1220057-1C Rev C
S75G QRG artwork: AW-1220057-1C Rev C
Contact Us
Registration
Register now to enter your new PASSPORT for our
product warranty and qualify for special offers at
EscortRadar.com
Info & Accessories
800.433.3487
EscortRadar.com
Designed in the USA by Escort, Inc.,
Manufactured in the Philippines
ESCORT Inc.
5440 West Chester Road
West Chester OH 45069
Sales/Service 800.433.3487
www.EscortRadar.com
©2017 ESCORT Inc. ESCORT®, PASSPORT®, TrueLock™, SpeedAlert™,
AutoLearn™, AutoSensitivity™, SmartMute™, MuteDisplay™, SpecDisplay™,
and ExpertMeter™ are trademarks of ESCORT Inc.
FCC NOTE: Modifications not expressly approved by the manufacturer
could void the user's FCC granted authority to operate the equipment.
FCC ID: QKL9XM4
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received
including interference that may cause undesired operation.
