Comcast XfINITY User Manual page 9

Coax Cable Connection with VCR
Connect & Power Up
1. Find the coax cable that runs from the wall outlet to the back of your VCR. Remove the end connected to
the back of your VCR and connect it to the Cable In connection on the back of your DTA.
2. Connect the coax cable included in this kit from your DTA to the Cable In/RF In connection on the back of
your VCR. Optional: Don't like the DTA laying on top of your TV? Hide it using the Remote Control Signal
Receiver in your kit. Instructions are on the label.
3. Plug the round end of the power cord into the Power input on the back of your DTA. Then plug the other
end into an electrical outlet.
4. Turn your TV on. Confirm that your TV is now on. Tune to Channel 3. Set the switch on the back of your
DTA to Channel 3.
Black screen? Switch both your TV and DTA to Channel 4.
5. Place the batteries in your Remote Control.
6. To program your Remote, locate the booklet that came with your Remote Control and follow the
instructions. You can do this now or later.
7. Do you have other kits to set up? If so, do that now.
XDTA OOBE SIK 1010.indd 9

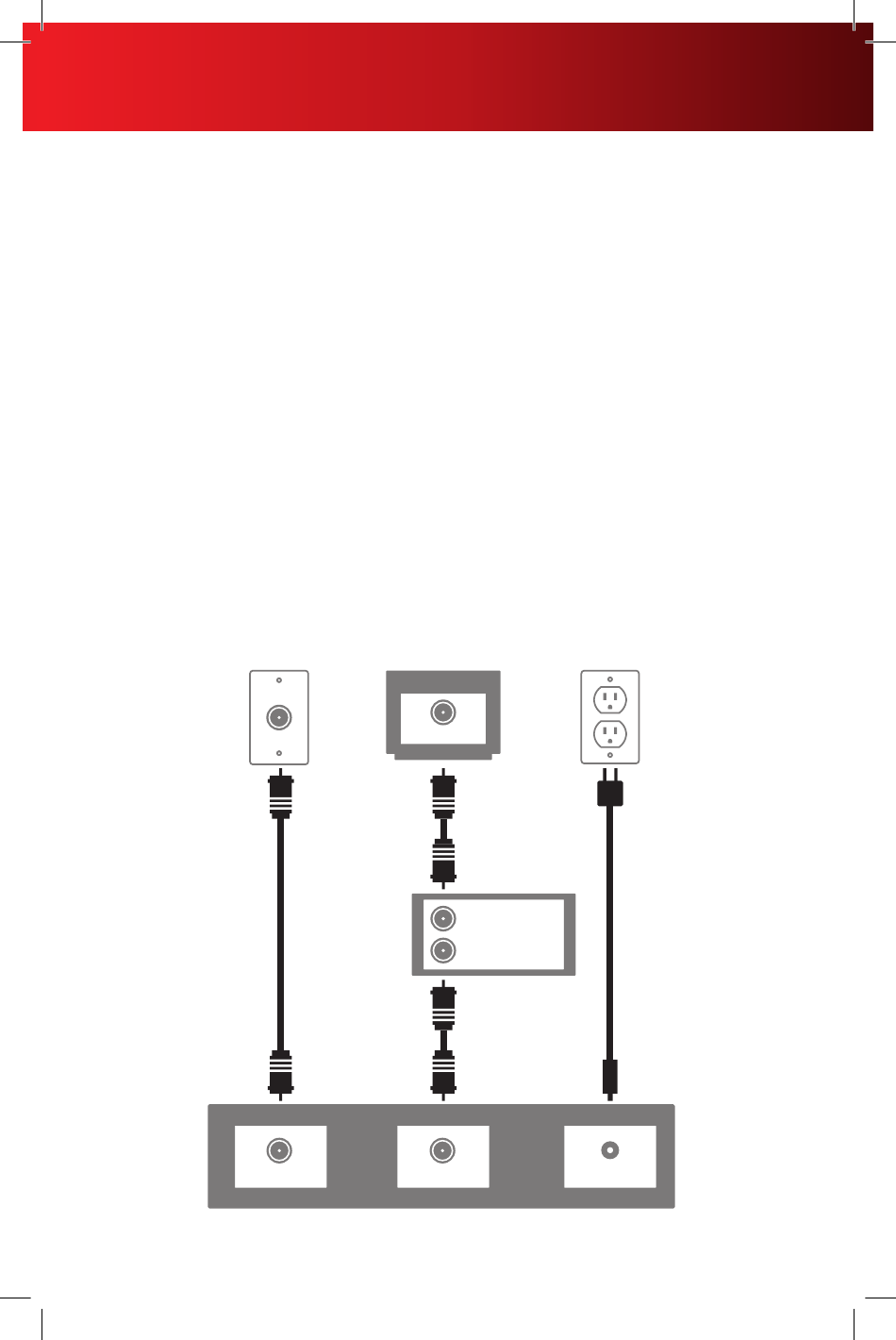

DTA Set-Top Box Connections
Cable Wall Outlet
Coax Cable
Cable In
Back of DTA Set-Top Box
Back of TV Electrical Outlet
Cable in/RF in
Coax Cable
Back of VCR
Cable out/RF out
Cable in/RF in
Coax Cable
To TV
Power Cord
Power
9/30/10 3:03 PM
9
