6.3.1. Configuration of RF InitConfig Options
RF InitConfig options are listed in the upper part of Figure 6-2. Please refer to Table 6-3 for
a description of this configuration.
Items
TxTargetPowerConfig
LowPowerMode
CrystalFreq
Espressif
!

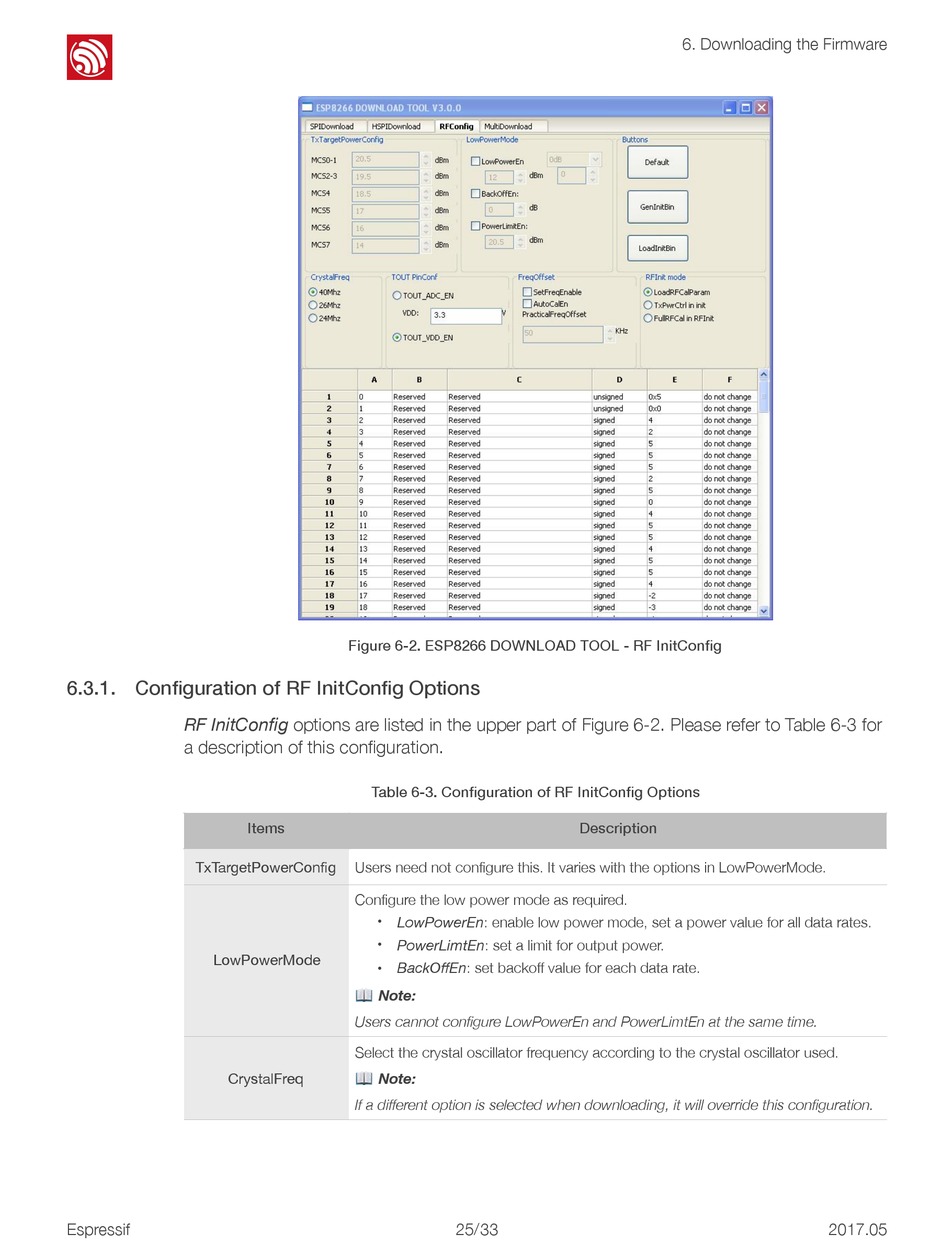

Figure 6-2. ESP8266 DOWNLOAD TOOL - RF InitConfig
Table 6-3. Configuration of RF InitConfig Options
Users need not configure this. It varies with the options in LowPowerMode.
Configure the low power mode as required.
LowPowerEn: enable low power mode, set a power value for all data rates.
•
PowerLimtEn: set a limit for output power.
•
BackOffEn: set backoff value for each data rate.
•
�� Note:
Users cannot configure LowPowerEn and PowerLimtEn at the same time.
Select the crystal oscillator frequency according to the crystal oscillator used.
�� Note:
If a different option is selected when downloading, it will override this configuration.
