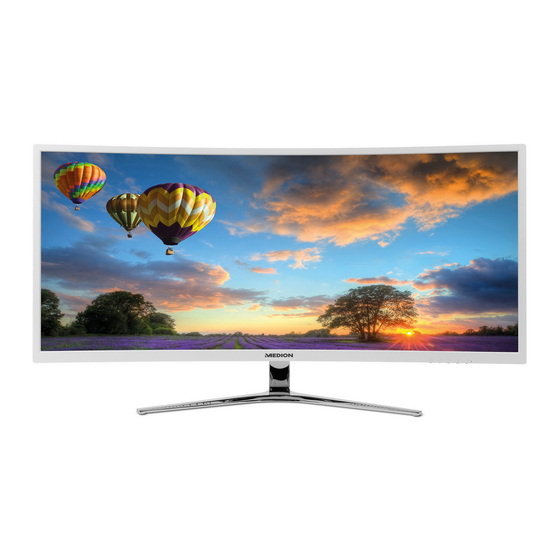

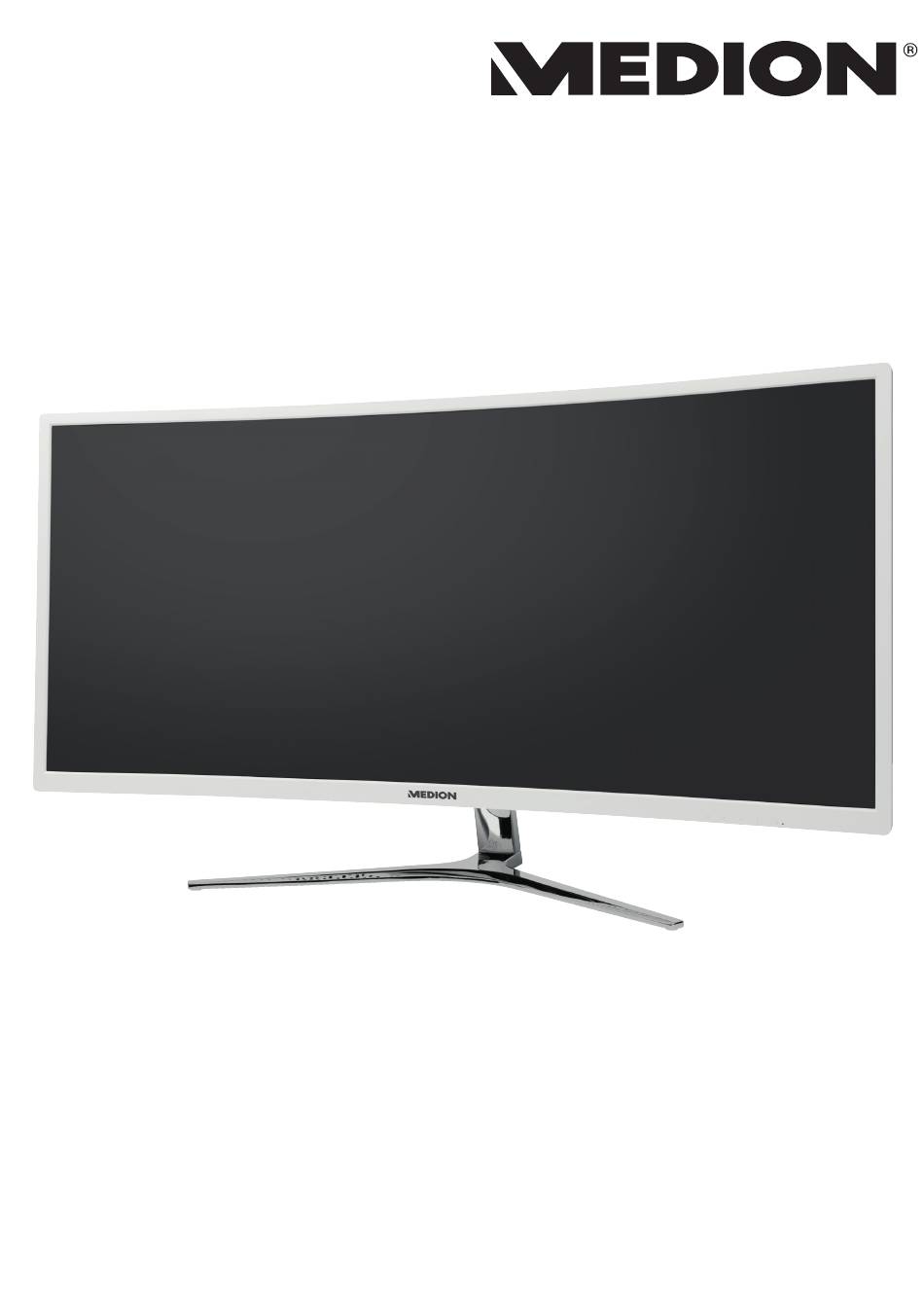

- Page 1 Instruction manual 86.4 cm (34“) LED Backlight Monitor MEDION AKOYA ® ® X58434 (MD 22434)
-
Page 2: Table Of Contents
Table of Content About these Instructions ..................... 3 1.1. Warning symbols and key words used in these instructions ...........3 Proper use ..........................4 Declaration of conformity ....................4 Safety instructions ....................... 5 4.1. Operating safety ............................5 4.2. Installation location ..........................5 4.3. -
Page 3: About These Instructions
1. About these Instructions Please be sure to read these operating instructions carefully and follow all instructions given. The instructions will help you to operate the device reliably and help increase its service life. Always store these instructions near the device. Keep these operating instruc- tions so that you can pass them on with the device if you sell it. -
Page 4: Proper Use
− Extremely high or low temperatures − Direct sunlight − Open fire 3. Declaration of conformity Medion AG hereby declares that this product conforms with the essential requirements and the re- maining relevant regulations: • Directive 2014/53/EU • EMC Directive 2014/30/EU •... -
Page 5: Safety Instructions
4. Safety instructions 4.1. Operating safety • This device may be used by children over the age of 8 and by persons with limited physi- cal, sensory or mental abilities or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it. -
Page 6: Repairs
4.3. Repairs • Contact customer services if: − the power cable is burnt or damaged − liquid has penetrated the monitor − the monitor is not operating correctly − the monitor has been dropped or the housing is damaged. • Repairs to your monitor should only be carried out by qualified specialists. •... -
Page 7: Package Contents
5. Package contents Please check your purchase to ensure that all items are included. If anything is missing, please con- tact us within 14 days of purchase. The following items are supplied with your monitor: • Monitor • DVI cable •... -
Page 8: Overview Of The Device
6. Overview of the device 6.1. Front Open/close the menu In the menu: navigate left In the menu: navigate right In the menu: confirm selection Switch on the monitor/switch the monitor into standby mode The operating LED displays the operating state 6.2. -
Page 9: Using The Device For The First Time
7. Using the device for the fi rst time 7.1. Before connecting the monitor It is possible that your existing monitor supports a physical resolution that is not supported by your new monitor. In this case, the image on your new monitor may not appear correctly after it has been connected. -
Page 10: Setting Up And Positioning The Monitor
7.3. Setting up and positioning the monitor PLEASE NOTE! Avoid dazzle, reflections and strong bright-dark contrast in order to protect your eyes. The monitor should never be placed next to a window because this is the brightest part of the room in daylight. -
Page 11: Connecting The Monitor
• Wrists – when working with the keyboard, mouse or trackball, your wrists should be stretched out and not bent at an angle of more than 10°, where possible. Make sure that your wrists are not resting on the table edge itself. •... -
Page 12: Setting The Screen Resolution
7.6. Setting the screen resolution The monitor supports the physical resolutions listed in the table. The aspect ratio of the monitor is 21:9. You will get a distortion-free picture if you select the 3,440 x 1,440 pixels resolution. This is a native 21:9 aspect ratio. -
Page 13: On-Screen Display (Osd) Menu
8. On-screen display (OSD) menu You can use the on-screen display menu to set various functions, such as those for picture or lan- guage. Press the button to activate the OSD. Use the / buttons to select the options from the menus. ... -
Page 14: Power-Saving Features
OTHER LANGUAGE Set menu language POWER OFF Turn automatic switch-off on/off RESET Reset all settings Switch overdrive on/off FREESYNC The function prevents tearing. FreeSync must be sup- ported by the graphics card. GAMMA Select gamma values EXIT Close menu 9. Power-saving features This monitor switches to different power-saving modes which are specified by the respective com- puter/operating system. -
Page 15: Troubleshooting
10. Troubleshooting If problems occur with your monitor, make sure that the monitor has been properly installed. If the problems persist, then read this section for information about possible solutions. 10.1. Picture interference or no picture • The mains cable must be firmly seated in the socket and the power switch (if available) must be switched on. -
Page 16: Pixel Defects On Screens
12. Pixel defects on screens For active matrix TFTs with a resolution of 3,440 x 1,440 5 Pixel pixels, which are each made up of three sub-pixels (red, green, blue), there are a total of approximately 14.9 mil- lion control transistors in use. Due to this very high Rows number of transistors and the associated extremely complex manufacturing processes used, occasionally... -
Page 17: Recycling And Disposal
13. Recycling and disposal If you have any questions about disposal, please contact your sales agent or our service centre. Packaging Your device has been packaged to protect it against transportation damage. Packaging is raw material and can be reused or added to the recycling system. Device Old devices should not be disposed of with the normal household rubbish. -
Page 18: Technical Data
14. Technical data Device Model X58434 (MD 22434) Nominal voltage AC 100-240 V ~ 50/60 Hz 1.3 A Standby: < 0.5 watt Power consumption In operation: < 60 watt (max.) Picture Screen size 86.4 cm (34"), TFT with LED backlight Aspect ratio 21:9 Resolution... -
Page 19: Product Data Sheet
14.1. Product data sheet As per regulation 1062/2010. Power consumption in standby 0.32 Watt Power consumption in off state 0.26 Watt Physical resolution 3,440 x 1,440 pixels... -
Page 20: Legal Notice
Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.
