Medion Akoya X55000 Manual

Medion Akoya X55000 Manual

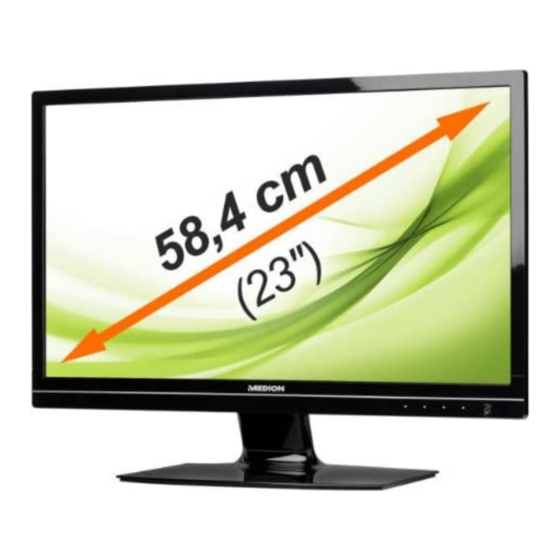

58.4 cm/23'' widescreen lcd monitor

Advertisement

58.4 cm / 23"
Widescreen LCD Monitor
with LED backlight technology
MEDION
AKOYA
®
®
X55000 (MD 20144)
Manual
N26968

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Akoya X55000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Medion Akoya X55000

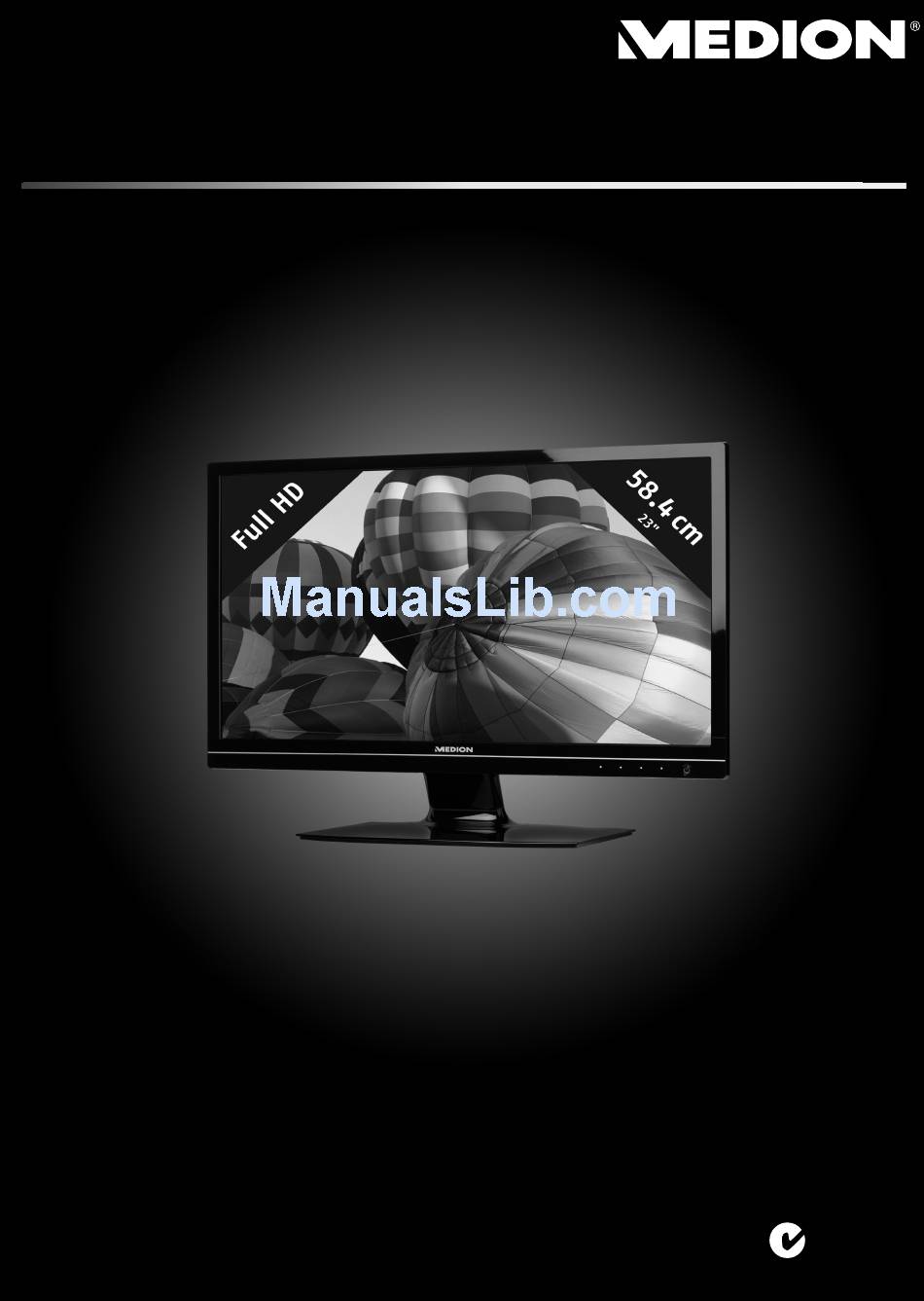

  • Page 1 58.4 cm / 23" Widescreen LCD Monitor with LED backlight technology MEDION AKOYA ® ® X55000 (MD 20144) Manual N26968...
  • Page 2 The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Trade Practices Act and similar state and territory laws. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 3: Table Of Contents

    Driver Information ..........................19  Do You Need Further Support? ....................... 19  Cleaning ..........................20  Disposal ..........................20  Pixel Errors In The Monitor ...................... 21  Reproduction Of This Manual ....................22  Technical Data ........................23  After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 4: Information About These Instructions

    This device has only been conceived for private use. The device is not designed for operation in a heavy industry business. Use subject to extreme environmental conditions can result in damage to your device. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 5: Contents

    1x VGA Cable  1x DVI Cable  1x Audio Cable  1x Power Cord  1x External Power Supply  1x Manual  1x Warranty Certificate  2x Warranty Sticker After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 6: Safety Information

    Pay attention to sufficiently large clearances from walls or enclosures such as a cabinet or wall unit. Maintain a minimum clearance of 10 cm around the device for sufficient ventilation and ensure that any enclosure has suitable ventilation. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 7: Repair

    Maintain at least one metre clearance from high frequency and magnetic sources of interference (television device, loudspeakers, mobile phone, cell phone, etc.), in order to avoid disruptions to function and data loss. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 8: Information About Conformity

    The device complies with the C-Tick requirements. ® This monitor is ENERGY STAR compliant. ® As an ENERGY STAR -Partner, MEDION ensures, that this device complies with the ® ENERGY STAR guidelines for optimal power consumption. After Sales Support Telephone: 1300 884 987...
  • Page 9: Bringing The Device Into Operation

    If you set the output of the PC to 1920 x 1080 and find the text and icons are too small it is preferable to use Windows settings to enlarge them rather than switching to a lower resolution. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 10: Supported Monitor Settings

    60 Hz 1680 x 1050 65.0 kHz 60 Hz 1920 x 1080* 67.0 kHz 60 Hz *Recommended resolution (physical) Supports Settings In The DVI And HDMI Video Mode 480i/480p 576i/576p 720p 1080i/1080p After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 11: Monitor Settings Under Windows Xp

    You will possibly not receive any images if your setting does not correspond to the values supported by your display unit. In this case, reconnect your CRT monitor and set the applicable values in correspondence with the options specified above under “Display properties”. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 12: Monitor Settings Under Windows Vista

    Through Start  Control Panel  Appearance and Personalization by a double click with the left mouse button. (Ill.: Appearance and Personalization)  Select the Display  Adjust screen resolution Menu, to adjust the resolution and the frequency. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 13: Connections On The Back

    (use the same electricity circuit as for the PC). 4 Switch On The Monitor  Switch your monitor on at the Standby/On switch on the front of the device. Finally, switch your computer on. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 14: The Video Workstation

    Highest monitor line at eye level or somewhat below it  Viewing distance: 40 to 70 cm  Leg-room (vertical): At least 65 cm  Leg-room (horizontal): At least 60 cm After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 15: Operating Elements

    Confirm the selection of the parameter to be changed with this button. If you are not in OSD: Select the signal input.  Shows the operational state. You can switch the monitor on or to the Standby mode with this button. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 16: Changing The Parameters Of The Monitor

    The main functions or possible settings through the OSD are explained in the following. (Ill.: OSD menu) Important! The menus described here can differ from those on your monitor because of possible technical changes. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 17 Game is optimum for PC or TV games. Video is optimum for replaying feature films and moving images. Landscape is optimum for displaying pictures of landscapes. Text is optimal for editing and reading text documents. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 18: Energy-Saving Properties

    The monitor will remain in the energy-saving status until you press a key on the keyboard or move the mouse, depending on the operating system. The monitor will need about 2 seconds to switch from the STAND-BY status to the ON operating mode. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 19: Customer Service

     Avoid the use of monitor extension cables. Symbols are displayed darkly, the image is too small or not centered, etc.:  Readjust the respective settings (Setting the monitor, Page 15) After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 20: Driver Information

    If the suggestions in the above section have not solved your problem, please contact the service hotline and we will attempt to help you solve the problem. However, before you contact the MEDION Help Desk on 1300 884 987, please keep the following information available: ...
  • Page 21: Cleaning

    Device At the end of its service life, the device should not be disposed of with the household rubbish. Please enquire about the options for environmentally-friendly disposal. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 22: Pixel Errors In The Monitor

    However, these attempts have for the most part been very complicated and completely different from manufacturer to manufacturer. MEDION follows the strict and transparent requirement of the ISO 13406-2, Class II Norm, which are summarised in brief in the following, in the handling of guarantees for all display products for this reason.
  • Page 23: Reproduction Of This Manual

    Reproduction Of This Manual This document contains legally protected information. All rights reserved. Reproduction in a mechanical, electronic or any other form is forbidden without the written permission of the manufacturer. After Sales Support Telephone: 1300 884 987 Internet: www.medion.com.au...
  • Page 24: Technical Data

    100-240V~, 50/60 Hz 1.2 A  Output voltage 12V DC 3.0 A Copyright © 2011 All rights reserved. This manual is protected by copyright. ® The copyright is the property of the MEDION Company. Trademark: ® ® ® MS-DOS and Windows are registered trademarks of the Microsoft Company.
  • Page 25 MEDION Australia Pty Ltd St. Leonards NSW 2065 Australia MEDION Help Desk 1300 884 987 australia@medion.com www.medion.com.au...
