Bowflex SelectTech Stand User Manual page 2

Tools (included)
3mm
6mm
Item Qty Description
1 1 Bottom Cross Brace
2 1 Stand Leg, Left
3 1 Stand Leg, Right
4 2 Rear Stabilizer
5 2 Dumbbell Platform
6 1 Media Tray
7 2 Retaining Strap

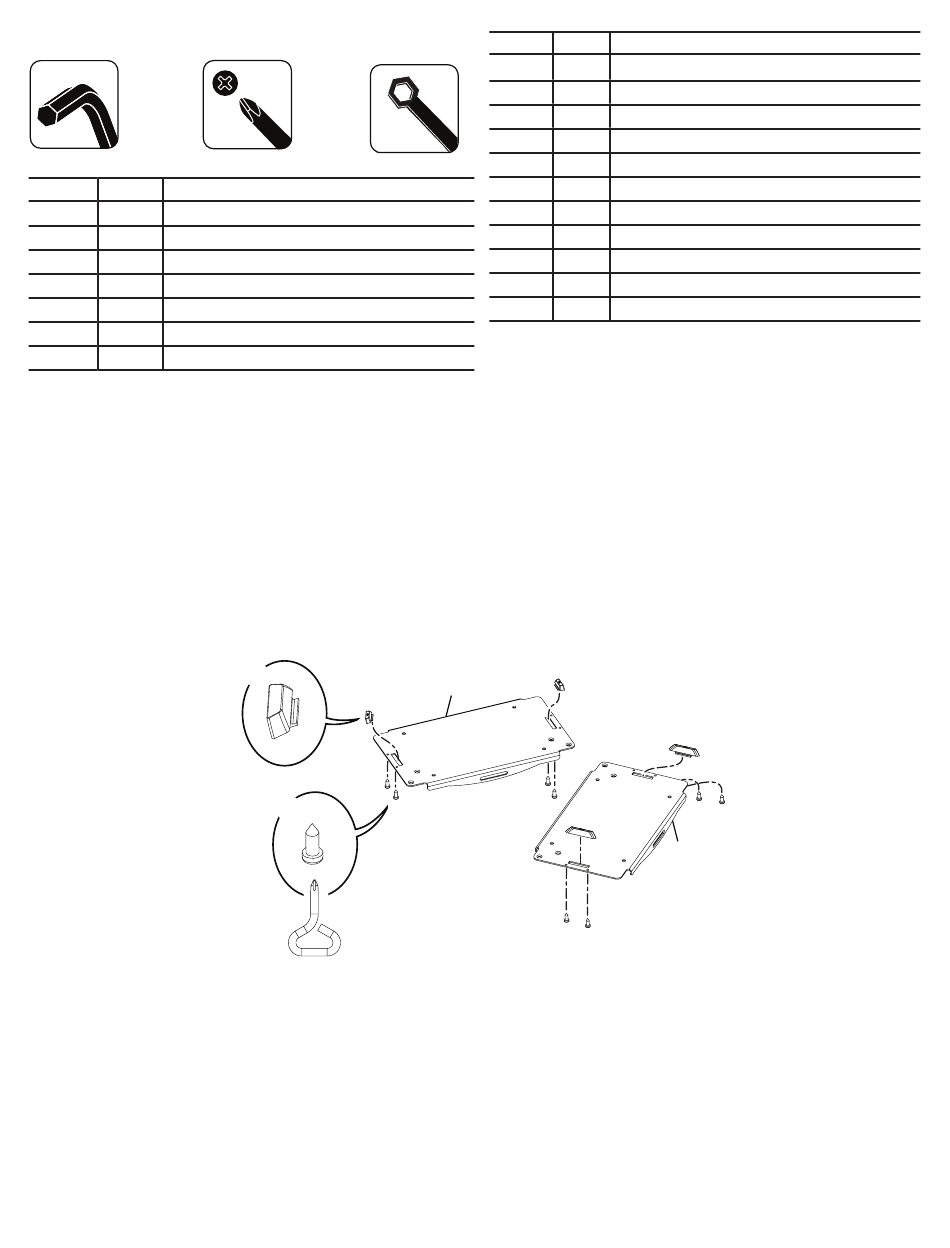

Step 1. ( for the 552 or 1090 )
Attach the Appropriate Bumpers for Your Dumbbell
#2
X4
F
X8
E
#2
Item Qty Description
A 8 Button Head Cap Screw, M10x1.5x20
B 16 Flat Washer, M10
C 4 Securing Nut, M10
D 4 Button Head Cap Screw, M10x1.5x70
E 8 Pan Phillips Screw, M3.5x9.5
F 4 Bumpers (for 552 or 1090 dumbbell)
G 4 Flat Head Cap Screw, M5x0.8x12
H 4 Flat Washer, M5
I 4 Securing Nut, M5
J 8 Bumpers (for 560 dumbbell)
K 8 Pan Phillips Screw, M6x16
Note: Select pieces of Hardware have been provided as spares on the
Hardware Card. Be aware that there may be remaining Hardware
after the proper assembly of the equipment.
