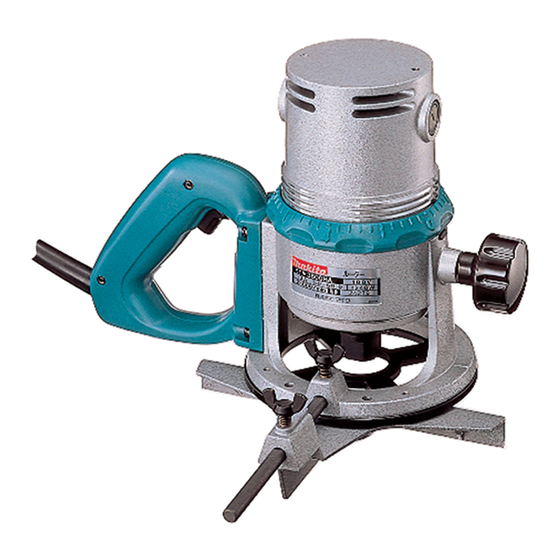

Makita 3600H Instruction Manual

Hide thumbs

Advertisement

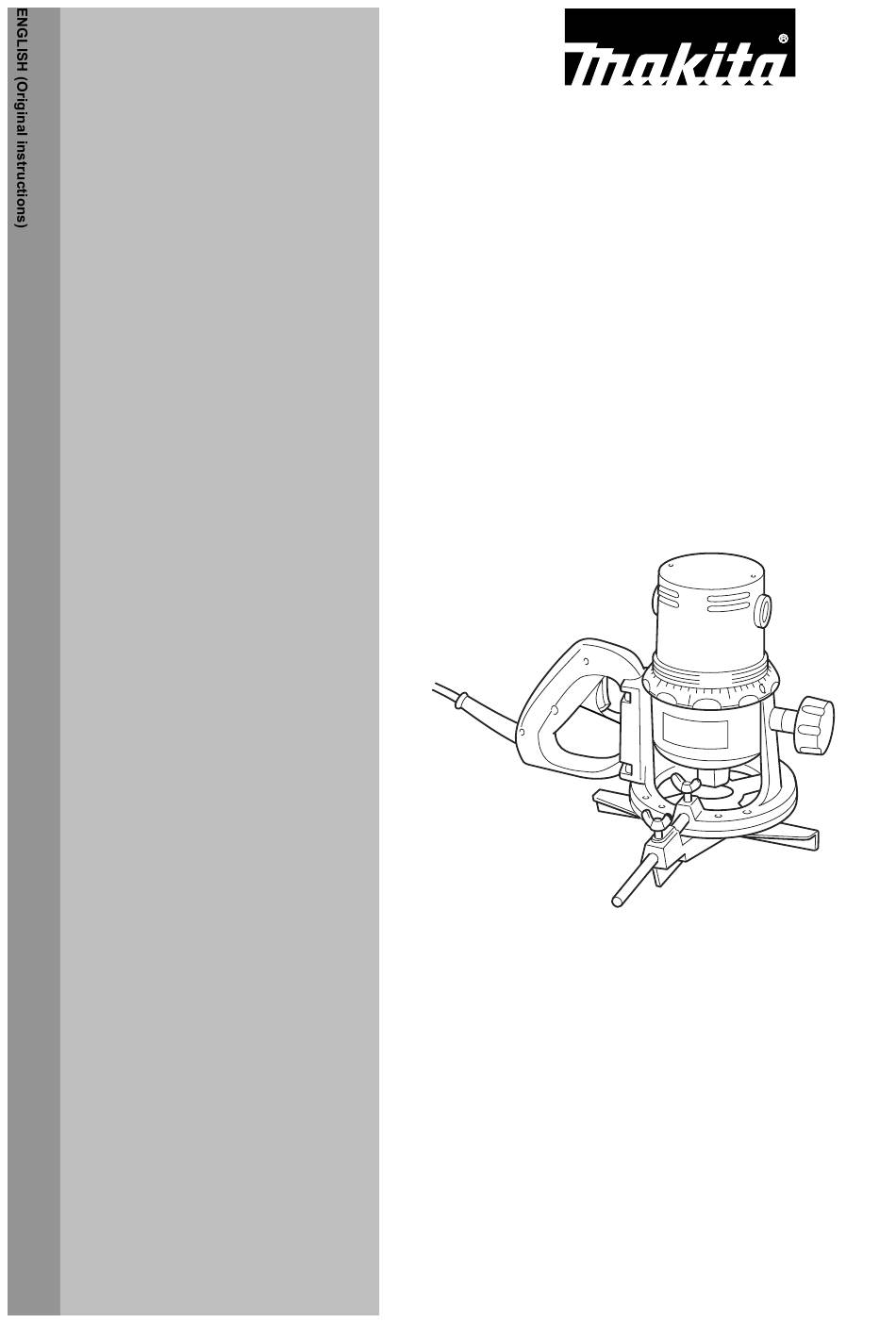

INSTRUCTION MANUAL
Router
3600H
005027
IMPORTANT: Read Before Using.
1

Advertisement

loading

  Related Manuals for Makita 3600H

  Summary of Contents for Makita 3600H

  • Page 1 INSTRUCTION MANUAL Router 3600H 005027 IMPORTANT: Read Before Using.
  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model 3600H Collet chuck capacity 12 mm or 1/2" No load speed (min 24,000 Overall height 210 mm Net weight 4.4 kg Safety class Class I • Due to our continuing program of research and development, the specifications herein are subject to change without notice.
  • Page 3: Router Safety Warnings

    12. Use personal protective equipment. Always 23. Keep cutting tools sharp and clean. Properly wear eye protection. Protective equipment such maintained cutting tools with sharp cutting edges as dust mask, non-skid safety shoes, hard hat, or are less likely to bind and are easier to control. hearing protection used for appropriate conditions 24.
  • Page 4: Functional Description

    15. Use bits of the correct shank diameter FUNCTIONAL DESCRIPTION suitable for the speed of the tool. 16. Some material contains chemicals which may be toxic. Take caution to prevent dust CAUTION: inhalation and skin contact. Follow material Always be sure that the tool is switched off and •...
  • Page 5: Operation

    To start the tool, simply pull the switch trigger. Release Set the tool base on the workpiece to be cut without the the switch trigger to stop. bit making any contact. Then turn the tool on and wait For continuous operation, pull the switch trigger and until the bit attains full speed.
  • Page 6 1. Wing bolt (B) 1. Bit 2. Guide bar 2. Base 3. Wing bolt (A) 3. Templet 4. Straight guide 4. Workpiece 5. Distance (X) 6. Outside diameter of the templet guide 7. Templet guide 005032 003695 To install the straight guide, insert the guide bar into the NOTE: holes in the tool base until the notch in the guide bar The workpiece will be cut a slightly different size...
  • Page 7: Maintenance

    When cutting, move the tool with the guide roller riding If you need any assistance for more details regarding the side of the workpiece. these accessories, ask your local Makita Service Center. MAINTENANCE Router bits Straight bit...
  • Page 8 "V"Grooving bit Board-jointing bit 005118 005123 1/4" 006454 006459 Drill point flush trimming bit Corner rounding bit 005120 005125 006460 006456 Chamfering bit Drill point double flush trimming bit 005126 005121 006457 006462...
  • Page 9 Cove beading bit Ball bearing chamfering bit 005132 005129 1/4" 006464 Ball bearing flush trimming bit 006467 Ball bearing beading bit 005130 005133 1/4" 006465 Ball bearing corner rounding bit 006468 Ball bearing cove beading bit 005131 005134 1/4" 006466 006469...
  • Page 10 Ball bearing roman ogee bit 005135 006470 NOTE: Some items in the list may be included in the tool • package as standard accessories. They may differ from country to country.
