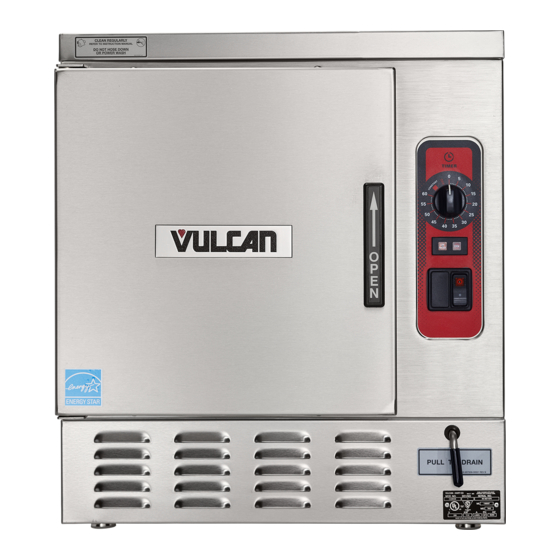

C24EO SERIES
STEAMER
MODEL
ML
MANUAL FILL
C24EO3
ML-136006
C24EO5
ML-136007
AUTO-FILL TECHNOLOGY
C24EO3AF ML-152054
C24EO5AF ML-152055
For additional information on Vulcan or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanequipment.com
VULCAN
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM
INSTALLATION &
OPERATION MANUAL
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
FORM F-37496 Rev. A (10-18)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C24EO3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vulcan-Hart C24EO3

Summary of Contents for Vulcan-Hart C24EO3

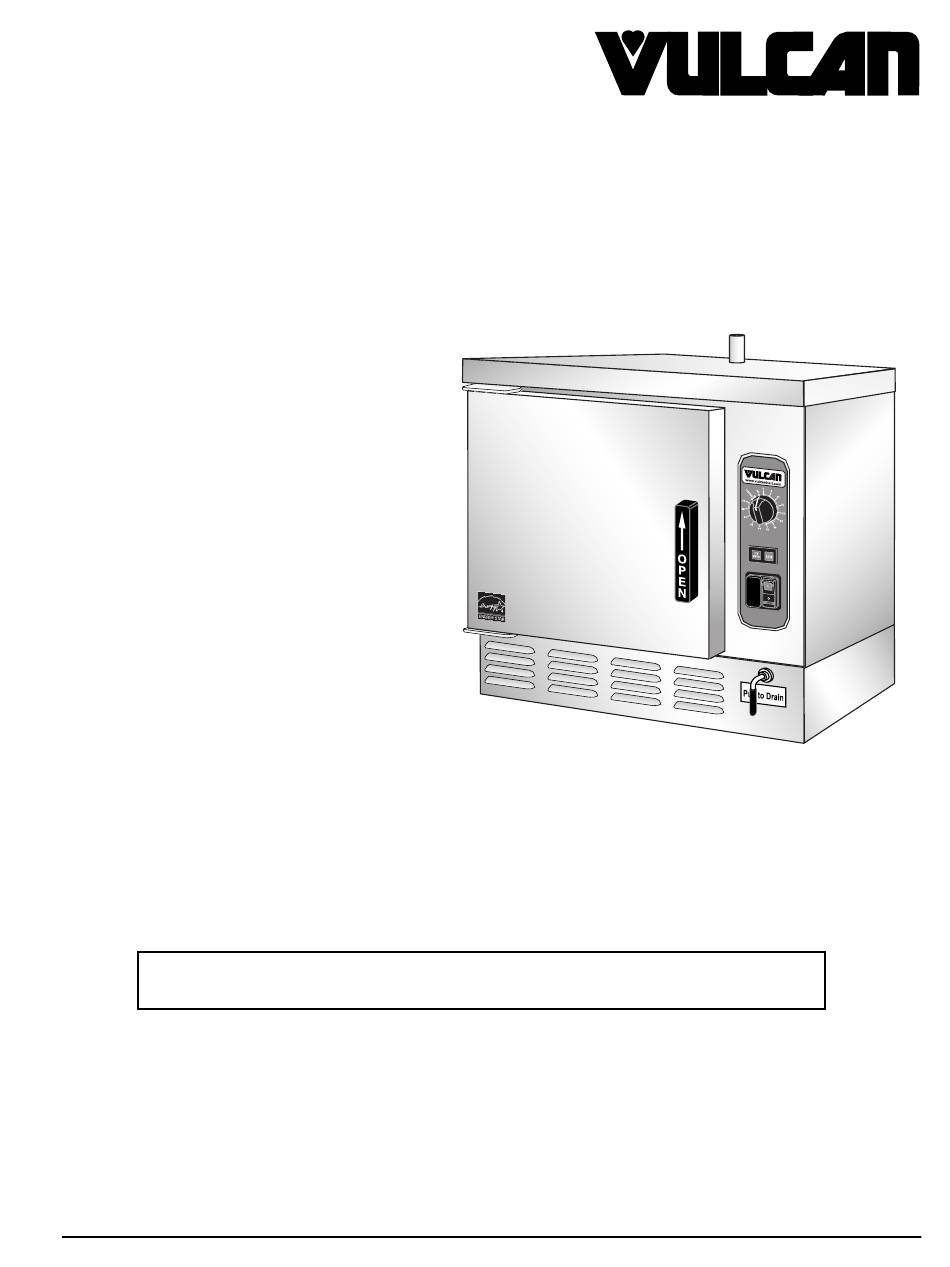

  • Page 1 INSTALLATION & OPERATION MANUAL C24EO SERIES STEAMER MODEL MANUAL FILL C24EO3 ML-136006 C24EO5 ML-136007 AUTO-FILL TECHNOLOGY C24EO3AF ML-152054 C24EO5AF ML-152055 For additional information on Vulcan or to locate an authorized parts and service provider in your area, visit our website at www.vulcanequipment.com VULCAN 3600 NORTH POINT BLVD.
