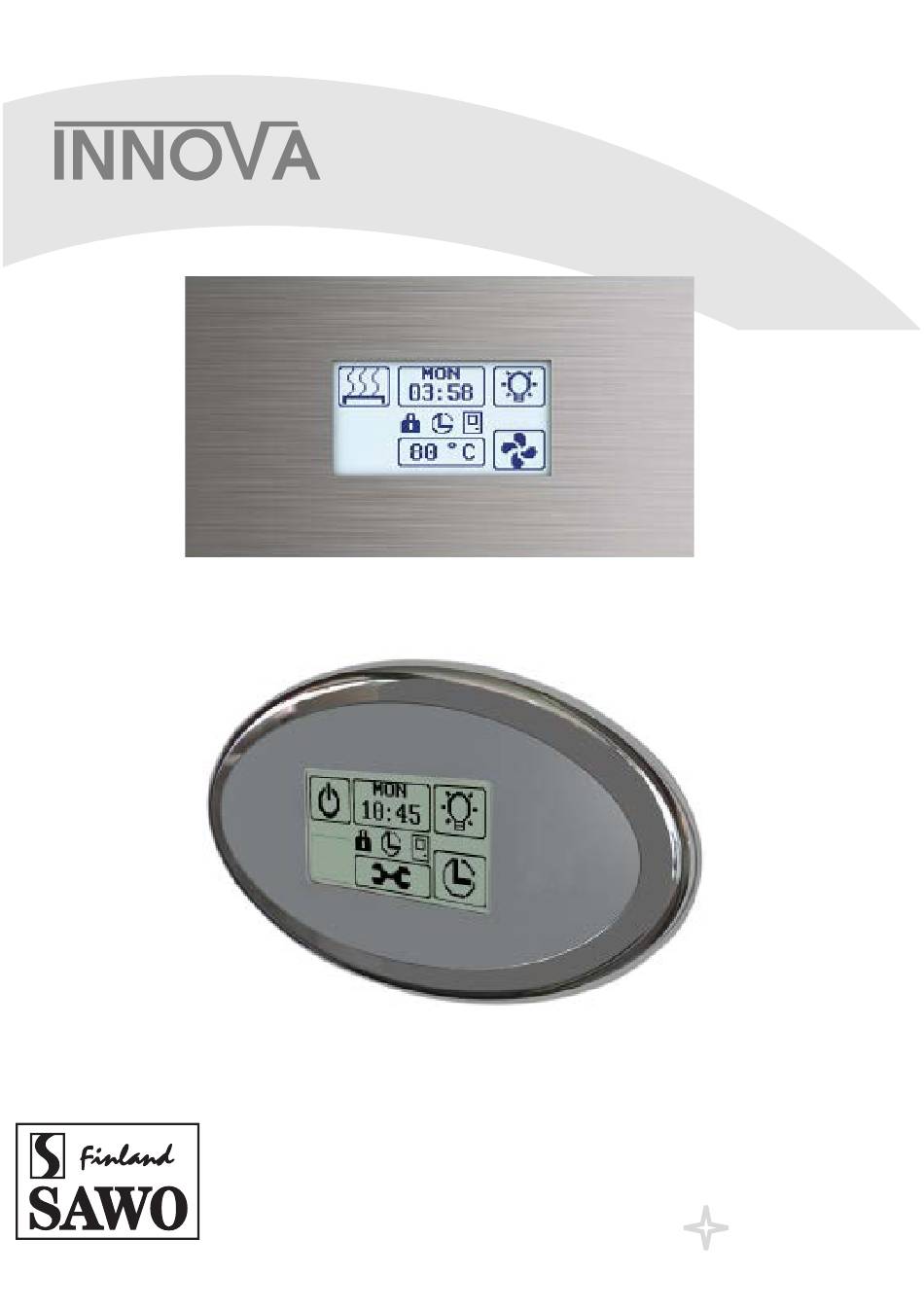

- Page 1 CONTROLS STAINLESS STEEL TOUCH CONTROL TOUCH CONTROL INSTRUCTIONS MANUAL ENGLISH...
-
Page 2: Table Of Contents
Table of Contents Introduction of the Innova Controls Precautions 2. Direction of Use 2.1 Turning on the Control Unit 2.2 Switching the Heater or Steamer On 2.2.1 Temperature 2.2.2 Relative Humidity 2.2.3 Session Time 2.2.4 Fan 2.2.5 Sauna Session 2.2.6 Steamer Session 2.3 Switching the Control Unit On/Off... - Page 3 3. Remote and Alarm Connections 3.1 Emergency Alarm 3.2 Remote On 4. Assembly and Installation 4.1 Control Unit to Heater Connection Diagram 4.2 Power Controller 4.3 Contactor Unit 4.4 Sensors 4.4.1 Sensor Location with Heaters Mounted on the Wall 4.4.2 Sensor Location with Heaters Mounted on the Floor 4.5 Maximum Session Time 4.6 Door Sensor (Optional) 4.7 Fan (Optional)
-
Page 4: Introduction Of The Innova Controls
Innova Control Unit is developed to enhance your sauna bathing with a variety of features. It can adjust temperature, humidity, ventilation and light option in your sauna. The Innova Control Units are available on a separate or built-in mounting on the Power Controller Board. -
Page 5: Direction Of Use
Settings In easy mode some of the buttons are hidden. This feature makes Innova easy and fast to use. Long press the hidden easy-button for 10 seconds to activate easy-mode. In easy-mode it is still possible to use the heater, steamer and adjust cabin light. -
Page 6: Switching The Heater Or Steamer On
Heater and steamer are turned off pressing the heater on icon in OFF by pressing the heater-icon. After mode. this Innova will automatically go to off-mode. Alternatively, the user can switch the steamer on by pressing the steamer icon in the ON mode. Those features that have animated logo are currently active. -
Page 7: Temperature
Temperature Unit = Celcius saved settings by pressing the OK button. If no keys are pressed within 5 seconds after pressing the temperature button, the changes are saved and innova will go back to previous state. Temperature Unit = Fahrenheit 2.2.2 Relative Humidity... -
Page 8: Session Time
When the heater is on, the sauna icon is animated. You can turn off the heater by pressing the sauna icon. After pressin innova will go to off mode/cabin dry mode. 2.2.6 Steamer Session(available in combi models) When steam session is activated, the session will continue as a normal sauna steamer symbol is animated. -
Page 9: Switching The Control Unit On/Off
2.3 Switching The Control Unit On/off OFF Mode Power “ON / OFF” Cabin light “ON / OFF” Switch OFF Timer The backlight is turned off after 1 minute of inactivity (no key pressed). after 60 minutes of inactivity (no key pressed) and no pending drain, autofan or active autosession display will turn off. 2.3.1 Cabin Light Cabin lights can be switched on and off by pressing Cabin Light button even when the control unit is in... -
Page 10: Pre-Run Timer
Timer 2.4.1 Settings 2.4.2 Pre-run Timer This feature is only available for public saunas, The Innova Touch control unit has a weekly used in condominiums, hotels or other similar timer that can be programmed for every day places. of the week. - Page 11 By pressing OFF-button you can cancel all active timers and go back to OFF-mode. By pressing ON-button you will move on to changing timer settings. Cancel all active timers by pressing the OFF button. Move back to OFF-state Activate steamer* Change selected field You can activate steamer by pressing the steamer icon.
-
Page 12: Pre-Run Timer For Public Saunas With Weekly Timer
2.4.4 Pre-run timer for public saunas with weekly timer OFF-mode When small timer icon is visible, there is active timers at the moment Timer Press timer icon to set timers Weekly timer is only available if max session time setting has adjusted to be 12 hours or more(page Then you can continue to adjust timer settings by 22). - Page 13 You can activate steamer by pressing the Activate steamer* Change selected field steamer icon. By pressing time you can move the cursor from hours to minutes and Confirm changes and return to change the time value from arrow buttons. OFF-mode Adjust time To adjust temperature, steamer* or fan*, from arrows...
-
Page 14: Changing The Settings
2.5 Changing the settings From OFF mode you can access to settings, timer, Easy mode and turn on lights and heater OFF mode Current week day and time Heater ON/OFF Lights ON/OFF Easy mode Timer Settings Long press settings button for 5 seconds to access settings menu. In settings menu you can navigate between settings by using arrows Right and Left, and change the displayed setting by using arrows Up and Down unless mentioned otherwise below. -
Page 15: Other Innova Control Features
Once everything has been set, you may press SAVE to save all the changes, or by pressing ESC to discard all changes. 2.6 Other Innova contorl features 2.6.2 Key lock To lock/unlock screen, press more than 10 When power controller is turned ON again, the seconds the settings icon. - Page 16 4.6 Door Sensor (Optional) 4.8 Dimmer (Optional) In other than household use, it is recom- It is possible to use any suitable lamp of your mended to install door sensor. The door choice in the sauna room. However, if the sensor disables all pre-run operations if the dimmer feature is present on the control unit door is opened while the pre-run count-...
-
Page 17: Technical Diagram
Technical Diagram Control Unit Main Switch Jumper For Fig. 1 1 1 0 1 Maximum Session Time (hours) Adjust this jumper to change max. JPB1 session time. 6hrs is factory default. Fuse Glass Primary Supply For Heaters more than 15 kW (see Contactor Manual) Fuse Glass 160 mA JPB1... -
Page 18: Combi Features
2.7 Combi Features 2.7.1 Steamer These features for steamer are only appli- cable with Combi heaters. 2.7.2 Humidity & Temperature in the Sauna High humidity and high temperature are not choose the relative time for the steamer to allowed simultaneously in the sauna room. be on, within 30-100% of the session time. -
Page 19: Water Refill
2.7.4 Water Refill FILL TEXT WILL APPEAR WHEN WATER LEVEL IS LOW YOU CAN MUTE THE ALARM BY PRESSING FILL TEXT/FAUCET ICON When the water level is low, a low tone will be displayed as long as the user fills the interval beep and “Fill”... -
Page 20: Remote And Alarm Connections
3.1 Emergency Alarm NOTE The innova control has a provision for emergency alarm system. Alarm button must have potential free momentary or latching contacts. Long press OK button to remove the alarm. -
Page 21: Assembly And Installation
4. Assembly and Installation The Innova Control Unit consists of the Innova Control panel, Power Controller and Sensors. The control panel and Power Controller communicate by using a RJ12 cable. If door sensor is used and sauna door is opened during pre run time, all preset timers are inactivated. -
Page 22: Power Controller
4.2 Power Controller The power controller or the separate The heater is connected to the electrical control panel must not be located inside the network semi-stationarily with a H07RN-F sauna room or in places where temperature rubber cable or its equivalent. The use of can exceed +40°C. -
Page 23: Sensors
4.4 Sensors However, if the heater is more than 200mm from the wall, place the sensor to the One or two sensors can be connected to the ceiling, over the heater, as shown in the Power Controller. The first sensor measures figure 8 &... -
Page 24: Sensor Location With Heaters Mounted On The Floor
Fig.9 4.4.2 Sensor location with heaters mounted on the floor more than 200mm from the wall Top view Side view SENSOR 2 (Optional) Min. 1000mm Fig.8 A I R V E N T A I R V E N T CEILING TS1 TEMPERATURE SENSOR IN CEILING... -
Page 25: Door Sensor (Optional)
Cut the wall section according to the place. specifications. Connect the RJ12 cable provided from the control panel to the Power Controller. Check if your Innova control has oval NOTE shaped or rectangular shaped back cover before making the hole for the separate control panel. -
Page 26: Installation For Separate Control Panel
4.10 The Control Unit Main Switch The control unit switch can be found on the top end of the unit. Using this switch, you can isolate the electronics from the mains power supply. In order to put the unit into operation, switch to the first position (switch position I). -
Page 27: Troubleshooting
5. Troubleshooting If an error occurs, the heater will be switched off. There will be a high tone warn- ing beep for 2 seconds. Text “ERROR” will be blinking in the display with the error description. See more details on the table below. -
Page 28: Symbol Reference
6. Symbol Reference Short press To switch on – Manual Sauna session Long press and no pending drain, Switch display o autofan or active autosession Dat eand time Change date and time from settings Short press Light on/o Short press (if dimmer feature available) set Cabine Light brightness Press >... - Page 29 Buttons Selector UP Heater ON 1 ANIMATED Selector DOWN Steam ON 1 ANIMATED Selector LEFT Light 1 / Light OFF ANIMATED Selector RIGHT Fan1 / Fan OFF ANIMATED Day & Session Time Session Time Celcius Room Tempeture Fahrenheit Humidity Preset Day Steam Strength Preset Selected Day ON/OFF Button...
- Page 30 Indicators Key Lock Error 1 Autodrain Preset time activated Door Lock Save and Exit Error 2 Preset Time Error 3 Steam Generator is remotely controlled Activate Error 4 Control Alarm Day and Time Error 5 Cabin Dry Error 6 Hours Low Water Level Minutes Combi Tank (Alternate)
- Page 31 Switching capacity per phase Humidity Sensor Note! Only incandescent light bulbs are allowed to use with Innova sauna controller. Light fixtures using electronic transformers for example LED lights, compact fluorescent lights and other similar lights are not compatible with Innova sauna controller.
