Installation Instructions
Cylinder Busbar Identification
Kit 176F6517
90/110/132 kW power rating
V-phase busbar: 64 mm x Ø16 mm
U/W-phase busbar: 71 mm x Ø16 mm

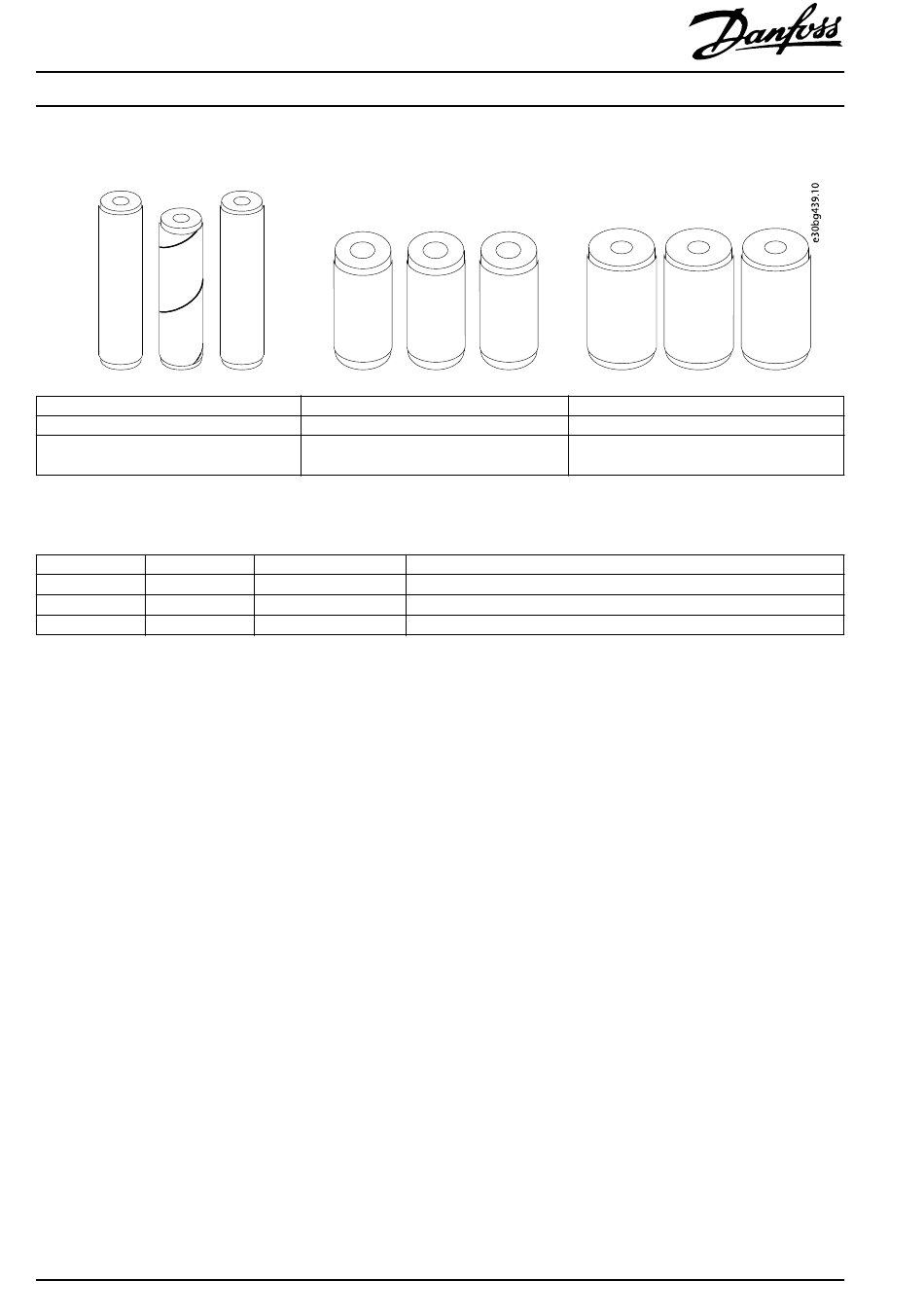

Illustration 1.1 Current Sensor Cylinder Busbars
Busbar kit Current sensor kit Kit description
176F6517 176F6516
176F6757 176F3752
176F6756 176F3737
Table 1.4 Comparison of Current Sensor Cylinder Busbar Kits
2
Current Sensor Cylinder Busbar Kit (D1h–D8h)
®
VLT FC Series FC 102, FC 103, FC 202, FC 302
Kit 176F6757
160 kW power rating
U/V/W-phase busbar:
49 mm x Ø19 mm
Installation instruction
300 A D1 retro fit kit 300 A Current Sensor Kit for D1h/D3h/D5h/D6h Drives
300 A D2 retro fit kit 300 A/500 A Current Sensor Kit for D2h/D4h/D7h/D8h Drives
500 A D2 retro fit kit 300 A/500 A Current Sensor Kit for D2h/D4h/D7h/D8h Drives
Danfoss A/S © 08/2018 All rights reserved.
Kit 176F6756
200/250 kW power rating
U/V/W-phase busbar:
49 mm x Ø25 mm
MI70Z202
