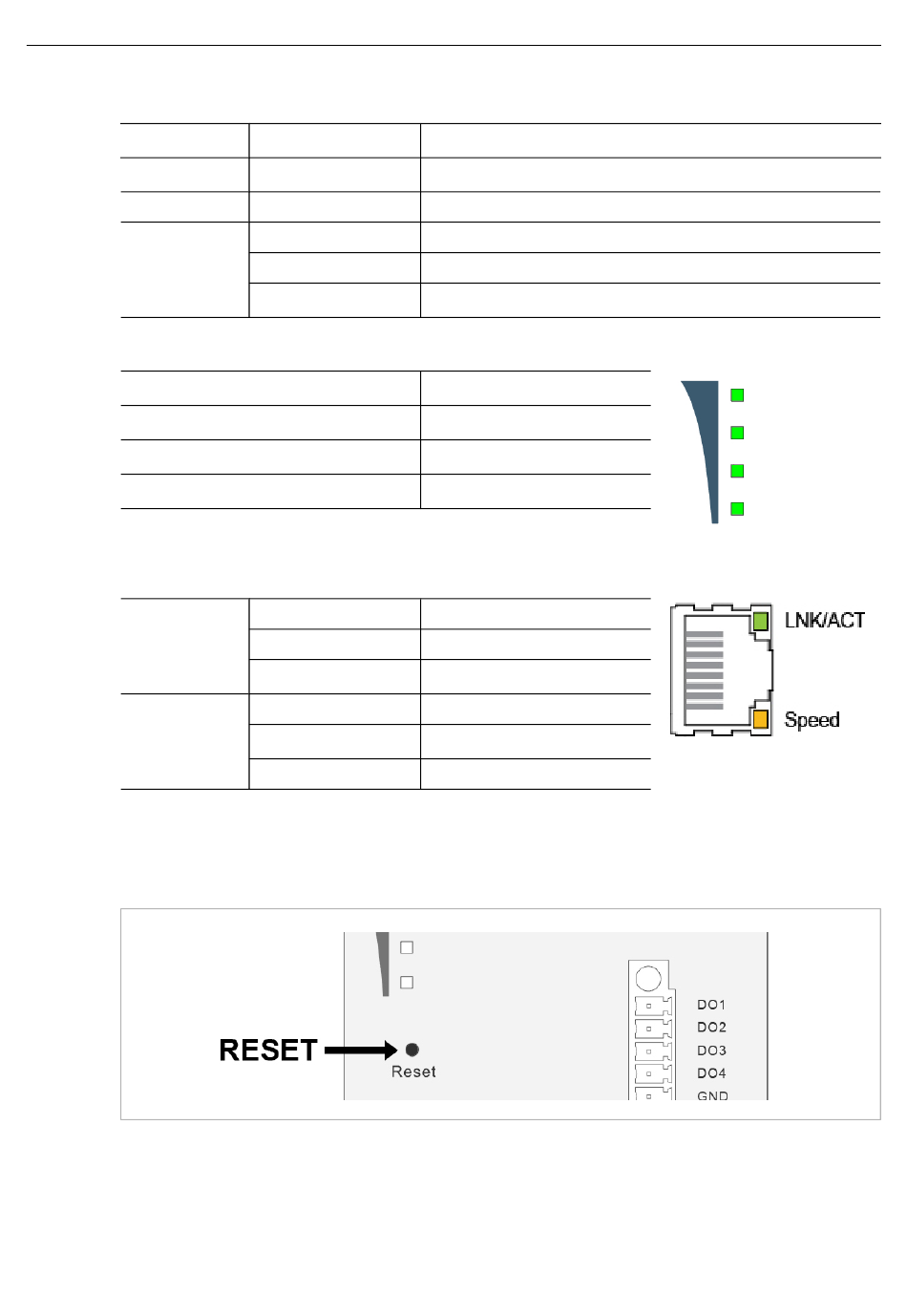

Led Indicators; Factory Reset - HMS Anybus WLAN Access Point IP30 Startup Manual

Installation
2.3

LED Indicators

PWR1
PWR2
FAULT
WLAN
4 LEDs
2–3 LEDs
1 LED
All unlit
ETH1/ETH2 LEDs
LNK/ACT
Speed
2.4

Factory Reset

To restore the factory default settings, press and hold RESET on the front panel
until the power LED indicator(s) starts to flash, then release the button.
Anybus ® WLAN Access Point IP30 Startup Guide
Green
Green
Red
Off
Green
Green, flashing
Off
Green
Green, flashing
Off
Orange
Green
Power input 1
Power input 2
General error
No WLAN link
WLAN link established
WLAN traffic
Strong WLAN signal
Adequate WLAN signal
Weak WLAN signal
No WLAN signal
No link
Link established
Ethernet traffic
No traffic
10/1000 Mbit/s
100 Mbit/s
