Installation
2.1
Overview
1
2, 6
3
4
5
7
8
9
10

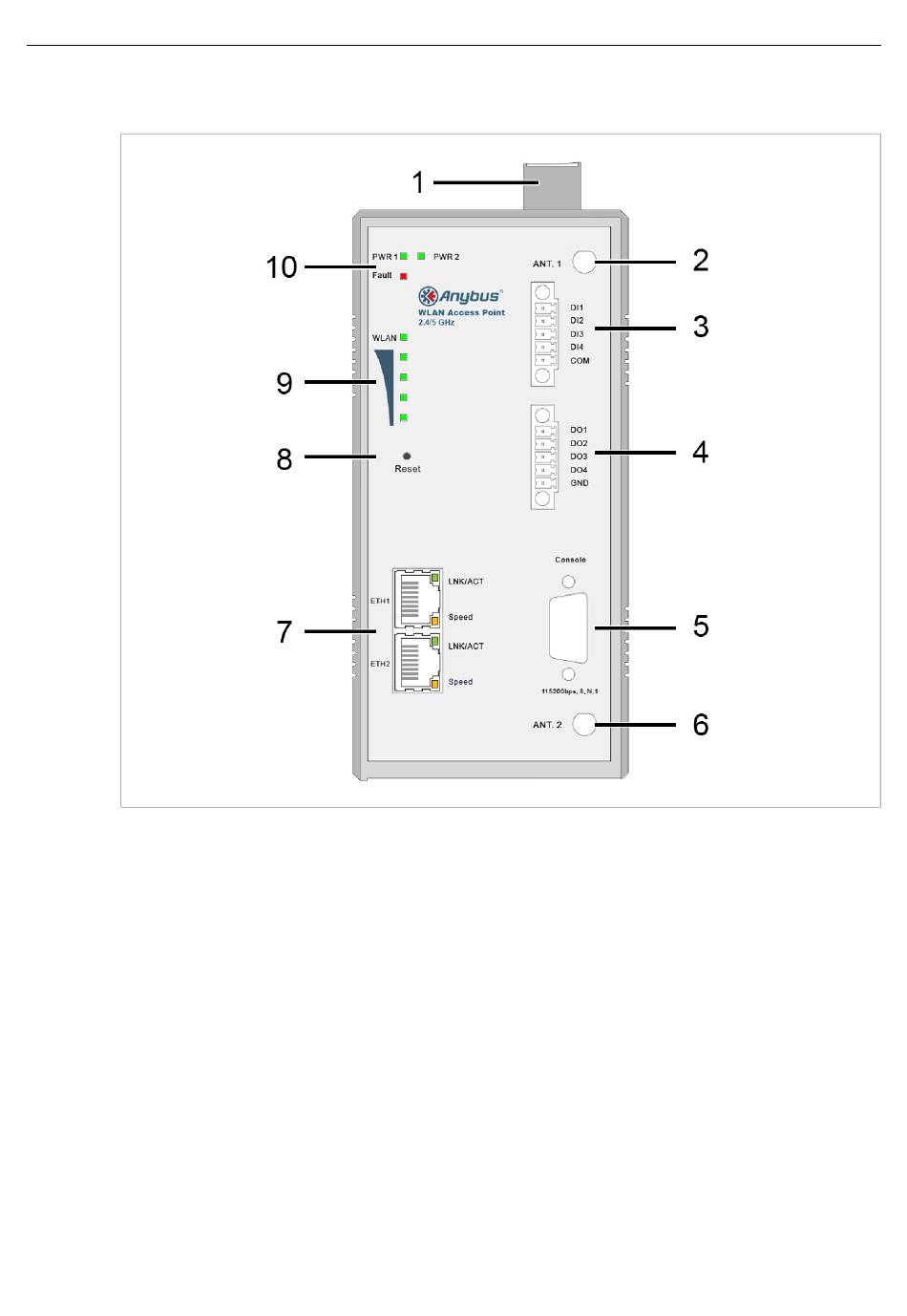

Anybus
®
WLAN Access Point IP30 Startup Guide
Power connector
Antenna connectors
Digital inputs
Digital outputs
Console connector (not used)
Ethernet connectors
Reset button
WLAN signal LEDs
Status LEDs
5 (12)
SP2382 EN 1.1
