Installation

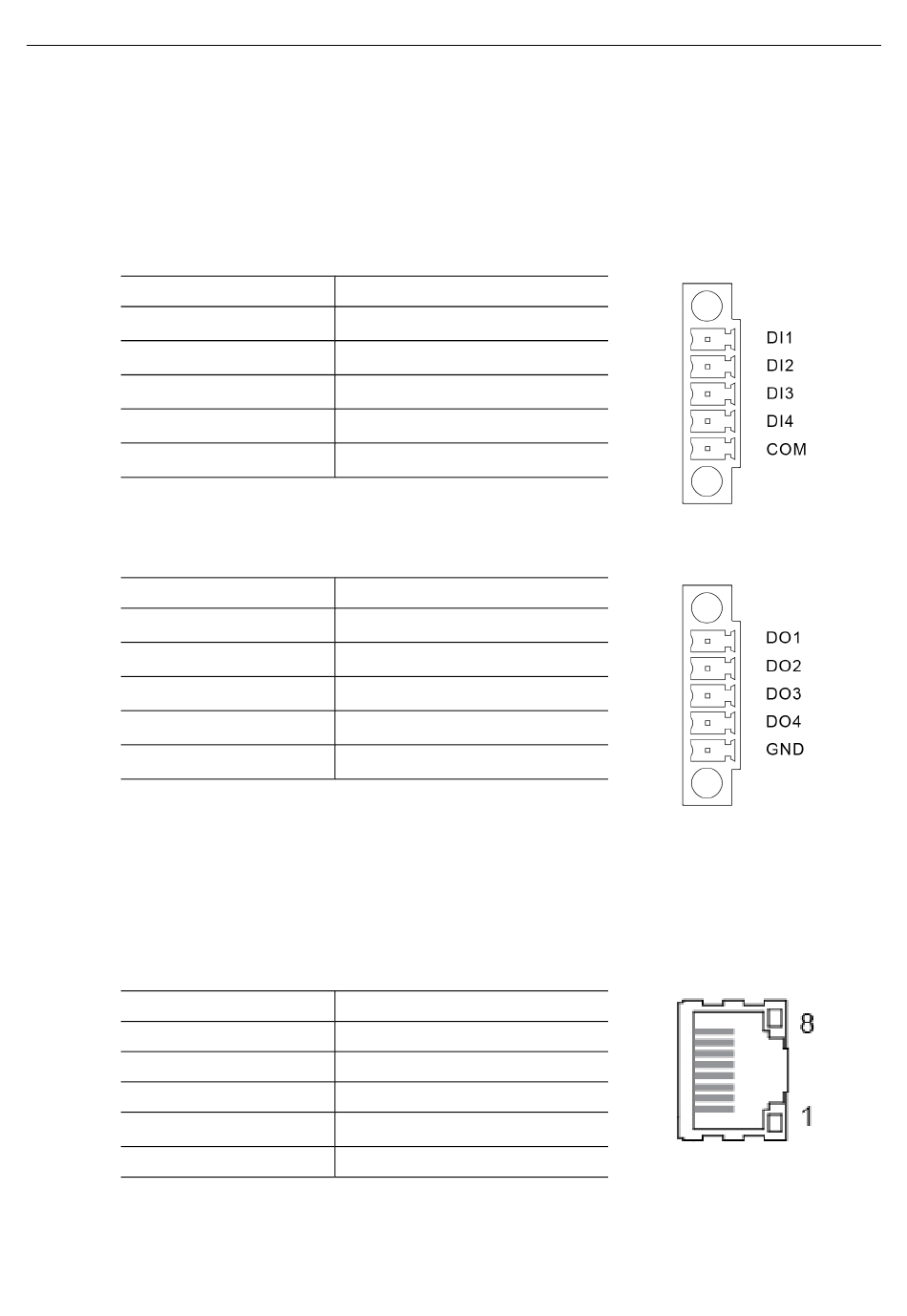

2.2.2 Digital In/Out Connectors
Anybus WLAN Access Point IP30 has 4 digital inputs and 4 digital outputs that
can be used for monitoring and controlling purposes. See the description of the
DIDO settings in the User Manual for more information.
Digital Inputs
Pin
DI1
DI2
DI3
DI4
COM
Digital Outputs
Pin
DO1
DO2
DO3
DO4
GND
2.2.3 Ethernet Connectors
Anybus WLAN Access Point IP30 has two switched Ethernet ports with RJ45
type connectors that are labeled ETH1 and ETH2.
Pin
1
2
3
4, 5, 7, 8
6
Anybus
®
WLAN Access Point IP30 Startup Guide
Function
Direct input 1
Direct input 2
Direct input 3
Direct input 4
Common signal ground
Function
Direct output 1
Direct output 2
Direct output 3
Direct output 4
Common signal ground
Function
TD+
TD-
RD+
(reserved)
RD-
7 (12)
SP2382 EN 1.1
