Note!

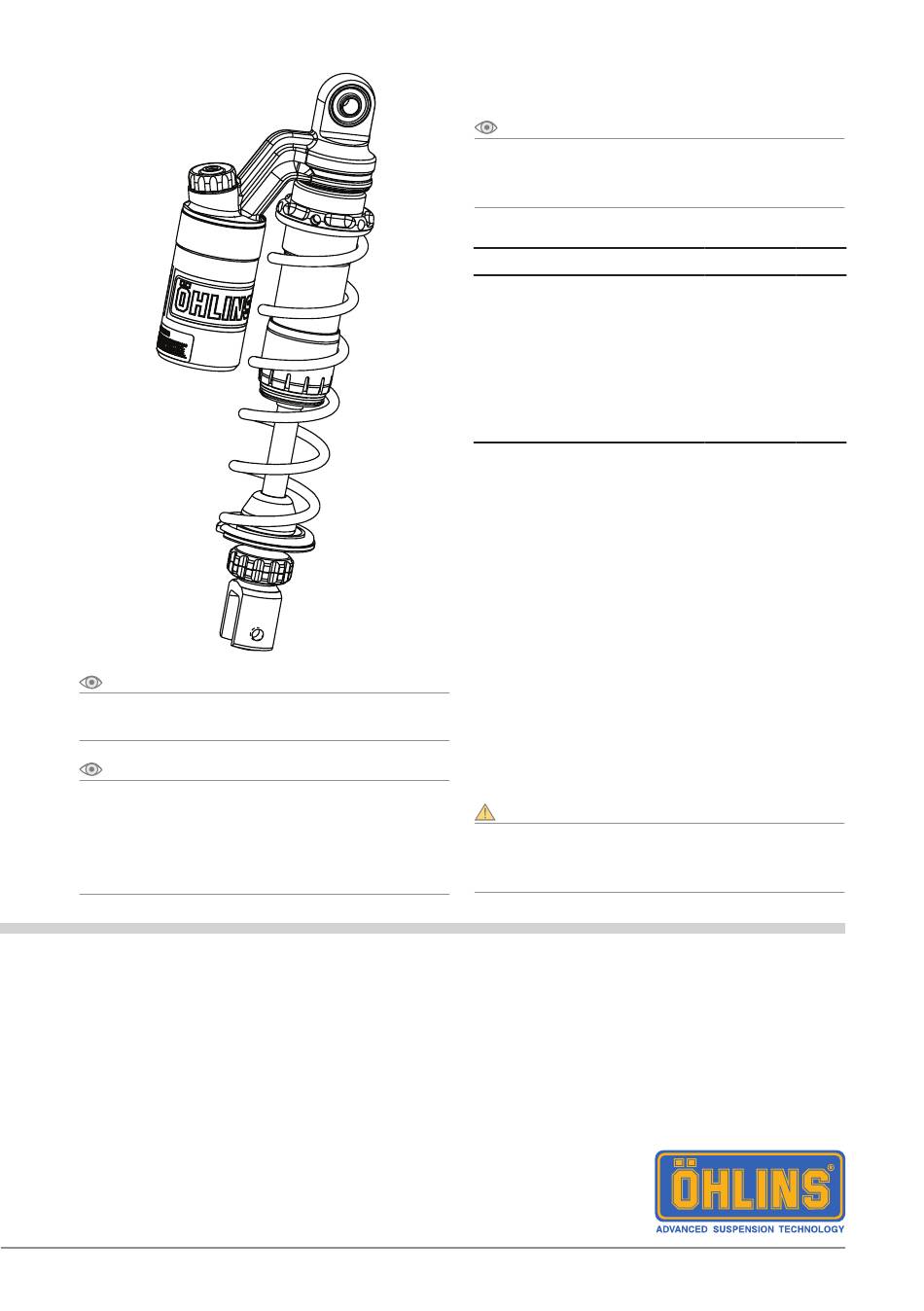

Please note that this image is a general representation
of the product and may differ slightly from your product.
Note!
Please note that during storage and transportation,
especially at high ambient temperature, some of the oil
and grease used for assembling may leak and stain the
packaging. This is in no way detrimental to the product,
wipe off the excessive oil/grease with a cloth.

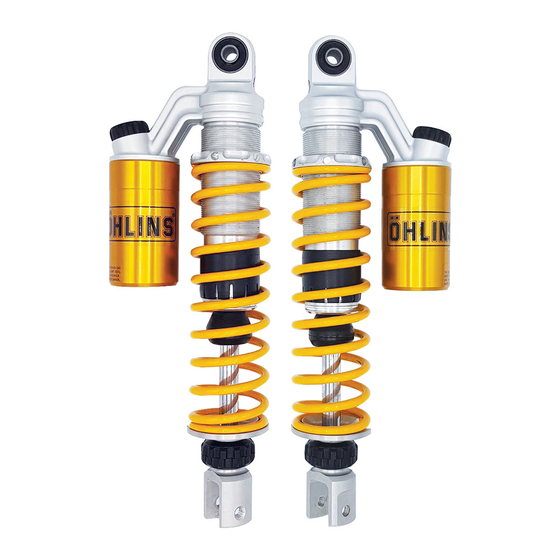

Shock Absorber for Honda Airblade 125
HO 743
Mounting Instructions
Note!
Before installing this product, check the contents of
the kit. If anything is missing, please check an Öhlins
dealer.
Kit Contents
Description
Shock absorber
Screw M8x35
Washer 8/20/0.5
Tool preload adjuster
Sticker set "ÖHLINS"
Owners manual road & track
Warning!
Before installing this product, read the Öhlins Owner's
Manual. The shock absorber is an important part of your
vehicle and will affect the stability.
Part No
Pcs
HO 743
2
00432-01
2
63118-05
4
03199-03
1
10207-01
1
07241-02
1
Advertisement
Related Manuals for Ohlins HO 743
Summary of Contents for Ohlins HO 743
- Page 1 Before installing this product, check the contents of the kit. If anything is missing, please check an Öhlins dealer. Kit Contents Description Part No Shock absorber HO 743 Screw M8x35 00432-01 Washer 8/20/0.5 63118-05 Tool preload adjuster 03199-03 Sticker set "ÖHLINS"...
- Page 2 MOUNTING INSTRUCTIONS Note! Warning! Before mounting this product clean the vehicle It is advisable to have an Öhlins dealer install the shock thoroughly. absorber. Note! Warning! When working on this product, always see the Vehicle If working on a raised vehicle, ensure it is securely Service Manual for vehicle specific procedures and supported so that it will not tip over.
- Page 3 MOUNTING INSTRUCTIONS Ⓑ Remove the grab bar by loosening the ①② screws Ⓒ Remove the storage box by loosening the ①②③④⑤⑥ screws...
- Page 4 MOUNTING INSTRUCTIONS Uninstall standard shock absorbers by loosening the upper and lower mounting ①② screws...
- Page 5 Install Öhlins shock absorber tightening the upper and lower mounting screws according to the installation diagram P1 Tighten at a torque value as specified in the vehicle service manual. Reverse all procedures as necessary. Note! 63118-05 (2x) Lower the vehicle so that the suspension is slightly Washer 8/20/0.5 00432-01 compressed before tightening the screws.
- Page 6 This page intentionally left blank...
- Page 7 This page intentionally left blank...
- Page 8 ADJUSTMENTS Warning! Before riding, always make sure that the basic settings Compression Adjuster made by Öhlins are according to recommended Set-up Data. Read about adjustments and setting up in the Öhlins Owner’s Manual before you make any adjustments. Contact an Öhlins dealer if you have any questions about setting up.
