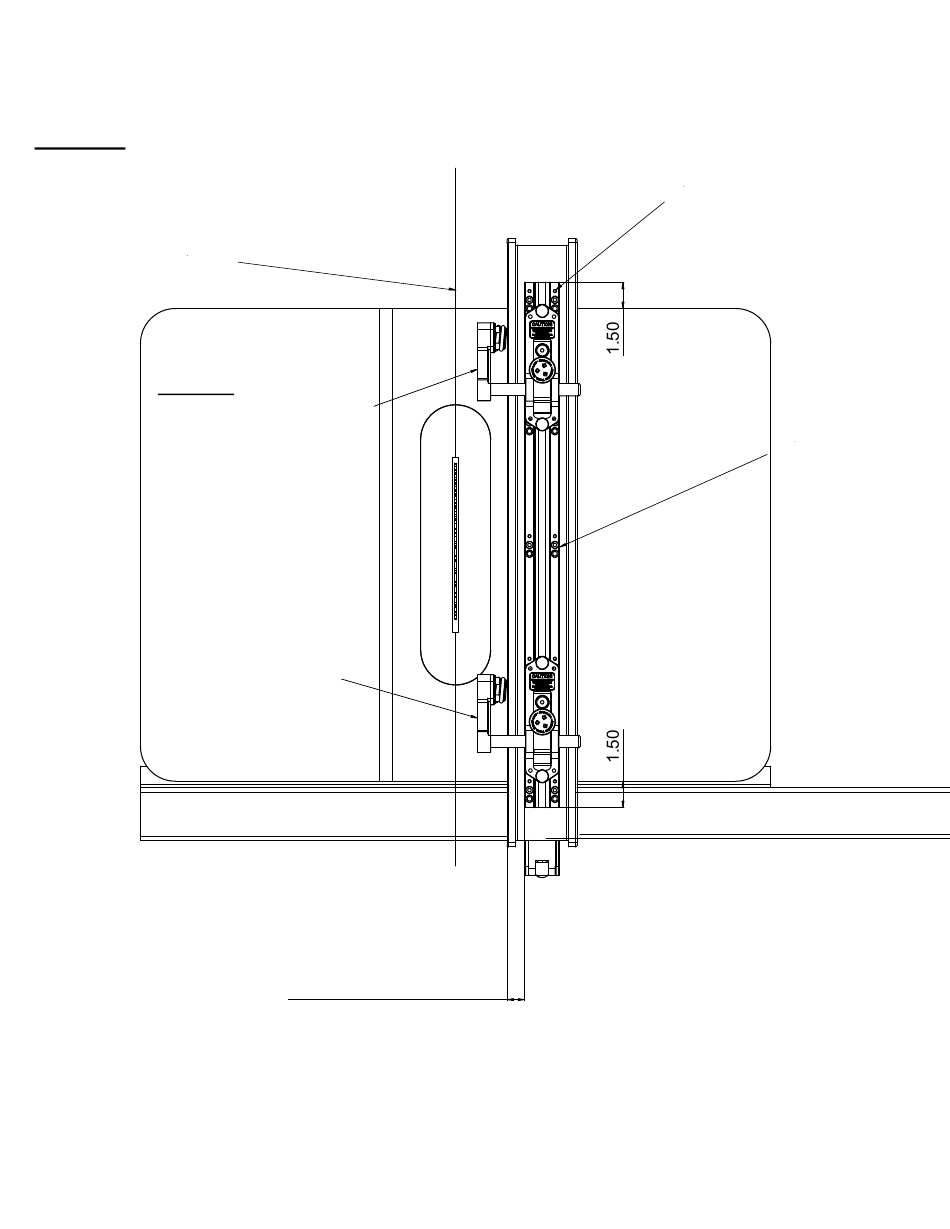

FIGURE #5
CAUTION!
NEVER PLACE OUTFEED STOCK
GUIDE ROLLER ON THE LEFT
SIDE OF BLADE! THIS WOULD
CAUSE A DANGEROUS KICK
BACK OF YOUR WORKPIECE!
OUTFEED GUIDE
CAUTION! PLACE ONLY ON
RIGHT SIDE OF BLADE!
IF POSSIBLE, PLACE TRACK
MINIMUM 13/16" FROM EDGE OF
TABLE SAW FENCE
TO ALLOW GUIDE TO PIVOT OUT
OF WAY WHEN NOT IN USE.
INFEED GUIDE
LEFT RIGHT
9.
#19 DRILL HOLES AT BACK OF
FENCE. THESE HOLES USED AS
GUIDES FOR DRILLING #19 PILOT
HOLES FOR SELF TAPPING
SCREWS. TRACK TO BE MOVED
TOWARD FRONT OF SAW 1/2"
FROM FINAL POSITION FOR
DRILLING PILOT HOLES THEN
MOVED TO FINAL POSITION FOR
FASTENING TO SAW FENCE.
TRACK CENTERED
FRONT TO BACK IN
RELATION TO
TABLE (EG: 27"
DEPTH OF TABLE
SAW LEAVES 1.5"
OVERHANG OF
TRACK FRONT AND
BACK.
