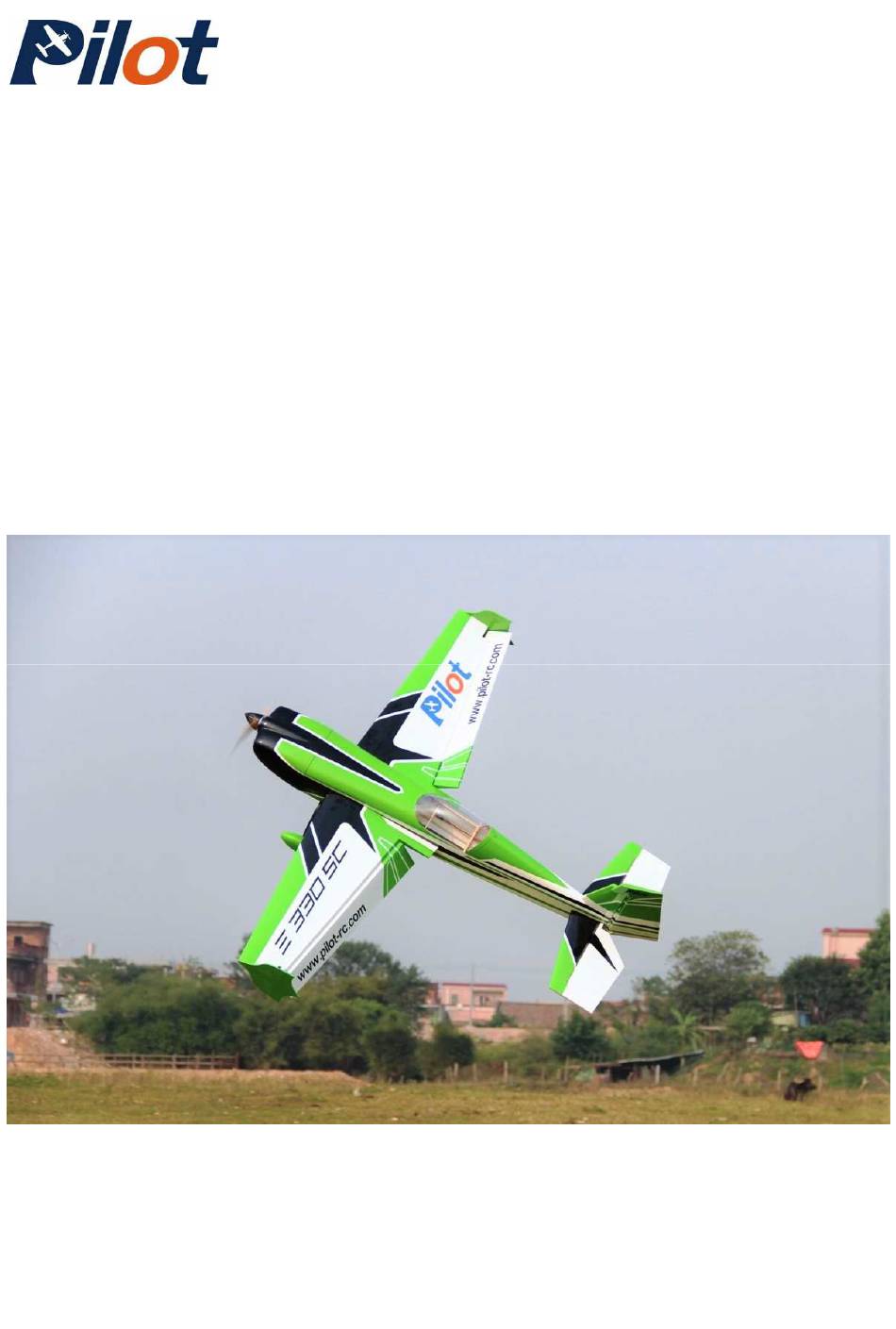

- Page 1 PilotRC Extra 330SC 67” USER MANUAL...
- Page 2 Thank you for purchasing our new 30cc aerobatic plane. we strive to achieve a good quality quick build ARF aircraft . It requires the least amount of assembly of any ARF kit to obtain the maximum performance. Both the design and manufacturing have been undertaken to the highest standards, using best quality hardware, covering, wood &...
- Page 3 • Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tube as well as fibreglass control horns and wheel pants) • Ready to install hinges and pre-mounted canopy • Wheels, axels and wheel pants •...
- Page 4 Position the fuselage upside down and screw on the carbon undercarriage to the fuselage using the nuts and bolts provided. Screw the wheel axles on to the landing gear, and then slide on the wheels and secure in place with the provided grub screws. Some users may prefer to leave the wheels until the end of the build, to prevent the model moving on the build table.
- Page 5 With the model still upside down, position the carbon tail wheel unit on its correct location and mark on the underside of the fuselage to drill the holes for the screws that will hold the tail wheel in place. Screw the tail wheel unit to the fuselage using the blind nuts and bolts provided.Attach the springs to the underside of the rudder using the metal arm supplied.
- Page 7 It is very important to sand horn to assure a strong bond once glued to the model. Locate and cut the covering where the horns will be glued Glue them to the surface using epoxy glue Excess epoxy glue can be removed with acetone It is very important to sand horn to assure a strong bond once glued to the model.
- Page 8 Install and glue the included hinges. Locate and cut the covering where the servos will be installed. Route the servo wire through the wing and screw the servo in place. Centre the servo with your transmitter, attach the servo arm and connect the servo to the ailerons with the pushrods provided.
- Page 9 Cut free the trailing edge of the vertical rudder in line with the stabiliser, in order to allow you to slide the stabiliser into the fuselage. Keep the removed section for later. Trial fit the stabiliser into the fuselage. Make sure that it is centered (measure the tip of the stabiliser to the tip of the wing on both sides and make sure they are the same distance) and correctly aligned (looking at wings and stabiliser, should show all being parallel)
- Page 10 Install and glue the included hinges. Locate and cut the covering where the servo will be installed, at the rear of the fuselage, under the elevator. Route the servo wire through the wing and screw the servo in place. Centre the servo with your transmitter, attach the servo arm and connect the servo to the ailerons with the pushrods provided.
- Page 12 Replace the cowling with the screws Measure the distance for the motor installation Verification for clearance gap, should be about 1 to 1.5 cm Follow the same procedure for petrol engine...
- Page 15 ，...
- Page 16 Locate the appropirate hole and install the fuel dot in the side of the fuselage Screw the ignition switch to the side of the fuselage through the appropriate hole, or install an electronic ignition kill switch.
- Page 17 The cowling is installed with a single pre-installed bolt on the top half, from the inside of the fuselage going forwards, and two additional bolts going through the cowling from the bottom. With the cowl off, turn the model over, and place some small strips of masking tape in line with the two bolt holes.
- Page 20 Slide the wheel pants over the wheels and axles, supporting the rear of the pants to line up with the ground and mark where to drill the two screw holes in the wheel pants. Remove the wheel pants and drill the holes for the appropriate holes. Before putting back on the plane, mount the bolt with the blind nut on the wheel pant and tighten until the nut sits flush with the wheel pant.
- Page 21 The CG marked inside the fuselage, which is near the wing tube Install the balance rods in their position Install the canopy Finalize the balancing of the aircraft for your flight preferences If it does not balance, please move your batteries accordingly until correctly balanced.
- Page 22 ■ Make sure you have the right model programmed into your transmitter ■ Check the direction of each surface not and also right before you take off . ■ Remember nothing wrong on the ground ever improves in the air ■...
- Page 23 Zhongshan Pilot Model Aircraft Product Ltd Address: No.34, Chengnan Er Road, Zhongshan city, 528455, Guangdong Province, China Web: www.pilot-rc.com Email: pilot-rc@139.com, info@pilot-rc.com Tel: +86-760-88781293 FAX: +86-760-88780293...
