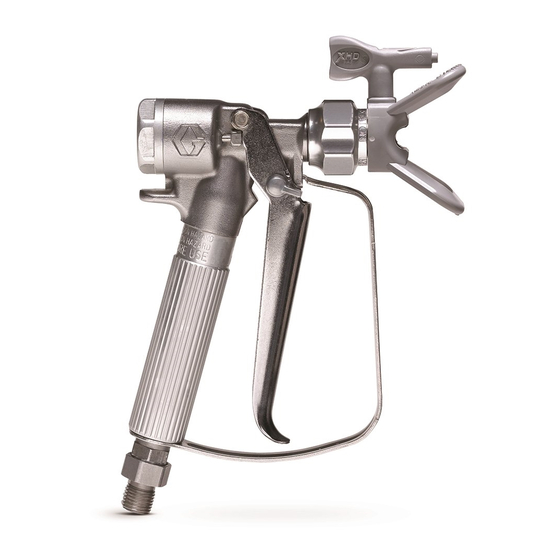

Airless spray gun
Hide thumbs Also See for XTR 7:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Instructions, Parts
™
XTR
Airless Spray Gun
For use with protective coating materials.
XTR 5
5000 psi (35 MPa, 345 bar) Maximum Working Pressure
XTR 7
7250 psi (50 MPa, 500 bar) Maximum Working Pressure
See page Parts, page 14, for model information.
Important Safety Instructions
Read all warnings and instructions in this
manual and in your sprayer instruction
manual before using the equipment. Save
all instructions.
Important Medical Information
Read the medical alert card provided with
the gun. It contains injection injury
treatment information for a doctor. Keep it
with you when operating the equipment.
5 and XTR
™
7
312145K
EN
ti5045b
II 2 G Ex h T6 Gb

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTR 7 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco XTR 7

Summary of Contents for Graco XTR 7

  • Page 1 312145K For use with protective coating materials. XTR 5 5000 psi (35 MPa, 345 bar) Maximum Working Pressure XTR 7 7250 psi (50 MPa, 500 bar) Maximum Working Pressure See page Parts, page 14, for model information. Important Safety Instructions...

  • Page 2: Table Of Contents

    Cleaning Tips/Clearing Clogs ....9 Graco Information ......20 Maintenance .

  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
  • Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
  • Page 5 Warnings WARNING RECOIL HAZARD Gun may recoil when triggered. If you are not standing securely, you could fall and be seriously injured. PERSONAL PROTECTIVE EQUIPMENT Always wear appropriate personal protective equipment and cover all skin when spraying, servicing equipment, or when in the work area. Protective equipment helps prevent serious injury, including long-term exposure;...

  • Page 6: Pressure Relief Procedure

    Pressure Relief Procedure Pressure Relief Grounding Procedure Follow the Pressure Relief Procedure whenever you see this symbol. The equipment must be grounded to reduce the risk of static sparking. Static sparking can cause fumes to ignite or explode. Grounding provides an escape wire for the electric current.

  • Page 7: System Requirements

    System Requirements System Requirements Gun Trigger Lock • Install a bleed-type master air valve on a pneumatic pump air supply line to relieve air trapped between this valve and pump after air regulator is shut off. Trapped air can cause the pump to cycle To prevent injury when the gun is not in use, always unexpectedly.

  • Page 8: Spray Tip Installation

    Spray Tip Installation Spray Tip Installation 3. Install tip cylinder (20c) as shown. Turn 90° counterclockwise to spray position, so the arrow faces forward. Install assembled RAC onto spray gun. To avoid serious injury from skin injection, do not put your hand in front of the spray tip when installing or removing the spray tip and tip guard.

  • Page 9: Operation

    Operation Operation Adjusting Spray Pattern The spray tip orifice and spray angle determine pattern coverage and size. When you need more coverage, use a larger spray tip rather than increasing fluid pressure. 1. Follow the Pressure Relief Procedure, page 6. Engage the trigger lock.

  • Page 10: Maintenance

    Maintenance Maintenance 2. Disconnect the trigger guard from the gun body by pushing up on the guard hook and pulling it out of the notch. Failure to clean or replace the filter or damaged handle bore can result in serious injury. Before performing any maintenance on the gun, read all warnings in this manual and relieve pressure.

  • Page 11: Repair

    (7) to fall out of the gun body when the trigger (16) is removed. Disassembly XTR 7 Guns 1. Follow the Pressure Relief Procedure, page 6. Engage the trigger lock. 1. Using a wrench, remove screw (16b) from the pivot pin (16a).

  • Page 12: Assembly

    Repair Assembly Test Gun Before Using 1. Press a new gasket (3*) into the gun body. Lightly 1. Engage the trigger lock. Connect the fluid hose to grease the seal retainer (2*) and install. Torque to the gun. 48–72 in-lb (5–8 N•m). 2.
  • Page 13 Repair 312145K...

  • Page 14: Parts

    Parts Parts XTR5 16c† 16c† Flat Tip RAC Tip 13‡ ti10051a ti10050a ti21834a 312145K...
  • Page 15 194744 TOOL, repair, packing --- Not for sale. ‡ Handle is not pressure rated for use with the XTR 7. For an XTR 7, order handle 248952 and sleeve ▲ Replacement Danger and Warning labels, tags, and 276997 or 15E083 depending on your model.

  • Page 16: Xtr7

    Parts XTR7 312145K...
  • Page 17 Parts Quantity Ref. Part Description XTR700 XTR701 XTR702 XTR703 XTR704 XTR705 XTR706 17V677 15E178 BODY, gun 17V381 BODY, gun 245881 SEAL, retainer assembly GASKET 15A864 CAP, end 117350 SPRING 15E088 RETAINER, needle 15E085 PIN, actuator 248591 NEEDLE 156766 GASKET 245858 SEAT, valve 248952 KIT, repair, handle...
  • Page 18 Parts Quantity Ref. Part Description XTR700 XTR701 XTR702 XTR703 XTR704 XTR705 XTR706 17V677 29▲ 222385 TAG, warning (not shown) 166969 GASKET 220251 GUARD, flat tip 163519 TIP, flat 194744 TOOL, repair, packing --- Not for sale. ▲ Replacement Danger and Warning labels, tags, and cards are available at no cost. Parts included in Repair Kit 248837, purchased separately.

  • Page 19: Technical Specifications

    Technical Specifications Technical Specifications XTR5 and XTR7 Airless Spray Gun Metric Maximum working pressure (XTR5) 5000 psi 35 MPa, 345 bar Maximum working pressure (XTR7) 7250 psi 50 MPa, 500 bar Maximum fluid operating temperature 160°F 71°C Noise (dBa) Maximum sound pressure 84.3 dBa at 6000 psi (41 MPa, 414 bar) Sound power 95.7 dBa at 6000 psi (41 MPa, 414 bar)

  • Page 20: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This manual is also suitable for:

Xtr 5
