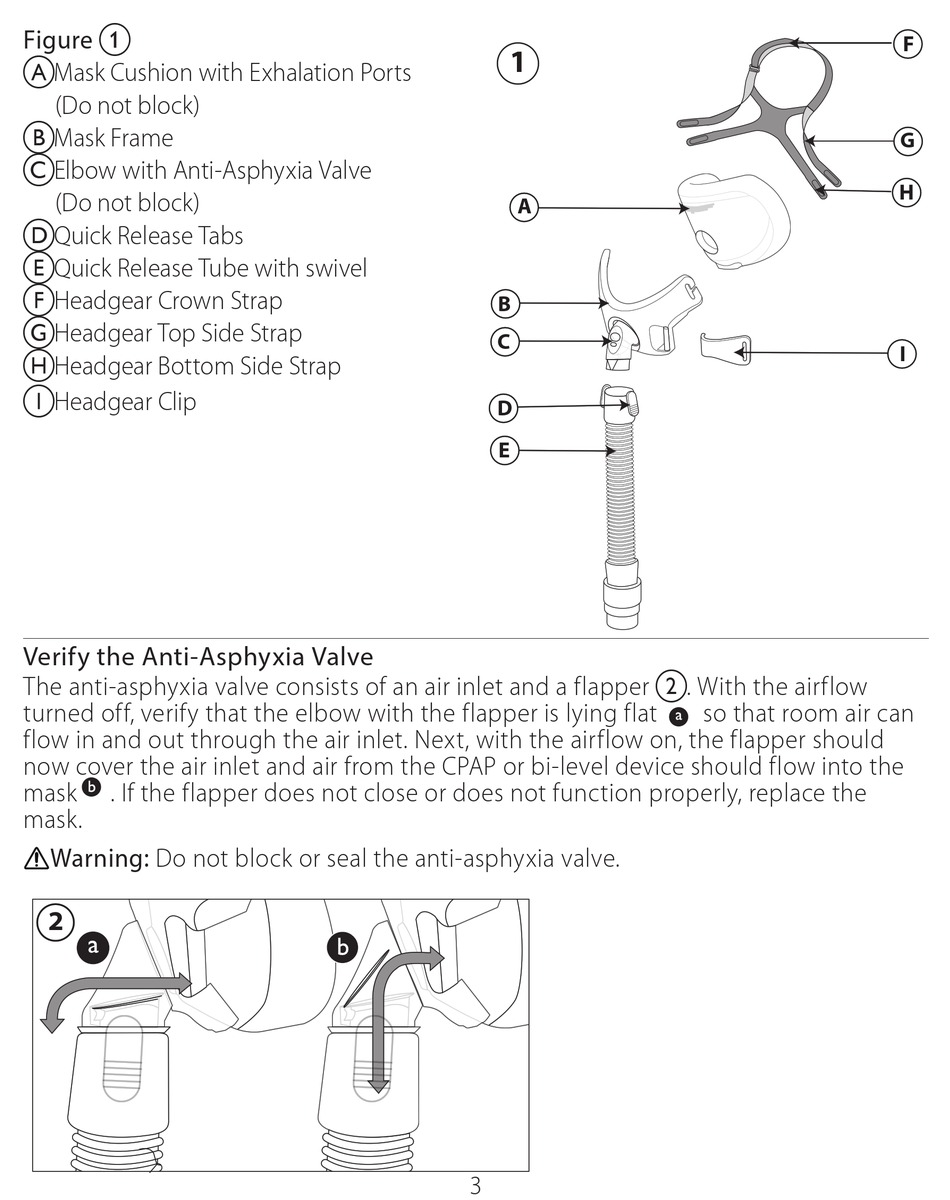

Figure a
AMask Cushion with Exhalation Ports
(Do not block)
BMask Frame
CElbow with Anti-Asphyxia Valve
(Do not block)
DQuick Release Tabs
EQuick Release Tube with swivel
FHeadgear Crown Strap
GHeadgear Top Side Strap
HHeadgear Bottom Side Strap
IHeadgear Clip
Verify the Anti-Asphyxia Valve
The anti-asphyxia valve consists of an air inlet and a flapper b. With the airflow
turned off, verify that the elbow with the flapper is lying flat
flow in and out through the air inlet. Next, with the airflow on, the flapper should
now cover the air inlet and air from the CPAP or bi-level device should flow into the
mask . If the flapper does not close or does not function properly, replace the
mask.
Warning: Do not block or seal the anti-asphyxia valve.
2
1
A
B
C
D
E
3
so that room air can
F
G
H
I
