DISPOSAL INFORMATION
Disposal - Your GJD product was developed
and manufactured with high-quality material
and components that can be recycled and
reused. This symbol means that electronic
and electrical appliances, which have reached
the end of their working life, must be collected
and disposed of separately from household
waste material. Separate collecting systems
are usually in place for disused electronic
and electrical products. Please dispose of
these units at an environmentally compatible
recycling, facility, per European Directive
2012/19/EU.
REGULATORY
INSTALLATION MANUAL
Scan the QR code to see our
full installation manual
SPECIFICATIONS
DETECTION RANGE
COVERAGE
WALK TEST
OPERATING TEMPERATURE
ADJUSTMENT
Mounting HEIGHT
POWER INPUT
INDICATOR LEDs
OUTPUTS
WEATHER RATING
MICROWAVE FREQUENCY
Up to 15m selectable
10º - 70º detection angle,
Output test mode with LED indication
-20ºC to +55ºC
Conformally coated electronics for
increased stability
180º pan, 30º tilt
1.2m to 1.8m
9-15 V DC
1 x Red - Top PIR
1 x Green - Bottom PIR
1 x Amber - Anti-Mark
1 x Blue - Alarm
3 x volt-free, silent solid state
magnetically immune
common tamper (front and rear
switches)
IP65
GJD370 - 10.525GHz
GJD371 - 10.587GHz
GJD372 - 9.9GHz

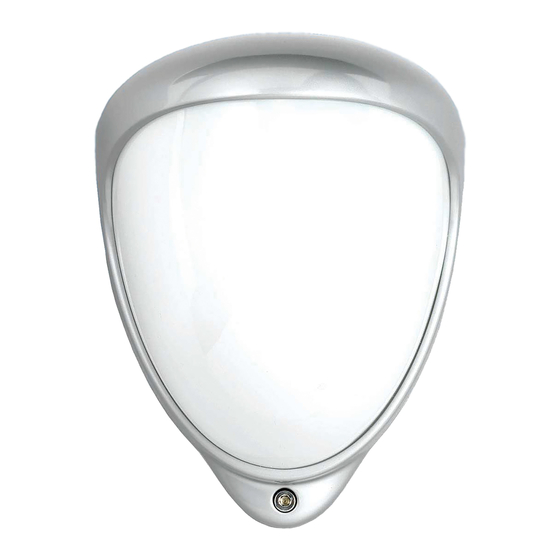

D-TECT Pet Immune
Dual PIR Microwave Detector
GJD370/371/372
Quick Installation Guide
Scan product QR code to register and
activate product warranty
Download our free
Warranty Manager App
GJD
Unit 2, Birch Business Park
Whittle Lane
Heywood
Greater Manchester
OL10 2SX
UK
Tel:
+44 (0) 1706 363 998
Fax:
+44 (0) 1706 363 991
E-mail:
info@gjd.co.uk
Web:
gjd.co.uk
