Summary of Contents for Everest ESR1

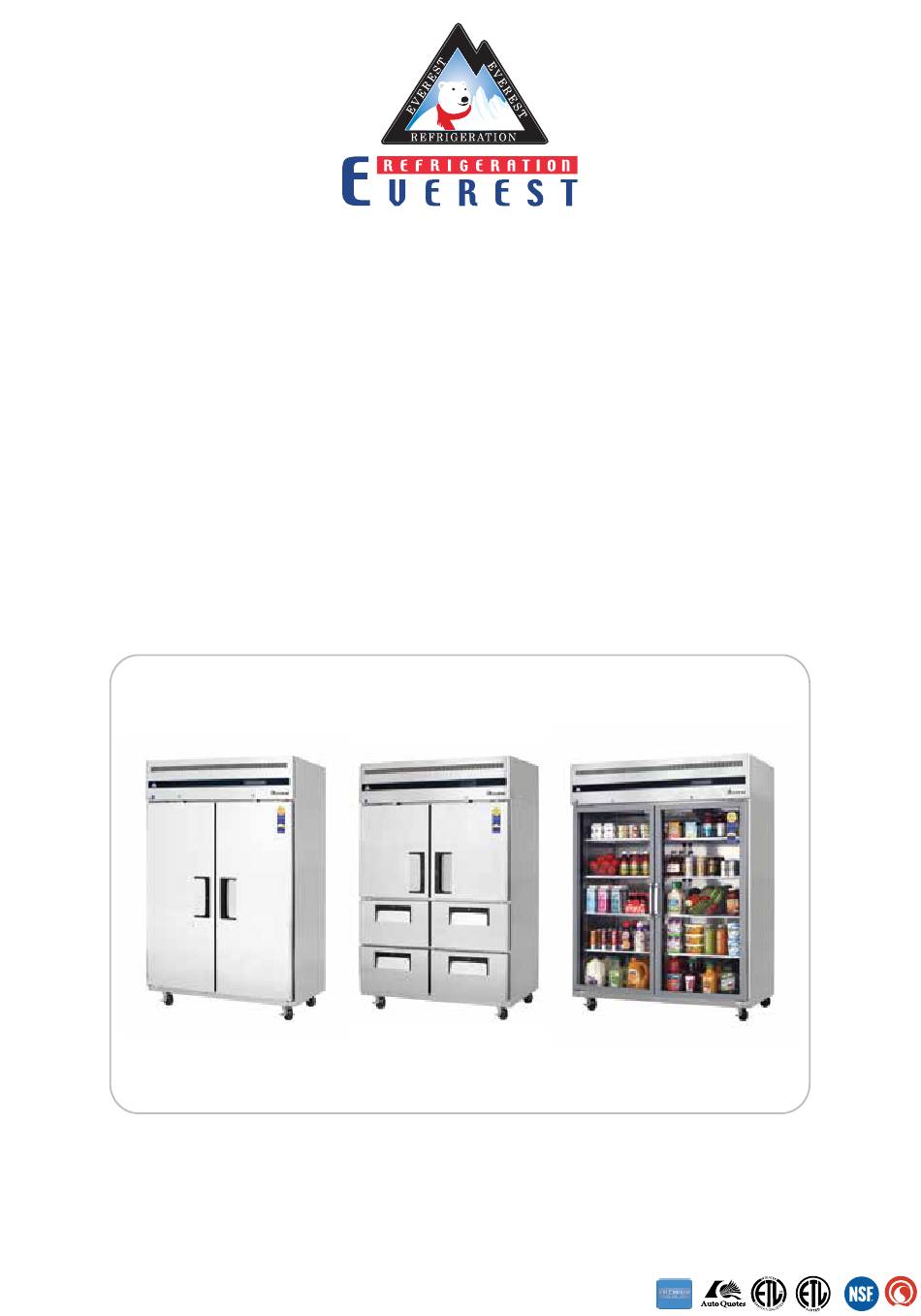

Page 1 Owner’s Manual for models: Top Mount Upright Reach-Ins ESR1, ESRH2, ESR2, ESRH4, ESWR2, ESR3 ESF1, ESFH2, ESF2, ESWF2, ESF3 ESRFH2, ESRF2A, ESWRF2, ESWQ3, ESRF3 ESR1D2, ESR2D2, ESR2D4, ESRF2D2, ESWQ2D2 ESGR1, ESGR2, ESGWR2, ESGR3A EGSH2, EGSDH2, EGSH4, EGSWH4, EGSH6...
Page 2: Safety Notices
Safety Notices Safety Notices REFRIGERATION WARNING - When using your appliance, always follow basic precautions, including the following : Before starting the unit for the ﬁrst When installing the unit, be careful that the time, make sure the unit electrical cord is not under the unit or is free from all packaging.
Page 3 EVEREST is not responsible A dedicated circuit of su cient for any damage caused by improper electrical amperage is required.
Page 4 Caution! Caution! REFRIGERATION To prevent electrical shock and damage to Do not use the the electrical cord, please hold electrical cord the plug head or plug if they when plugging are damaged and unplugging in any way. the unit. Do not put your hands Avoid installing the under the unit when unit where it could...
Page 5: Installation Guide
Installation Guide Installation Guide REFRIGERATION Install the unit on a hard and level surface The unit should be positioned at least 7” or the unit could produce undesired noises. away from the wall for proper ventiliation. Back Wall 7” 7” Indoor Use Only Dusty and High Humidity Areas Outdoor use may cause a decrease in...
Page 6: Interior Cleaning
Maintenance Guide Maintenance Guide MANUFACTURING Shelf Cleaning Door Gasket Cleaning Periodically remove the shelves from the unit To preserve the life span of the door gasket, and clean them with mild soap clean the gasket and warm water. with mild soap and water on a regular basis.
Page 7 IMPORTANT: Failure to clean the condenser coil will result in a void of warranty. Follow these simple steps at least once a month to ensure the proper operation of your Everest product. 1. Always unplug the unit before performing maintenance.
Page 8 How to Reverse Door How to Reverse Door REFRIGERATION 1. The front top grill (A) must be opened before reversing the door. Grab it from either side of its bottom edge and pull it towards you and tilt it up until it locks into place. 2.
Page 9: Troubleshooting
Trouble Shooting Trouble Shooting REFRIGERATION Please check the following before requesting service. Symptom Possible Solutions Condensing unit a. Ensure the electrical cord has been connected. fails to start b. Ensure the unit is turned on. a. Check the door gaskets for proper seal. Cabinet does not b.
Page 10 Shelves Shelves REFRIGERATION Shelves The unit’s shelves are adjustable so that the refrigerated compartment can be conﬁgured to suit your needs. Shelf Clip The shelf clip pilasters are spaced and labeled in 1” increments for your convenience. 1” Pilaster To install a shelf, hook the shelf clips into the pilasters by inserting the top part of the clips ﬁrst and then the bottom.
Page 11: Specification
Specifications Specification REFRIGERATION ESR1 ESRH2 ESR2 ESRH4 ESWR2 ESR3 Model (Refrigerator) (Refrigerator) (Refrigerator) (Refrigerator) (Refrigerator) (Refrigerator) Capacity(Cu.Ft.) 2(H) 4(H) Door Shelves Compressor (HP) 1/3 x 2 Power (V-Hz-Ph) 115-60-1 115-60-1 115-60-1 115-60-1 115-60-1 115-60-1 Temp. Range(F) 33 ~ 54 33 ~ 54...
Page 12 Specifications (Continued) Specifications (Continued) REFRIGERATION ESR1D2 ESR2D2 ESR2D4 ESRF2D2 ESWQ2D2 Model (Refrigerator) (Refrigerator) (Refrigerator) (Dual Temp) (Dual Temp) Capacity(Cu.Ft.) 22(Ref), 22(Frz) 39(Ref), 13(Frz) 1(H), 2(DR) 1(F), 1(H), 2(DR) 2(H), 4(DR) 1(F), 1(H), 2(DR) 1(F), 1(H), 2(DR) Door Shelves Compressor (HP) 1/3(Ref), 1/2(Frz) 1/3(Ref), 1/3(Frz) Power (V-Hz-Ph)
Page 13: Temperature Setting
Temperature Setting Temperature Setting REFRIGERATION * LED Display Operation of compressor Current cabinet temperature * Control Buttons Power button Temperature setting button Defrost button * How to set desired temperature Press and hold “ D ” button until the LED displays “ set ” symbol and a number Step 1 consecutively.
Page 14 Pan Configurations Pan Configurations REFRIGERATION REFRIGERATION Drawered & Drawer Combo Upright Reach-Ins Drawer pans are not included in this product as standard, Customers need to purchase them separately. *Custom pan dividers required to t standard full sized pans. Contact manufacturer for details. ESR1D2 [Standard: (1) pan divider per drawer included] / 6"...
Page 15: Product Drawings
Product Drawings REFRIGERATION 29 1/4" 29 1/4" 29 1/4" 29 1/4" 49 5/8" 28 1/4" 28 1/4" 28 1/4" 28 1/4" 24" 24" ESR1 ESF1 ESRH2 / ESFH2 ESRFH2 ESR2 49 5/8" 49 5/8" 49 5/8" 59" 59" 24" 24" 24"...
Page 16 Product Drawings Product Drawings REFRIGERATION 29 1/4" 49 5/8" 59" 74 3/4" 28 1/4" 28 1/4" 28 1/4" 24" 24" 24" 24" 24" ESGR1 ESGR2 ESGWR2 ESGR3A 29 1/4" 49 5/8" 49 5/8" 28 1/4" 24" 24" 24" 24" ESR1D2 ESR2D2 ESR2D4 49 5/8"...
Page 17 Product Drawings Product Drawings REFRIGERATION 29 1/4" 29 1/4" 28 1/4" 28 1/4" EGSH2 EGSDH2 (Dual Temp) 49 5/8" 74 3/4" 59" 24" 24" 24" 24" 24" 28 1/4" 28 1/4" EGSH4 EGSWH4 EGSH6...
Page 18: Critical Information
Critical Information Critical Information REFRIGERATION The warranty card below must be submitted to Everest within thirty (30) days of purchase. WARRANTY REGISTRATION CARD Business Name : Telephone : ( Address : City : State : Zip : Place of Purchase :...
Page 19: Warranty Certificate
Our obligation under this warranty is limited to a period of three (3) years from the date of original installation or thirty six (36) months after shipment date from EVEREST, which ever occurs rst.
Page 20 REFRIGERATION REFRIGERATION A Step Above the Standard 201 W. Artesia Blvd., Compton CA 90220 Tel : 310-323-6586, 800-444-6285 Fax : 310-323-7524, 310-761-1127 Visit our website at www.EVERESTref.com...
