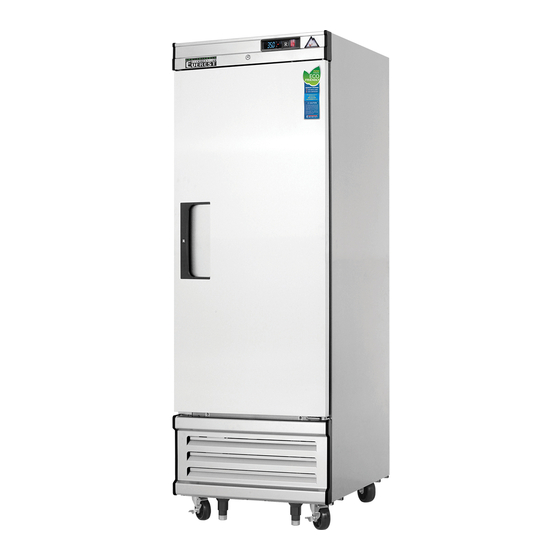

- Page 1 Upright Reach-Ins Bottom Mounted Condensing Unit Owner’s Manual EBR1 EBWR1 EBWRH2 EBNR2 EBSR2 EBR2 EBR3 EBR1D EBNR2D EBR2D EBF1 EBWF1 EBWFH2 EBNF2 EBSF2 EBF2 EBF3 EBF1D EBF2D EBWRFH2 EBSRF2 EBRF2 EBRF2D EBRF3 EBGR1 EBGNR2 EBGR2 www.everestref.com...
-
Page 3: Table Of Contents
Upright Reach-Ins Bottom Mount Condensing Unit EBR1 EBWR1 EBWRH2 EBNR2 EBSR2 EBR2 EBR3 EBR1D EBNR2D EBR2D EBF1 EBWF1 EBWFH2 EBNF2 EBSF2 EBF2 EBF3 EBF1D EBF2D EBWRFH2 EBSRF2 EBRF2 EBRF2D EBRF3 EBGR1 EBGNR2 EBGR2 Contents 1. Hydrocarbon Guidelines 2. Installation Instructions 3. -
Page 4: Hydrocarbon Guidelines
1. Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION. - Page 5 • General service and repairs must be performed in well-ventilated areas. General service and repairs must be performed only by professionals authorized by Everest Refrigeration. • Component shall be replaced with Everest-issued, like components to minimize the risk of possible ignition resulting from incompatible parts or improper repairs.
-
Page 6: Installation Instructions
2. Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. - Page 7 Shelf Installation Some units come standard with shelves, shelf clips and notched pilasters. Each shelf requires four clips. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips.
- Page 8 Place shelves on the shelf clips making sure all corners are mounted securely and evenly with identical distance from the unit’s floor and up. Always lay the back of each shelf down on the rear clips before the front. When removing a shelf, unmount the shelf from the shelf clips.
- Page 9 Installation Instructions...
- Page 10 Product Load Level & Shelf Placement Product Load Level & Shelf Placement EB Series Load Level 12” Solid Door Airflow Guard Load Level 12” Shel f Load Level 12” Load Level 12” Air V ent Airflow Side View Rear Front Installation Instructions...
-
Page 11: General Safety
3. General Safety This section applies to all Everest products. Use your appliance according to its designed function as specified in this Owner’s Manual. Warranty is void if the following guidelines are not met. • Before the unit is used, it must be installed and connected according to the installation instructions provided in this manual. -
Page 12: Electrical Safety
4. Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Do not use extension cords, adapter plugs or Everest units come as 115 volts, 60 hertz, single other third party electrical connections. -
Page 13: Operation
5. Operation This section applies to all Everest products. Use according to the described and intended functions. Warranty is void if these guidelines are not met. Starting your Everest Product The default temperature setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The... - Page 14 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature...
- Page 15 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
- Page 16 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress...
- Page 17 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.
-
Page 18: Care And Maintenance
6. Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility. - Page 19 If your product is an R290 refrigerator model, you may skip this section. This section applies to all Everest products. The condenser coil requires monthly cleaning to keep the metal fins clear of lint, dust and grease build-up. A clogged condenser coil severely reduces your product’s energy efficiency and places strain on the compressor and other components leading to advanced failure.
- Page 20 4. Use a commercial condenser coil cleaner for metal fins that are coated in grease. Allow the cleaner to saturate the area. Follow the recommended wait time printed on the product packaging. 5. The grease and cleaning solvent will pool at the base of the metal fins.
-
Page 21: Door Reversal Instructions
7. Door Reversal Instructions Some products have field reversible doors to accommodate specific kitchen layouts. Door reversals must be performed by qualified technicians. A second person is required. Safety goggles must be worn to protect from spinning parts. Warranty is void if the following guidelines are not met. MANUFACTURING MANUFACTURING :Lock Screw... - Page 22 5. Extra precaution must be taken for the following steps. Release the door tension from the door spring by inserting a sharp pointed implement into one of the door hinge shaft’s unoccupied tension lock screws C- 2 6. Slowly turn the door spring shaft clockwise until you are able to unscrew the tension lock screw .
-
Page 23: Troubleshooting Guide
8. Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating The compressor operates continuously or for with the current temperature and accompanied prolonged periods. - Page 24 Condensation in the interior cabinet. The cabinet temperature is too warm. The condenser coil may be clogged with dust, grime The door or door gasket may not be sealing properly. or debris. Clean them following the instructions in Check product placement in the cabinet as it may prevent the door from fully closing.
-
Page 25: Warranty Information

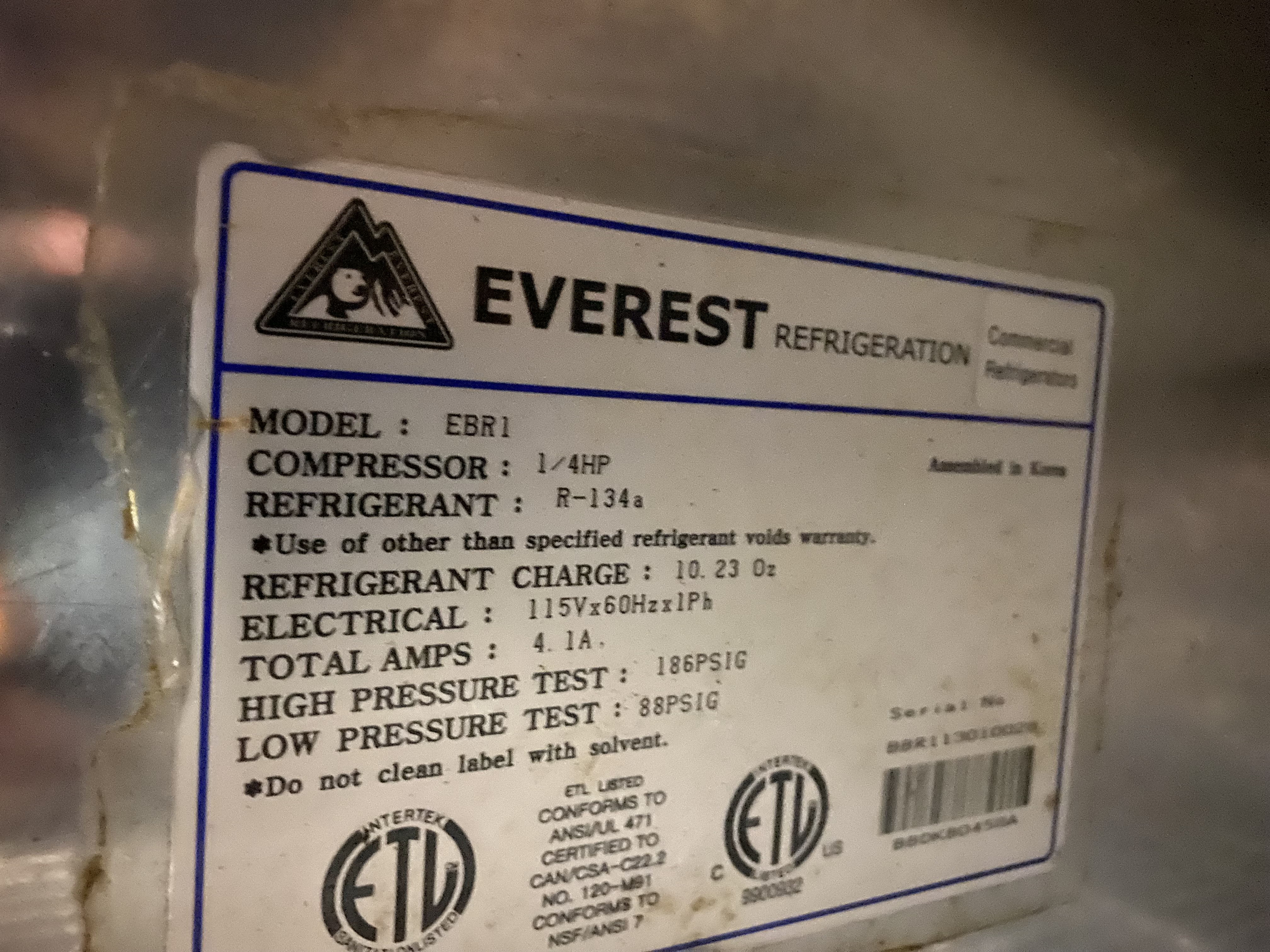

The product data plate is a permanently affixed label that contains the model, serial and barcode numbers and refrigeration data of your Everest product. This tag is located in the upper left or right interior compar tment for models with doors, or the exterior left or right exterior housing for models with drawers. - Page 26 Telephone : Email : Street Address : City : State : Zip : Place of Purchase : Date Purchased : Date Installed : Model No : Cabinet Serial No : Barcode * Terms may vary. Contact Everest for further details Warranty...
- Page 27 Three (3) Year Labor & Parts Warranty EVEREST warrants to the first purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
- Page 28 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.everestref.com ver. 082118...
