Owner's Manual for models:

Direct Draw Keg Refrigerators

EBD1, EBD2, EBD3, EBD4

24" Deep Direct Draw Keg Refrigerators

EBDS2-24, EBD2-24, EBD3-24, EBD4-24

Back Bar & Direct Draw Keg Refrigerators

EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG

24" Deep Back Bar & Direct Draw Keg Refrigerators

EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24

EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24

Club Top Direct Draw Keg Refrigerators

EBD2-CT, EBD3-CT, EBD4-CT

A Step Above the Standard

Thank you for choosing EVEREST

ISO-9001

Table of Contents

Need help?

Do you have a question about the ebd1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Everest ebd1

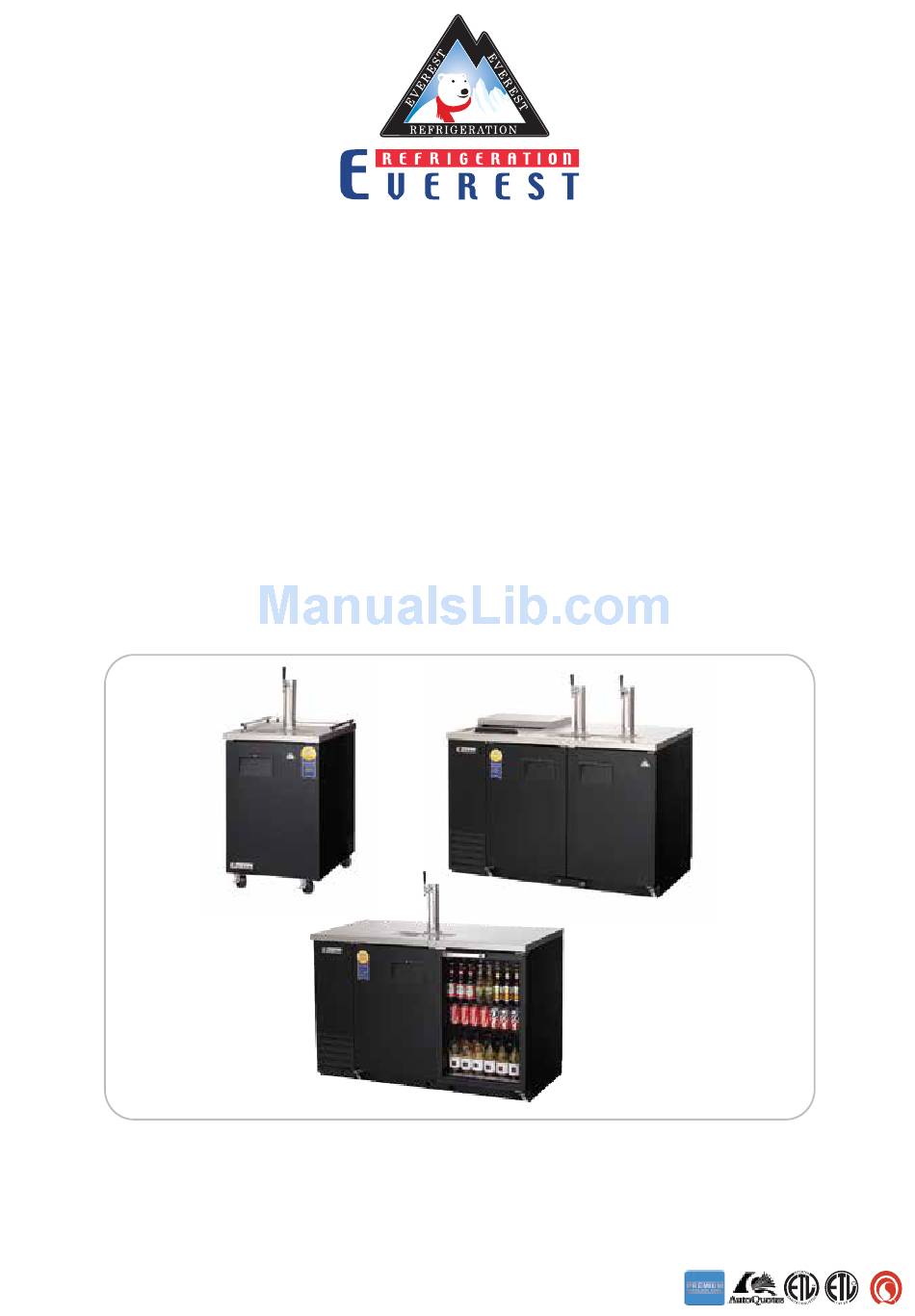

Page 1 Owner’s Manual for models: Direct Draw Keg Refrigerators EBD1, EBD2, EBD3, EBD4 24" Deep Direct Draw Keg Refrigerators EBDS2-24, EBD2-24, EBD3-24, EBD4-24 Back Bar & Direct Draw Keg Refrigerators EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG 24" Deep Back Bar & Direct Draw Keg Refrigerators...
Page 2: Safety Notices
Safety Notices Safety Notices REFRIGERATION WARNING - When using your appliance, always follow basic precautions, including the following : When installing the unit, be careful that the electrical cord is not under the unit or time, make sure the unit pressed against the wall.
Page 3 A dedicated circuit of to its own circuit. EVEREST is not responsible su cient amperage is required. for any damage caused by improper electrical connections resulting from electrical power failure, use of extension cords &...
Page 4 Caution! Caution! REFRIGERATION To prevent electrical shock and damage to Do not use the the electrical cord, please hold electrical cord the plug head or plug if they when plugging are damaged and unplugging in any way. the unit. To avoid personal injuries Avoid installing the from broken glass, unit where it could...
Page 5: Installation Guide
Installation Guide Installation Guide REFRIGERATION Install the unit on a hard and level surface The unit should be at least 2” away from the or the unit could produce undesired noises. wall. Indoor Use Only Dusty and High Humidity Areas Outdoor use may cause a decrease in Dusty environments will cause the condenser coil to prematurely clog which...
Page 6 Maintenance Guide Maintenance Guide REFRIGERATION Shelf Cleaning Door Gasket Cleaning Periodically remove the shelves from the unit To preserve the life span of the door gaskets, and clean them clean the gaskets with mild soap with mild soap and warm water. and water on a regular basis.
Page 7: Troubleshooting
Trouble Shooting Trouble Shooting REFRIGERATION Please check the following before requesting service. Symptom Possible Solutions Condensing unit a. Ensure the electrical cord has been connected. fails to start b. Ensure the unit is turned on. a. Check the door gaskets for proper seal. Cabinet does not b.
Page 8 Shelves Shelves REFRIGERATION Shelves(If equipped) The unit’s shelves are adjustable so that the refrigerated compartment can be Shelf Clip The shelf clip pilasters are spaced and labeled in 1” increments for your convenience. 1” Pilaster To install a shelf, hook the shelf clips into the pilasters by inserting the top part of the clips To remove a shelf, start by unloading the shelf.
Page 9: Specification
(W x D x H* inches) [NOTE] * Ext. height does not includes 5” for towers. (This EBD1 model is equipped with pre-installed casters as standard feature). † Depth does not include protruding door handle. Depth includes 1 1/2” for back grill.
Page 10 Specifications Specification REFRIGERATION 24" Deep Back Bar & Direct Draw Keg Refrigerators Model EBDS2-BB-24 EBD2-BB-24 EBD3-BB-24 13.95 16.86 20.41 Capacity( Cu. Ft.) 2(SD) 2(SD) 2(SD) Door(s) Shelves Capacity 175 / 126 245 / 168 315 / 210 12 oz. Cans / Bottles 1/4+ 1/4+ 1/4+...
Page 11: Temperature Setting
Temperature Setting Temperature Setting REFRIGERATION ℉ [Temperature Setting Range] Setting Range Comp. REF ( ℉ 1 ~ 3 3 ~ 5 6 ~ 9 “5” • Factory Recommended Setting:...
Page 12: Product Drawings
Direct Draw Keg Refrigerators 3/4" O.D. 31 1/8" 30" 23 3/4" 16 1/2" 1 1/2" T-Shaped PVC Drain Fittings w/ Moveable Plug 22 3/4" EBD1 Pre-installed casters Top view 27 1/8" 57 3/4" 15 1/2" 22 3/4" 22 3/4" EBD2 Side View 68"...
Page 13 Product Drawings Product Drawings REFRIGERATION 24" Deep Direct Draw Keg Refrigerators 3/4" O.D. 49" 57 3/4" T-Shaped PVC Drain Fittings w/ Moveable Plug 24 1/2" 13" 20 3/4" 16" 22 3/4" 22 3/4" EBD2-24 Side View EBDS2-24 68" 89 1/4" 22 3/4"...
Page 14 Product Drawings Product Drawings REFRIGERATION Back Bar & Direct Draw Keg Refrigerators 3/4" O.D. 27 1/8" 27 1/8" 15 1/2" 15 1/2" T-Shaped PVC Drain Fittings w/ Moveable Plug 22 3/4" 22 3/4" Bottles Beer Kegs & Cans Side View Side View EBD2-BB (EBD2-BB / EBD3-BB)
Page 15 Product Drawings Product Drawings REFRIGERATION 24" Deep Back Bar & Direct Draw Keg Refrigerators 3/4" O.D. 49" T-Shaped PVC Drain Fittings w/ Moveable Plug 24 1/2" 13" 20 3/4" 16" Bottles Beer Kegs & Cans EBDS2-BB-24 57 3/4" 68" 22 3/4" 22 3/4"...
Page 16 Product Drawings Product Drawings REFRIGERATION 24" Deep Back Bar & Direct Draw Keg Refrigerators 3/4" O.D. 49" T-Shaped PVC Drain Fittings w/ Moveable Plug 24 1/2" 13" 20 3/4" 16" Bottles Beer Kegs & Cans EBDS2-BBG-24 57 3/4" 68" 22 3/4" 22 3/4"...
Page 17 Product Drawings Product Drawings REFRIGERATION Club Top Direct Draw Keg Refrigerators 57 3/4" 23 1/16" 3/4" O.D. 19 7/8" T-Shaped PVC Drain Fittings w/ Moveable Plug 27 1/8" 15 1/2" 22 3/4" 22 3/4" EBD2-CT Side View 68" 89 1/4" 23 1/16"...
Page 18: Installation
Installation Installation REFRIGERATION Drilling Ports For CO2 Lines Applicable Serial Numbers BBD1-0801-XXXX ~ BBD1-1209-XXXX BBD2-0801-XXXX ~ BBD1-1209-XXXX BBD3-0801-XXXX ~ BBD1-1209-XXXX BBD4-0801-XXXX ~ BBD1-1209-XXXX Wall-integrated Drain Line Left Back View Right Back View To avoid damaging refrigeration components and wiring, please drill holes for CO2 lines only in the highlighted areas. For further assistance, please contact our Technical Support Department at 1-800-444-6285.
Page 19 Installation Installation REFRIGERATION Drilling Ports For CO2 Lines Applicable Serial Numbers BBD1-1210-XXXX ~ Present BBD2-1210-XXXX ~ Present BBD3-1210-XXXX ~ Present BBD4-1210-XXXX ~ Present Left Back View Right Back View To avoid damaging refrigeration components and wiring, please drill holes for CO2 lines only in the highlighted areas. For further assistance, please contact our Technical Support Department at 1-800-444-6285.
Page 20: Installation Instructions
Installation Instructions Installation Instructions REFRIGERATION Air distributor is only on multiple keg units, each keg is conneted to a valve on the air distributor. Single keg is connected directly to the regulator. Faucet Handle Tower Cover Faucet Tower Co2 Regulator Co2 Distributor* Beer Line Keg Coupler...
Page 21 Installation Instructions Installation Instructions REFRIGERATION Position tower gasket so that the drain line and screw holes align properly with the top surface of the unit. Feed the tower’s beer line through the unit’s beer line hole. Secure the tower to the unit using the four screws provided.
Page 22 Installation Instructions Installation Instructions REFRIGERATION Insert the end of the cold air hose without a hook into the air baffle. Remove the beer tap tower’s cap. Insultion(Foam) Feed the end of the cold air hose with a hook through the bottom of the tower and attach the hook to the beer tap retaining nut.
Page 23 Installation Instructions Installation Instructions REFRIGERATION Replace the beer tap tower’s cap. 3/4" O.D. T-Shaped PVC Drain Fittings w/ Moveable Plug...
Page 24 Keg Installation Instructions Keg Installation Instructions REFRIGERATION NOTE: The CO distributor can be used to share the single CO tank with multiple kegs. 1. CO tank placement (inside or outside of the refrigerated cabinet) a. Outside of Cabinet - Drill a hole on the back wall of the unit, only in the areas indicated in figure; Drilling in any other place may cause damage to the unit's wiring.
Page 25 Keg Installation Instructions Keg Installation Instructions REFRIGERATION NOTE: The CO distributor can be used to share the single CO tank with multiple kegs. 8. Calibrating CO Regulator a. With the shut-off valve on the CO regulator closed, open the valve on the CO tank completely.
Page 26: Critical Information
9. Replace the ventilation grill onto the back of the unit using the Philips head screws removed in step 2. The warranty card below must be submitted to Everest within thirty (30) days of purchase. WARRANTY REGISTRATION CARD...
Page 27: Warranty Certificate
Our obligation under this warranty is limited to a period of three (3) years from the date of original installation or thirty six (36) months after shipment date from EVEREST, which ever occurs rst.
Page 28 REFRIGERATION REFRIGERATION A Step Above the Standard 201 W. Artesia Blvd., Compton CA 90220 Tel : 310-323-6586, 800-444-6285 Fax : 310-323-7524, 310-761-1127 Visit our website at www.EVERESTref.com...
