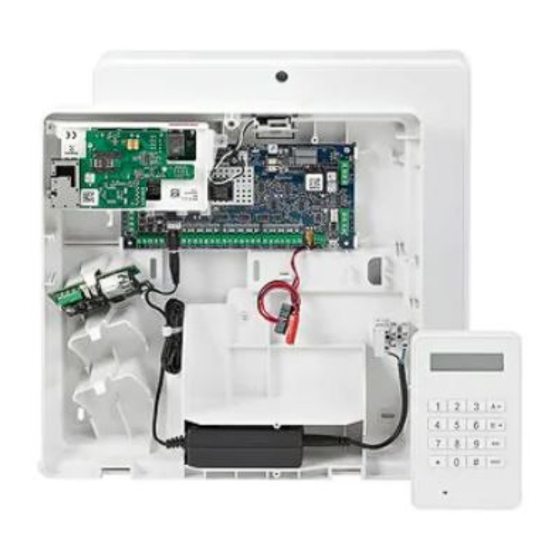

Galaxy 2 Series Off - Wall

Tamper Microswitch

Installation Instructions

Install the Off-wall Tamper Microswitch to a G2 Panel

This pack contains the Off-wall Tamper Microswitch and two connecting wires.

There are two methods of installing and wiring the Off-wall Tamper Microswitch to a G2 panel.

Method 1: Wired directly into a zone.

Method 2: Wired using the Deep Discharge Protection Board.

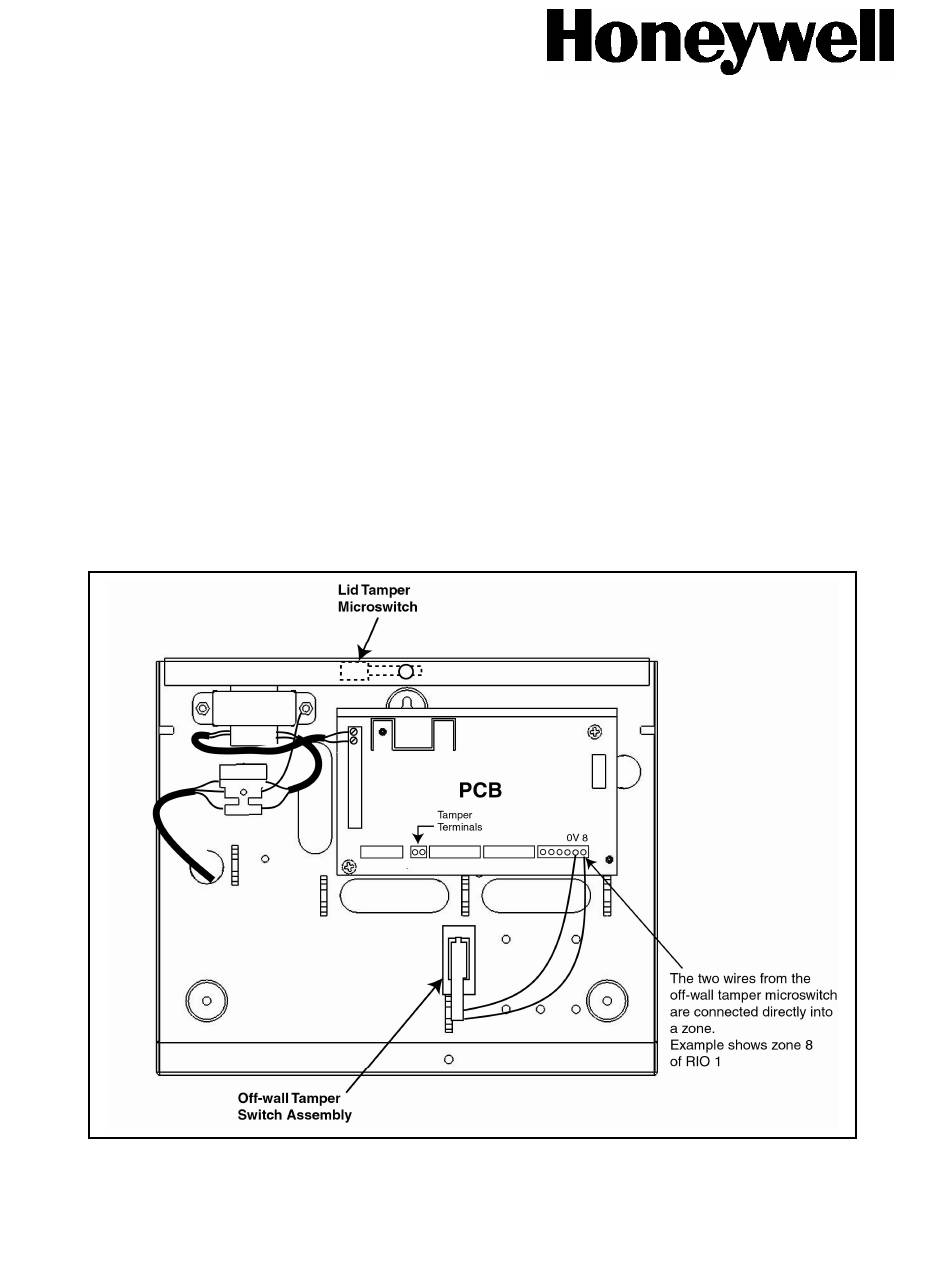

Method 1 – Wired into a Zone

Insert the off-wall tamper microswitch with the two connecting wires from the rear of

the panel and clip into position.

Connect the two wires from the Off-wall Tamper Microswitch to an unused zone.

NOTE: The wiring shown is for a Normal Closed configuration. For Double-Balanced

and End-of-Line configurations, use a 1k ohm resistor connected in series with

the connecting wires.

Table of Contents

Do you have a question about the Galaxy 2 Series and is the answer not in the manual?

Page 1: Installation Instructions
Galaxy 2 Series Off - Wall Tamper Microswitch Installation Instructions Install the Off-wall Tamper Microswitch to a G2 Panel This pack contains the Off-wall Tamper Microswitch and two connecting wires. There are two methods of installing and wiring the Off-wall Tamper Microswitch to a G2 panel.
Page 2 Method 2: Install the Off-wall Tamper Microswitch to a G2 Panel with Optional Protection Board Insert the off-wall tamper microswitch with the two connecting wires from the rear of the panel and clip into position. Connect the wires in accordance with the diagram below. Use terminal on Deep Discharge Protection Board marked SPARE to join the wires.
