Summary of Contents for Magner MAGNER100

  • Page 2: Table Of Contents

    MAGNER100 USER MANUAL - Contents – ...……………..…………………………………………………………………………3 Warning Appearance……………..…………………………………………………………………………4 1. Display Description …………………………………………………………………………5 2. Key Operation Description …………………………………………………………………6 3. Basic Operation 3-1. COUNT Mode ....................8 3-2. EURO Mode ....................... 9 3-3. USD Mode ....................... 10 3-4. Local Currencies Mode .................. 10 4.

  • Page 3: Warning

    MAGNER100 USER MANUAL - Important Safety Precautions - Do not plug several products in one multi-outlet. Do not bend the cable by force or leave it under any heavy object. Install the machine on the stable surface Unplug the machine before it is moved Do not pull the cable it unplugged.

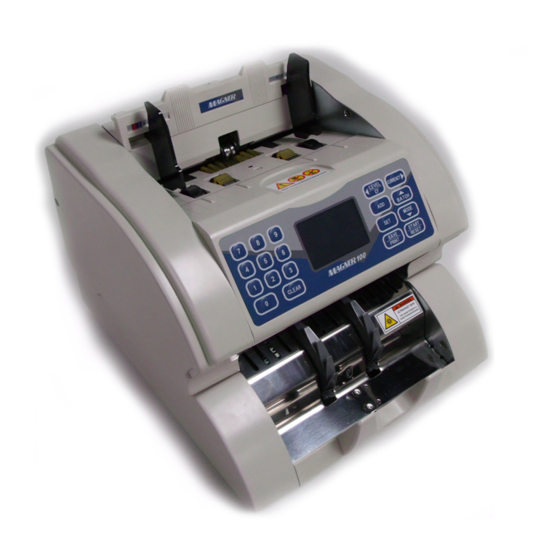

  • Page 4: Appearance

    MAGNER100 USER MANUAL Appearance Hopper Guide Hopper LCD Display Window Release Button Stacker Pocket Gap Adjustment Knob External Display Port RS232 Port Power Switch Power Connector Magner INT...

  • Page 5: Display Description

    MAGNER100 USER MANUAL 1. Display Description Operation Mode Counterfeit Detection M I X Note number of Stacker € Currency Total Value B100 S1000 BATCH Number Speed ADD/G.TOTAL Mode Operation Mode Counterfeit Detection. Note number of Stacker Currency: Currency mark which the machine can count now.

  • Page 6: Key Operation Description

    MAGNER100 USER MANUAL 2. Key Operation Description Number Key for selecting Batch number and Shortcut Key. Clear Batch number to 0. Counterfeit detection function key (Operation Mode) & double detection function key (COUNT Mode) Select Currency Select ADD Mode and G.TOTAL Mode.
  • Page 7 MAGNER100 USER MANUAL Shortcut Key (Long Key Operation) If press and hold down Number Key, you can select special currency or mode directly. Go to COUNT Mode. Go to EURO (local currency 1) Mode. Go to USD (local currency 2) Mode.

  • Page 8: Count Mode

    MAGNER100 USER MANUAL 3. Basic Mode 3-1. COUNT Mode Display shows as below. Press CURRENCY Key and C O U N T select COUNT Mode. D L L : 3 D P |+●++++++| LP B100 S 800 User can count all currencies without recognition and detection.

  • Page 9: Euro Mode

    MAGNER100 USER MANUAL UV Level When press and hold down C O U N T LEVEL Key, you can change UVL. Press MODE Key and move D L L : 3 L |+●++++++|H cursor to UVL. U V L : 3 L |+●++++++| H Change UVL.

  • Page 10: Usd Mode

    MAGNER100 USER MANUAL 3-3. USD Mode Display shows as below. Press CURRENCY Key and M I X select USD Mode. Press MODE Key and select Operation Mode. B100 In this Mode, the machine can recognize and detect USD currency. 3-4. Local Currencies Mode Display shows as below.

  • Page 11: Batch Mode

    MAGNER100 USER MANUAL 4. Operation I 4-1. BATCH Mode Display shows as below. If press BATCH Key, user can select batch number which is M I X registered already. (5, 10, 20, 50, 100) When user wants to select special €...

  • Page 12: Cf Mode

    MAGNER100 USER MANUAL 4-2. CF Mode Display shows as below. If you want to detect counterfeit during counting, press CF Key.. M I X € B100 4-3. ADD Mode When press and hold down ADD M I X Key, you can enter ADD or G.TOTAL Mode.
  • Page 13 MAGNER100 USER MANUAL When count notes, display shows the current Display shows as below. counted information M I X M I X [ADD TOTAL] [CURRENT] € € 1,180 B100 B100 When count notes again, display shows the current counted information...
  • Page 14 MAGNER100 USER MANUAL Verify Function M I X In ADD Mode, press ADD Key again shortly. [VERIFY] VERIFY function is activated and € display shows as below. When VERIFY function is turned on, you can count new notes which is no relation with ADD value.
  • Page 15 MAGNER100 USER MANUAL Delete ADD value from MEMORY Select item 2. CLEAR ADD and press SET Key. The value is deleted from MEMORY and exit ADD STATE menu. M I X M I X [ADD TOTAL] [ADD TOTAL] € €...

  • Page 16: Grand Total Mode

    MAGNER100 USER MANUAL 4-4. GRAND TOTAL Mode When press and hold down ADD M I X Key, you can enter ADD or G.TOTAL Mode. € Press MODE Key to select item. Select 3. G.TOTAL and press SET Key to enter.
  • Page 17 MAGNER100 USER MANUAL When press START Key, you can check ADD TOTAL and GRAND TOTAL value. M I X M I X [ADD TOTAL][ [GRAND TOTAL] € € 11,380 B100 B100 Save ADD TOTAL x to GRAND TOTAL M I X...
  • Page 18 MAGNER100 USER MANUAL M I X M I X [ADD TOTAL][ [ADD TOTAL][ € € B100 B100 M I X [GRAND TOTAL] € B100 Delete GRAND TOTAL value Select item 4. CLEAR G.TOTAL and press SET Key. G.TOTAL value is deleted exit ADD STATE menu.
  • Page 19 MAGNER100 USER MANUAL Change Currency When change Currency, machine asks to save current ADD TOTAL x. For example, after counting EURO in ADD Mode, if press CURRENCY Key, ADD STATE menu is shown and asks to save ADD TOTAL x to MEMORY.

  • Page 20: Operation Mode

    MAGNER100 USER MANUAL 5. Operation Mode II Operation Mode MIX Mode Count all denomination of selected currency. SP Mode The machine saves denomination information from first inserted note. The machine saves denomination and version information from first inserted SP VERS Mode note.

  • Page 21: Sp Vers Mode

    MAGNER100 USER MANUAL 5-3. SP VERS Mode Press CURRENCY Key and select ( V E R S ) currency which you want to count. Press MODE Key and select SP Mode Press SET Key. B100 The machine sorts out the same denomination and version with first inserted note.

  • Page 22: User Mode

    MAGNER100 USER MANUAL 6. USER Mode Press and hold down MODE Key. U S E R M OD E p 1 /1 ======================================= USER Mode is shown. > > 1 . P R I NT E R S E T : ”N O NE...
  • Page 23 MAGNER100 USER MANUAL 1. BAUD RATE Set up the baud rate between machine and printer. 2.PAPER SIZE Set up the size of printer paper. 3. FONT Set up the font size 4. BLANK OF TAIL User set up the blank of tail.

  • Page 24: Specification

    MAGNER100 USER MANUAL SPECIFICATION ------------------------------------------------------------------ -Technical Specification Available currencies EURO, USD, LOCAL 3.1” Graphic Dimension(mm) 296(W)×325(L)×280(H) Display (192x128 dot) Full Line Image Sensor, Weight Approx. 10 Kg Denomination Detection Color Sensor Countable Notes W: 100 × 180mm UV, FL, MG (Magnetic...

  • Page 25: Error Code List

    MAGNER100 USER MANUAL Error Code List Error Code Description Chain 1 error The gap between two notes is under 100mm. Chain 2 error After note passes counter sensor, note length is over 100mm. JAM 1 error Encoder value isn’t increased although motor turns.

  • Page 26: Maintenance

    MAGNER100 USER MANUAL Maintenance The machine has many sensitive sensors to perform high technology functions, for example counterfeit detection, denominations, etc. We recommend cleaning the machine sensors at least once a week. Refer to following section and clean the machine regularly.
