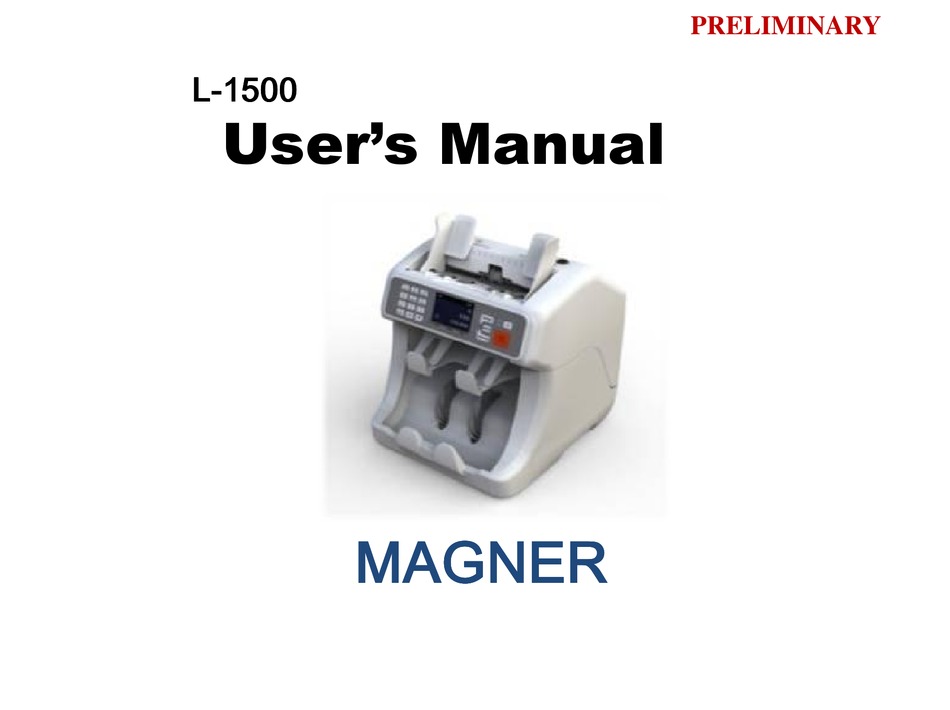

- Page 1 PRELIMINARY L L L L - - - - 1500 1500 1500 1500 User’s Manual MAGNER MAGNER MAGNER MAGNER...
- Page 2 < Contents > 1. Safety Instruction 2. Appearance 3. Structure 4. Display Description 5. Operation Panel 6. Operation 7. Error Code 8. Accessories & Options 9. Specification 10. Sensor Location L-1500 User’s Manual...
- Page 3 Do not operate the machine, if smoke or strange smell is detected from the machine. In this case, please contact your local distributor Always keep clothes, hairs and fingers out of the feed hopper area UV RADIATION!! Eye and skin protection during servicing L-1500 User’s Manual...
- Page 4 Upper Cover Thickness Dial ③ ⑪ Lower Cover Upper Rear Cover ④ ⑫ Carrying Handle Interface Connector ⑤ ⑬ Hopper Inlet ⑥ ⑭ LCD Display Power Switch ⑦ ⑮ Operation Panel Lower Rear Cover ⑧ Cover Open Button L-1500 User’s Manual...
- Page 5 Lift the upper cover a little by left hand and pull the lift lever forward and then fall down the upper cover slowly. Be careful not to pinch your finger. 3) How to open rear cover Hold and lift the lever to open the rear cover. L-1500 User’s Manual...
- Page 6 Sort out the old and new version of specific denomination. Separate front side or rear side of the notes of first inserted FACE note or specific denomination Separate different direction notes of first inserted note or ORIENT specific denomination L-1500 User’s Manual...
- Page 7 CURRENCY Select Currency START/STOP Counting stop or restart. MODE Select Different Operation Mode RED LED Notes on the Rejecter FUNCTION Enter User Mode GREEN LED Notes on the Stacker CLEAR (C) Exit the menu and clear errors. L-1500 User’s Manual...
- Page 8 3) Local Currency Key 3) Local Currency Key Press and hold down Key and select Local mode 4) ERROR Key Press and hold down Key and select ERROR report ERROR It displays the detailed information of Unfit & rejected notes L-1500 User’s Manual...
- Page 9 SAVE It saves the changed setting in memory. 8) BAT Key Press and hold down Key and select BATCH Number It selects Batch number which was selected already (10, 20, 50, 100) by pressing Key each time. L-1500 User’s Manual...
- Page 10 Password is necessary, and strongly recommend to use only with Service Engineer. 11) TECHNICAL Mode Key Press and hold down Key and select TECHNICAL Mode Password is necessary, and strongly recommend to use only with Service Engineer. L-1500 User’s Manual...
- Page 11 3) After software loading successfully, Sensor & Motor 4) If everything is OK, “Test OK” message will show up. function will be checked. However, if error is happened during initializing, the L-1500 User’s Manual related error message will show up.
- Page 12 (Depending on the Currency, this mode may not work) 3) Local Mode Press CURRENCY key and select LC (TL,RUB, GBP, MXN,SAR, INR etc) currency. MODE Press key and select Operation Mode. In this mode, it can recognize and detect Local currency. L-1500 User’s Manual...
- Page 13 It count the all denomination of selected currency. 3) SP Mode (SP- Denomination Mode) Press MODE key and select SP Mode. It sorts out the same denomination as first inserted note or pre-selected denomination by UP[△]/DOWN[▽] Key. L-1500 User’s Manual...
- Page 14 (Depending on the Currency, this mode may not work) 6) FIT Mode (FIT-DEN Mode) MODE Press key and select FIT Mode. It separates Fit notes of all denominations or first inserted note by UP[△]/DOWN[▽] Key. (Depending on the Currency, this mode may not work) L-1500 User’s Manual...
- Page 15 7) OCR Mode: Option Press MODE key and select OCR Mode. It prints out the serial number of all denominations (Depending on the Currency, this mode may not work) The Printing Option is available in User Mode L-1500 User’s Manual...
- Page 16 S e t t h e F i t n e s s l e v e l s e t t i n g ( R e f e r t o t h e d e t a i l s e t t i n g ) C B S t a n d a r d L-1500 User’s Manual...
- Page 17 - The details setting for the Highlight can be changed by pressing UP[△]/DOWN[▽] Key - If Printer is OFF, the BAUD RATE & PAPER SIZE & PRINTING No will be inactivated - Press Key to save the data before exit the setting. SAVE L-1500 User’s Manual...
- Page 18 E X I T [ C ] E X I T [ C ] - The details setting for the Highlight can be changed by pressing UP[△]/DOWN[▽] Key - Press Key to save the data before exit the setting. SAVE L-1500 User’s Manual...
- Page 19 E X I T [ C ] S A V E [ K E Y 8 ] S A V E [ K E Y 8 ] E X I T [ C ] E X I T [ C ] L-1500 User’s Manual...
- Page 20 M G E r r o r - R e s t a r t c o u n t i n g o p e r a t i o n 1 0 I R I R E r r o r L-1500 User’s Manual...
- Page 21 Time1 & Time2 Processing Time Delay Error - Check the condition of rejected note Reco Recognition Error - Check the gap between Feed and Reverse Roller - Clean CIS Sensor Image T1 Image Error Image R3 & R4 L-1500 User’s Manual...
- Page 22 Stacker Capacity 300 sheets Power AC 110~240V 50/60 Hz Power Consume 110W Dimensions 284(W) x 315(D) x 277(H) mm Weight Approx. 14kg LCD Size 3.2 Inch TFT Color Touch Screen Mode Fit , Mix, SP, Orient, Face, Count L-1500 User’s Manual...
- Page 23 ⑧ Counter Sensor 2 (CS2 L/R) ⑨ Selector Sensor (SSL) ⑩ Upper Position Sensor (UPS) ⑪ Lower Position Sensor (LPS) ⑫ Reject Sensor ⑬ Stacker Sensor SENC & MENC (Encoder Sensor) Others LIMIT SW (Cover Open Switch) L-1500 User’s Manual...
- Page 24 MAGNER MAGNER MAGNER MAGNER Magner International Corp 2901 SW 149th Ave, Suite 100, Miramar, Florida 33027 Tel: +1-954-342-6000 Fax: +1-954-342-6000 http://magnerinternational.com/ email: magner@magnerinternational.com L-1500 User’s Manual...
