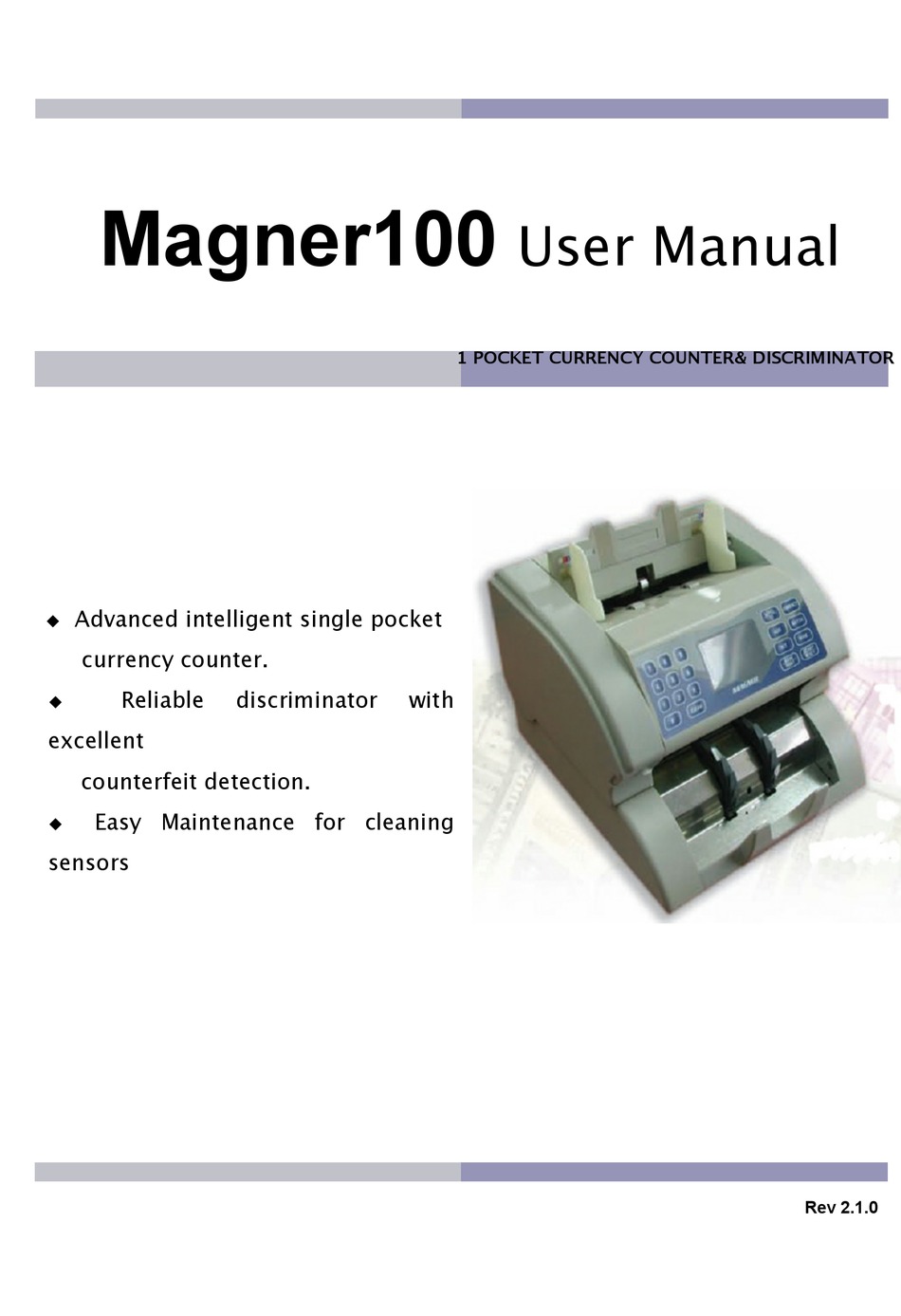

- Page 1 Magner100 User Manual 1 POCKET CURRENCY COUNTER& DISCRIMINATOR Advanced intelligent single pocket currency counter. Reliable discriminator with excellent counterfeit detection. Easy Maintenance for cleaning sensors Rev 2.1.0...
-
Page 2: Table Of Contents
MAGNER100 USER MANUAL - Contents – Introduce ..........................3 For Safety Use ........................Appearance ........................1. Display Description …………………………………………………………………………11 2. Key Operation Description …………………………………………………………………12 3. Basic Operation . COUNT Mode 14 . EURO Mode 17 . USD Mode 17 . Local Currencies Mode 18 4. -
Page 3: Introduce
MAGNER100 USER MANUAL Introduce Thanks for your purchase of iSNIPER. iSNIPER is the advanced intelligent single pocket currency counter. Depending on the variant used, it can be used to check banknotes for authenticity, denomination, value, to sort and account these accordingly and to count banknotes. -
Page 4: Display Description
MAGNER100 USER MANUAL Hopper Guide Hopper LCD Display Release Button Stacker Pocket Gap Adjustment Knob External Display Port Serial Port USB Port Power Switch Power Connector 1. Display Description Operation Mode Counterfeit Detection Magner INT Note number of Stacker... -
Page 5: Key Operation Description
MAGNER100 USER MANUAL 2. Key Operation Description Number Key for selecting Batch number and Shortcut Key. Clear Batch number to 0. Counterfeit detection function key (Operation Mode) & double detection function key (COUNT Mode) Select Currency Select ADD Mode and G.TOTAL Mode. -
Page 6: Count Mode
MAGNER100 USER MANUAL 3. Basic Mode Preparing Banknotes COUNT Mode Make sure that there are not paper clips, rubber bands, staples or similar objects of the banknotes. Display shows as below. Press CURRENCY Key and Before inserting the banknotes, sort out any banknotes with following select COUNT Mode. -
Page 7: Euro Mode
MAGNER100 USER MANUAL UV Level In COUNT Mode, machine has adjusted UV Level function for detecting white paper. User can select 1~8 levels. According to thickness of notes, UV Level is different. ● Before counting, please check and adjust Level first. -
Page 8: Usd Mode
MAGNER100 USER MANUAL Display shows as below. Press CURRENCY Key and select EURO Mode. Press MODE Key and select € Operation Mode. In this Mode, the machine can recognize and detect EURO currency. USD Mode Display shows as below. -
Page 9: Batch Mode
MAGNER100 USER MANUAL Display shows as below. Press CURRENCY Key and select local currency. Press MODE Key and select Operation Mode. Note! Some local currencies may be counted only. 4. Operation I 4-1. BATCH Mode Magner INT... -
Page 10: Cf Mode
MAGNER100 USER MANUAL If press BATCH Key, user can select Display shows as below. batch number which is registered already. (5, 10, 20, 50, 100) When user wants to select special batch number, please use Number Key (0~9). If press CLEAR Key, batch number €... - Page 11 MAGNER100 USER MANUAL When count notes, display shows the current Display shows as below. counted information € € When count notes again, display shows the current counted information € € When remove the notes from stacker, display shows added information between current and ahead counted notes.
- Page 12 MAGNER100 USER MANUAL In ADD Mode, press ADD Key again shortly. VERIFY function is activated and display shows as below. € When VERIFY function is turned on, you can count new notes which is no relation with ADD value.
-
Page 13: Grand Total Mode
MAGNER100 USER MANUAL 4-4. GRAND TOTAL Mode Magner INT... - Page 14 MAGNER100 USER MANUAL When press and hold down ADD Key, you can enter ADD or G.TOTAL Mode. Press MODE Key to select item. Select 3. G.TOTAL and press SET Key € to enter. When count notes, display shows the current Display shows as below.
-
Page 15: Operation Mode
MAGNER100 USER MANUAL Press and hold down START Key, you can save the value to MEMORY or G.TOTAL. Delete GRAND TOTAL value € Select item 4. CLEAR G.TOTAL and press SET Key. G.TOTAL value is deleted exit ADD STATE menu. -
Page 16: Sp Vers Mode
MAGNER100 USER MANUAL Press CURRENCY Key and select currency which you want to count. € Press MODE Key and select SP Mode The machine sorts out the same denomination with first inserted note. 5-3. SP VERS Mode Press CURRENCY Key and select currency which you want to count. -
Page 17: User Mode
MAGNER100 USER MANUAL 6. USER Mode Press and hold down MODE Key. USER Mode is shown. Move cursor to upside or downside. Enter item. Move cursor to left or right and go to next page. Go to higher mode or exit User Mode... - Page 18 MAGNER100 USER MANUAL 1. PRINTER SET 1. BAUD RATE Set up the baud rate between machine and printer. 2.PAPER SIZE Set up the size of printer paper. 3. FONT Set up the font size 4. BLANK OF TAIL User set up the blank of tail.
-
Page 19: Specification
MAGNER100 USER MANUAL If select OFF, machine start to count banknotes when operator press START Key. 9. POWER SAVE If user does not use the machine during regular time, the machine enters screen save state SPECIFICATION ------------------------------------------------------------------ -Technical Specification Available currencies EURO, USD, LOCAL 3.1”... -
Page 20: Error Code List
MAGNER100 USER MANUAL Stacker Capacity 200 notes Feed System Roller friction type Power Supply 100 ~ 240V AC, 50/60Hz Power consumption Approx. 140 Watts -Features Local Currency Max. 4 currency IR Detection Full Line IR CIS Sensor External Display LCD type for customer Bill Printout With RS232C Interface for PC and external printer. - Page 21 MAGNER100 USER MANUAL IR 2 error IR error IR 3 error IR error Color 1 error Color error Color 2 error Color error UV 1 error UV error UV 2 error UV error MG 1 error MG error MG 2 error...
-
Page 22: Maintenance
MAGNER100 USER MANUAL Maintenance The machine has many sensitive sensors to perform high technology functions, for example counterfeit detection, denominations, etc. Users are recommended to clean the machine sensors at least once a day. Refer to following section and clean the machine regularly. - Page 23 MAGNER100 USER MANUAL Magner100 User Manual Magner INT...
