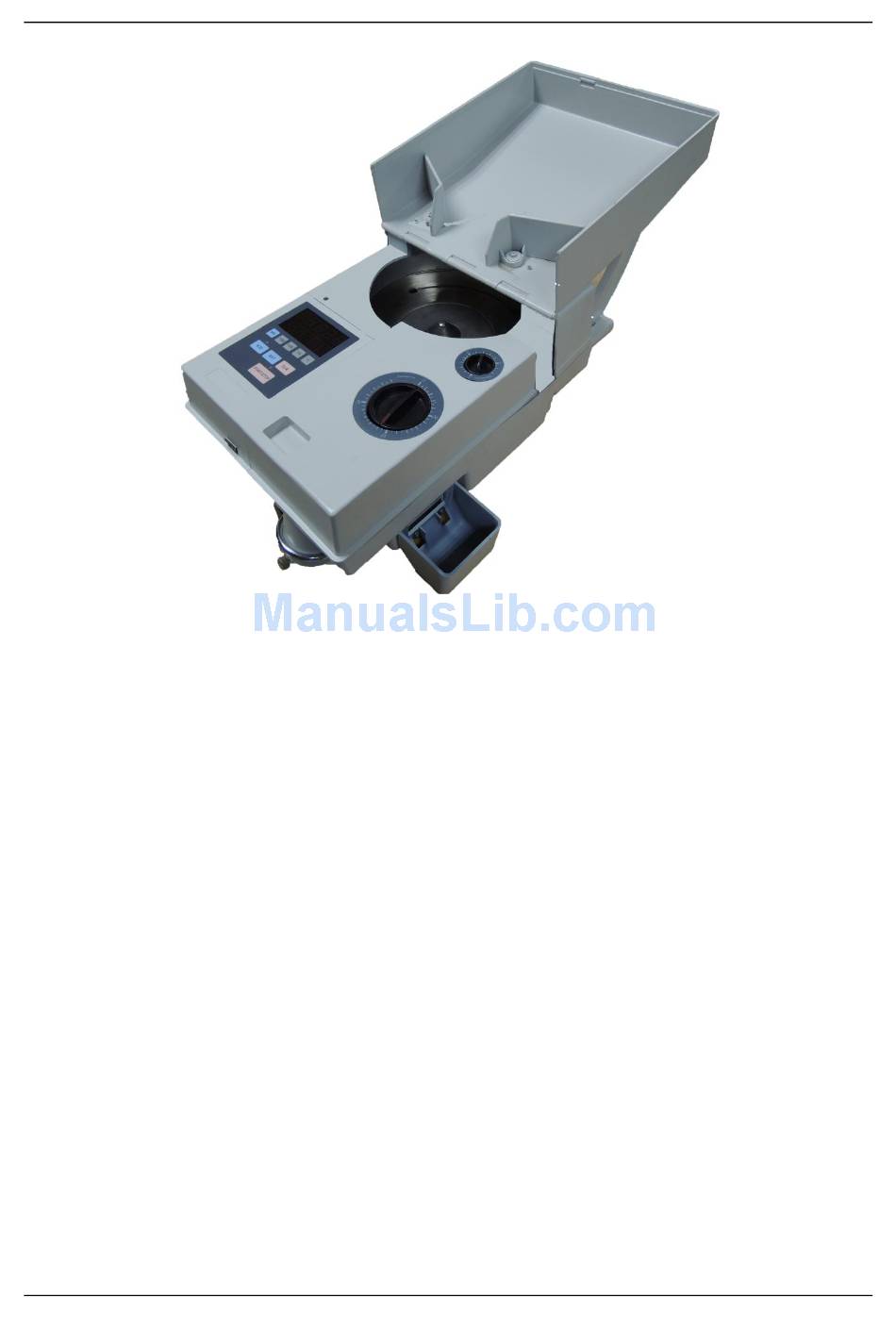

- Page 1 Magner 915 User Manual Coin Counter MAGNER 915 User Manual Magner 915 User Manual...
-
Page 2: Table Of Contents
Magner 915 User Manual Contents 1. General Information ..................1 2. Diagram ......................1 3. Technical specification .................. 2 4. Panel ......................2 5. Operation ...................... 4 5.1 General counting mode ................4 5.2 Accumulative counting mode ................ 5 6. Coin passage adjustment ................6 6.1 Adjustment for known size coins .............. -
Page 3: General Information
Magner 915 User Manual General Information MAGNER 915 coin counter is an economical but reliable coin counting machine. This machine has universal dial to count most country coins. It also has general counting, accumulative counting and batch counting modes which can fit small and medium coin handling customers’... -
Page 4: Technical Specification
Magner 915 User Manual Technical specification Mode name MAGNER 915 Hopper capacity 1000~2000pcs Counting speed about 1500pcs/min Countable coin diameter 14~33mm Countable coin thickness 1.0~3.4mm Display 5 digits LED Batch number range 1~9999 Dimension 380*230*180mm Net weight 8.8kg Power consumption Power requirements 220V±10%, 50Hz or 110V±10%, 60Hz... - Page 5 Magner 915 User Manual Keys Functions Press this key to START/STOP the machine to count. When it “START/STOP” starts, the red indicator n the upper side will be lighted on. Press this key to turn ON/OFF Accumulative counting mode. “ADD”...
-
Page 6: Operation
Magner 915 User Manual Operation 5.1 General counting mode Step 1: Open the hopper cover and support it with left and right support bracket as per the picture 5.1-1. Pic. 5.1-1 Step 2: Turn on the power switch, the machine LED display will show “0”. Now it is in general counting mode. -
Page 7: Accumulative Counting Mode
Magner 915 User Manual Step 5: Fix one piece of cotton bag on the coin outlet and also install the rejected coin box on the right side as per picture 5.1-5. Pic. 5.1-5 Step 6: Put the coins on the hopper cover, then press START/STOP key to count，the machine will stop... -
Page 8: Coin Passage Adjustment
Magner 915 User Manual Pic. 5.2 At the same time, when ADD function is off, if hold on pressing MR key, the LED display will show the total counted number after the machine is turned on; When ADD function is on, hold on pressing MR key will get the previous total counted number before the machine is turned 5.3 Batch counting mode... -
Page 9: Adjustment For Unknown Size Coins
Magner 915 User Manual 6.2 Adjustment for unknown size coins If you do not know the coin’s diameter or thickness size in millimeters, you can do the following way to adjust the machine. 1. Remove the right side cover, shown as Pic.6.2-1 Pic.6.2-1... -
Page 10: Counting Sequence For Mixed Coins
Magner 915 User Manual 3. Lift the coin feeding part assembly, put the coin under diameter adjusting assembly passage, make sure it has width difference of 0.2~0.3mm between coin and passage. Pic.6.2-3 6.3 Counting sequence for mixed coins If there are mixed coins on the hopper, you need to count the coins from biggest diameter to smallest size sequence. - Page 11 Magner 915 User Manual (2) Lift the coin feeding passage assembly part; Pic.6.4-2 (3) Lose the thickness adjusting knob assembly screw to pull the whole assembly part out, and then take out the jammed coins. (4)After taking out the jammed coins, install back the thickness adjusting knob assembly part.
-
Page 12: Daily Maintenance
Magner 915 User Manual 7. Daily maintenance · Be sure to turn the main power off before attempting daily maintenance. · Clean the coin runway and the counting sensor at least once a day with a brush. · Check whether the feed belt is dirty or worn. If it is dirty, clean it by using a piece of soft cloth saturated with denatured alcohol. -
Page 13: Accessory List
Magner 915 User Manual 9. Accessory list Description Notes Brush Screwdriver Cross type Power cord Belt Fuse User manual Cotton bag ※Specifications are subject to change without prior notice.※...
