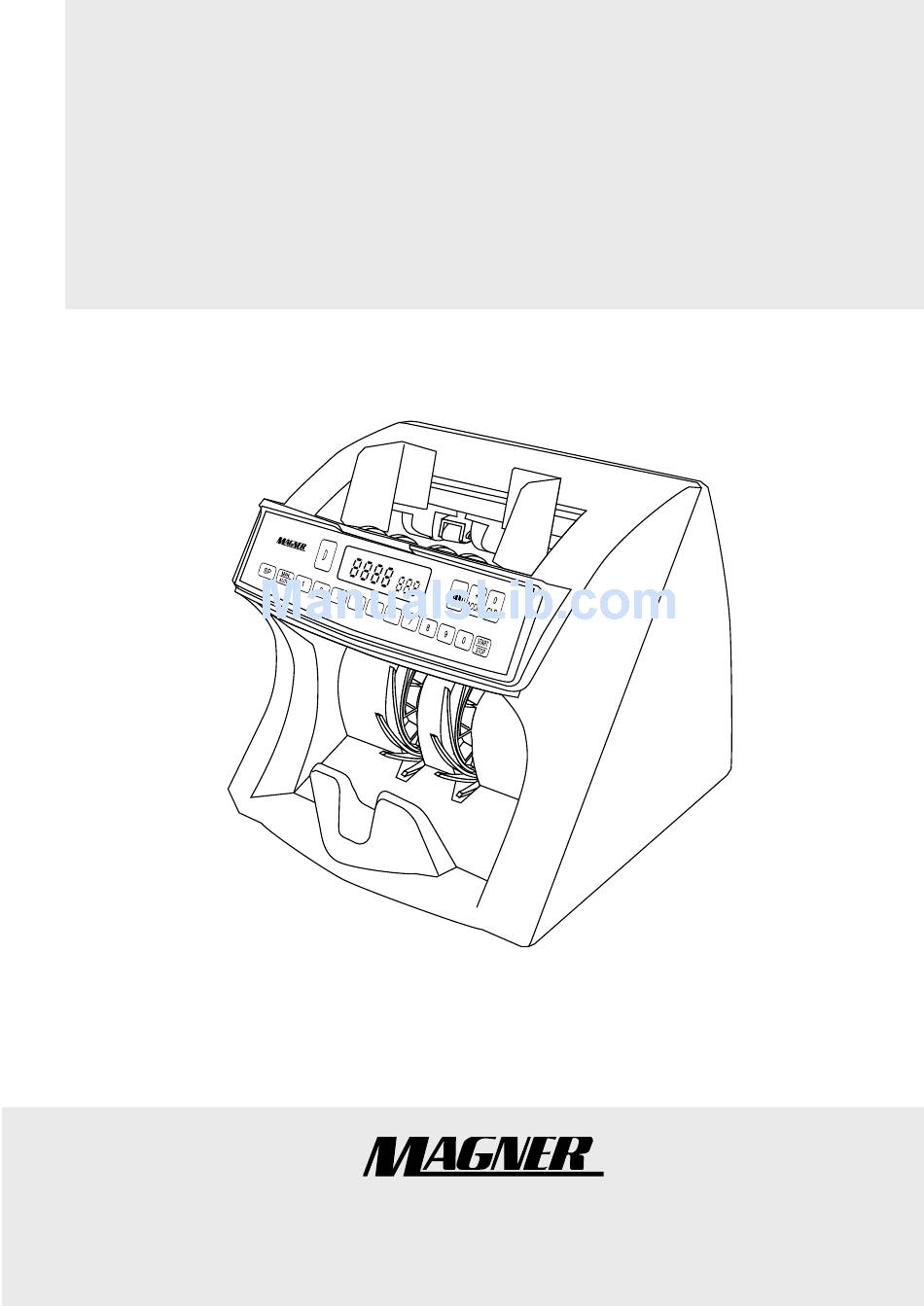

- Page 1 Magner 35-2003/35-3 Series Currency Counter Operator's Manual...
-
Page 3: Table Of Contents
Currency Counter experts to develop a machine that is as compact as possible yet fast and extremely accurate. This instruction sheet for the MAGNER 35-2003 / 35-3 will provide the essential information to operate the MAGNER 35-2003 / 35-3 Currency Counter. -
Page 4: Safety Instructions
I. Safety Instructions. WARNING The currency counter automatically starts operating in certain circumstances. Consequently, it is important to always follow these precautions: 1. Do not wear loose clothing or jewelr y while operating the currency counter. 2. Make sure that your hair does not touch the currency counter. 3. -
Page 5: Installation
Magner 35-2003 / 35-3 Series II. Installation. Unpacking After unpacking the currency counter, store the box and packing materials for future shipping. Failure to ship the currency counter in the original box and packing will void the warranty. Installation 1. Select an appropriate workspace. Make sure that the work surface is flat and level, away from bright sunlight, and as free of dust, dirt and smoke as possible. -
Page 6: Parts Description
III. Parts Description. ACCM MAN. START AUTO STOP Figure 1 : Sheet key Size Detection Key (35-2003 only) Speed Selection Key Manual/Auto Start Key MAN. AUTO Numeric Keys Start/Stop Key Clear Key START STOP Accumulation Key Density Key ACCM LCD Display (4-digit/Total Display + 3 digit/Batch Display) Note Guides Hopper Sensor Sheet Key... - Page 7 Magner 35-2003 / 35-3 Series Figure 3 : Count Sensor Figure 4 : Note Jam Release Lever Thickness Adjustment Dial Power Switch Voltage Selection Switch Fuse Interface Connector (RS-232C / Option) AC Input Receptacle External Display Connector (Option) Figure 5 : Rear view...
-
Page 8: Function Of Parts
IV. Function of Parts. 1. Sheet Key and Function of each key Size Detection Key (35-2003 only) This function is available with the mode 35-2003. - Press key. "D" appearing on the display indicates that this function is on. - The counting speed is automatically set at SPEED - 2 when this function is in use. - Page 9 Magner 35-2003 / 35-3 Series Speed Selection Key - Three counting speeds are available on this machine: SP 1: Counts approximately 600 notes per minute. SP 2: Counts approximately 1,200 notes per minute. SP 3: Counts approximately 1,500 notes per minute.
- Page 10 To set a batch: - Touch the desired number using the numeric key. - A 3-digit display indicates the preset batch number. - The machine is now ready to count in the preset batch mode. To clear the current preset batch number and batch setting: - Press key until the 3-digit display indicates "0".
- Page 11 Magner 35-2003 / 35-3 Series LEVEL 2: More sensitive than LEVEL 3 LEVEL 3: More sensitive than LEVEL 4 LEVEL 4: Default level from the factory LEVEL 5: The machine accepts any density of notes. When level 5 is in use, in the display will flash.
- Page 12 - Two stacker wheels ensure neat stacking of notes at all times. 5. Note Jam Release Lever This lever is used to release the note(s) jammed inside the currency counter. 6.Thickness Adjustment Dial - This dial is used for adjusting the gap between the feeding and separating rollers so that only one note may pass through at a time.
-
Page 13: Operating Procedure
Magner 35-2003 / 35-3 Series V. Operating Procedure For trouble-free operation, perform the following steps in the order given. 1. Prepare the currency A. Remove and discard clips, rubber bands and tags from the notes to be counted. B. Fan each group of notes before counting as shown in Figure6, and remove... -
Page 14: Vi.troubleshooting
to-count mode. - If a “Sensor Error Code” (see page 10) appears on the display instead of “0”, take corrective actions in accordance with the instructions on page 12. 3. Adjust the thickness adjustment Dial The thickness adjustment dial is set at 5 as the standard setting. - For new(thinner) notes, adjust to a lower number: 4, 3, 2 and 1 - For used(thicker) notes, adjust to a higher number. -
Page 15: Error Codes
Magner 35-2003 / 35-3 Series VII. Error Codes When an error occurs, the machine immediately stops and produces an electric “beep” while the display alternately flashes the error code and count figure. The note count for the batch in which the error occurred may be inaccurate. -
Page 16: Cleaning Jams Manually
3. Operation Fault Fault Corrective Actions: Currency counter 1. Make sure that the currency counter is does not power up plugged into a wall outlet and that the when machine is power cord is plugged into the back of turned on. the machine. -
Page 17: Preventive Maintenance
Magner 35-2003 / 35-3 Series IX. Preventive Maintenance Preventive maintenance, requiring partial disassembly by service technicians, is recommended every 180 days. With heavy usage(more than one shift per day, continuous service, etc.), this service will be needed more often. To make sure the operation is as trouble-free as possible, perform the following steps: <Daily>... -
Page 18: Specifications
X. Specifications Counting Speed: Approximately 600 / 1200 / 1500 notes per minute Display Type: LCD: 4-digit total display / 3-digit batch display Document Size Limits: 110x185 ~ 50x85 (mm) 4.33x7.28 ~ 1.97x3.35(inches) Input Hopper Capacity: Approximately 300 circulated notes Output Stacker Capacity: Approximately 200 circulated notes Batching:... - Page 19 Magner 35-2003 / 35-3 Series...
